iPhone 12 Pro Wasserschaden reparieren: Schritt-für-Schritt-Reparatur der Hauptplatine

Water damage is one of the most common and frustrating issues faced by iPhone users—especially when the phone won’t power on. In this detailed repair guide, we’ll show you how to diagnose and fix an iPhone 12 Pro water damage and remains unresponsive, even after 20 days. You’ll learn how to disassemble the device, locate the short-circuited component, and restore full functionality by removing a damaged capacitor on the motherboard.

Whether you’re a repair technician, shop owner, or an experienced DIYer, this article offers expert-level insights and real repair case experience to help you successfully revive a water-damaged iPhone 12 Pro.



Step-by-Step Repair Guide: iPhone 12 Pro Water Damage Repair

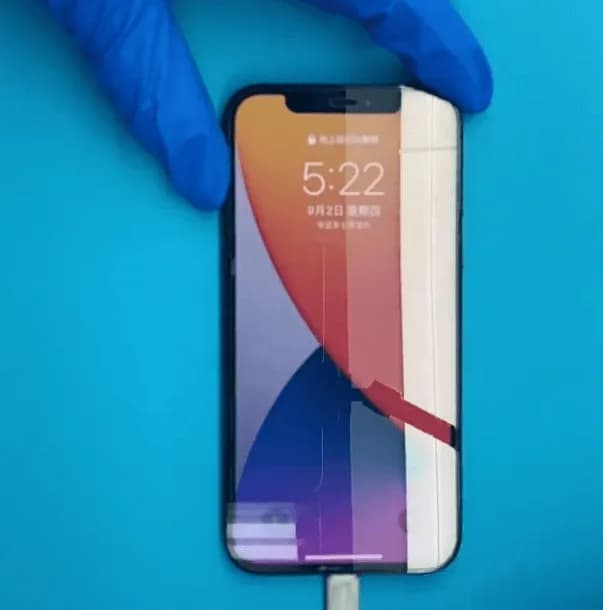

1. Initial Inspection & Disassembly

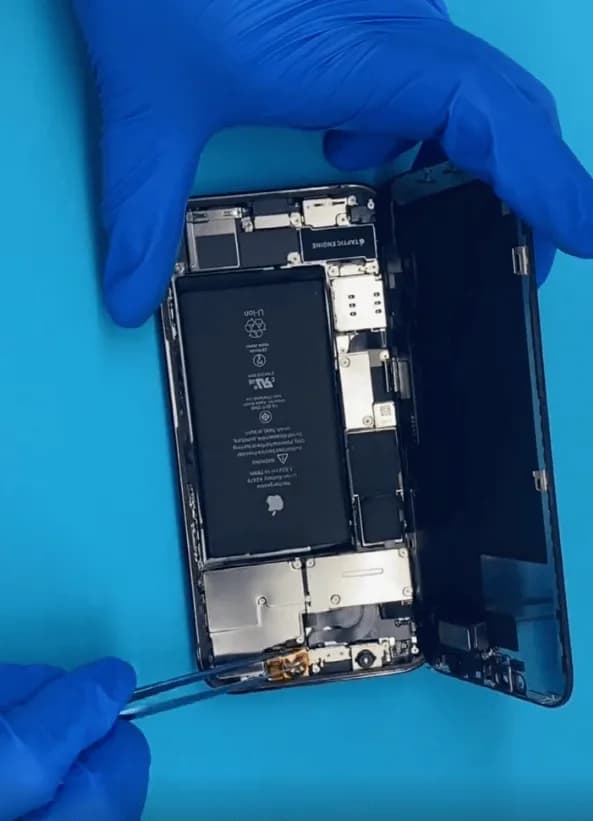

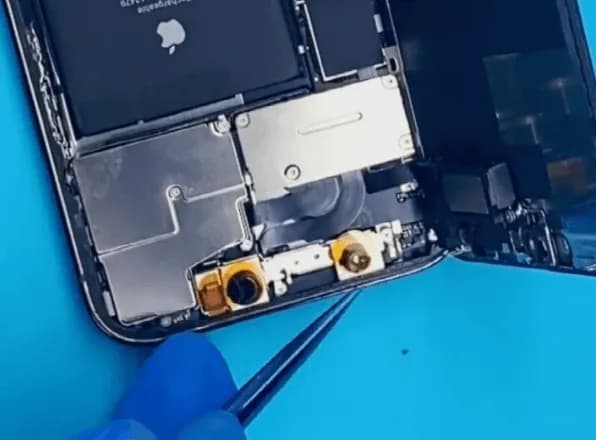

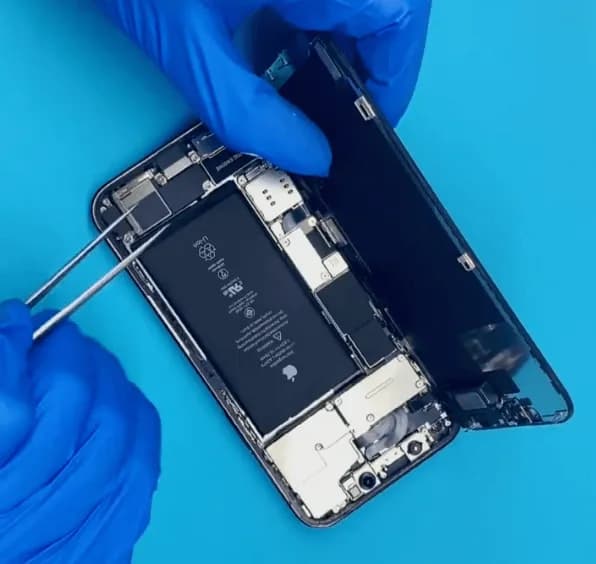

Disassembly steps:

2. Water Damage Indicators

• iPhones have Liquid Contact Indicators (LCIs) that turn red when exposed to water.
  • ✅ Indicator near the SIM card slot: Normal (white).
  • ❌ Indicator near the earpiece speaker: Turned red.
• Schlussfolgerung: Water likely entered the motherboard through the earpiece speaker mesh.

3. Screen & Motherboard Check

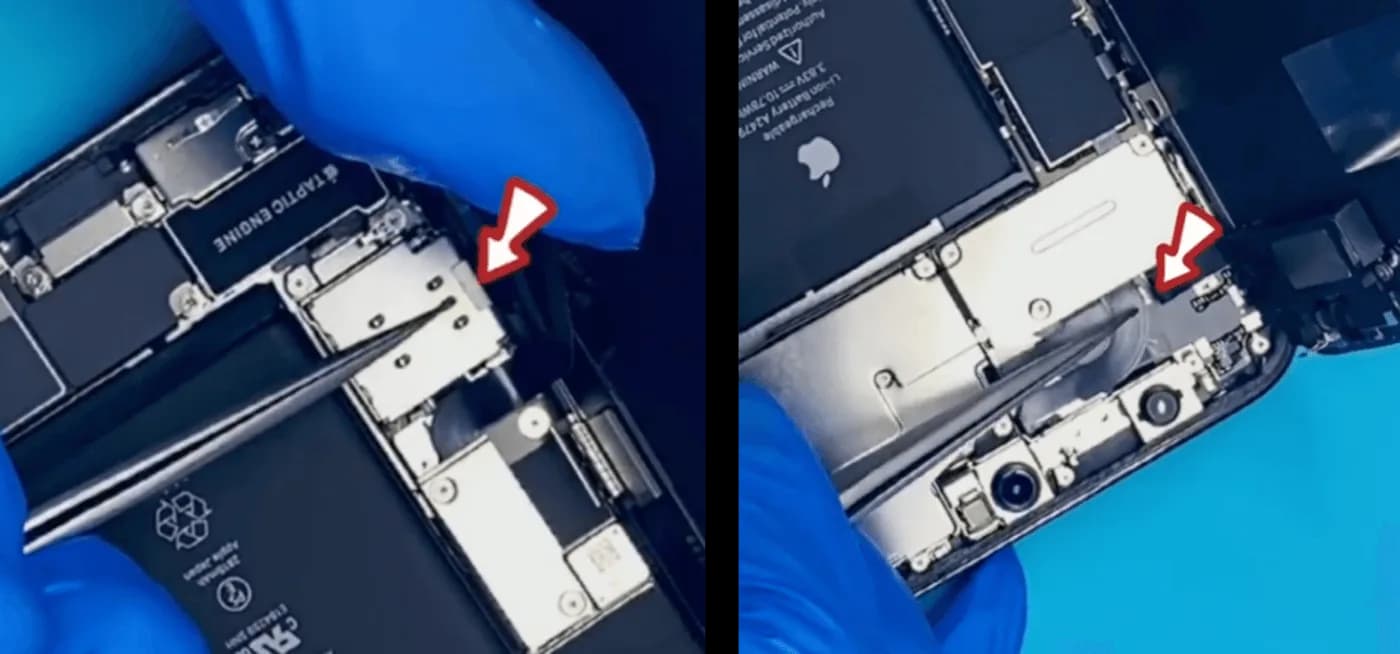

• Protect sensitive modules like the front camera, infrared cameraund Punktprojektor.

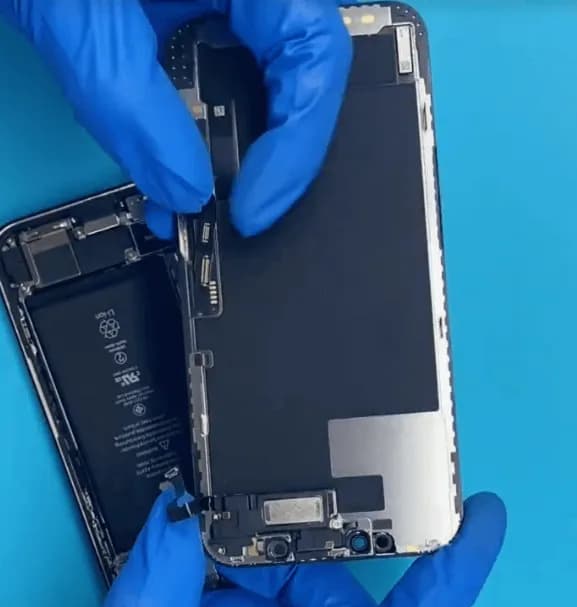

• Remove the screen — no visible damage observed.
• Take out the motherboard and connect it to a DC-Stromversorgung for testing.

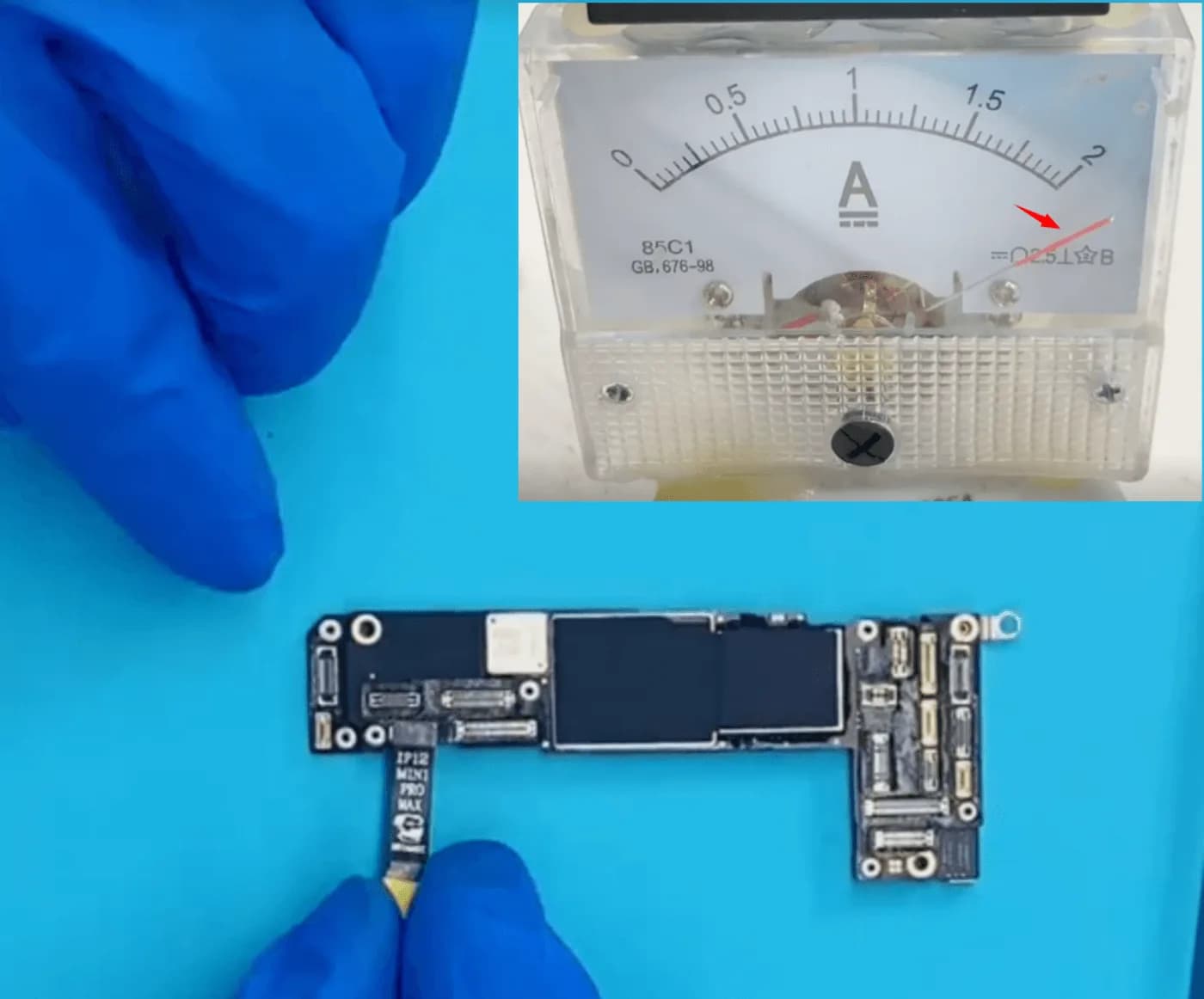

  • Result: High current draw immediately after connection, indicating a Kurzschluss.

4. Identifying the Faulty Component

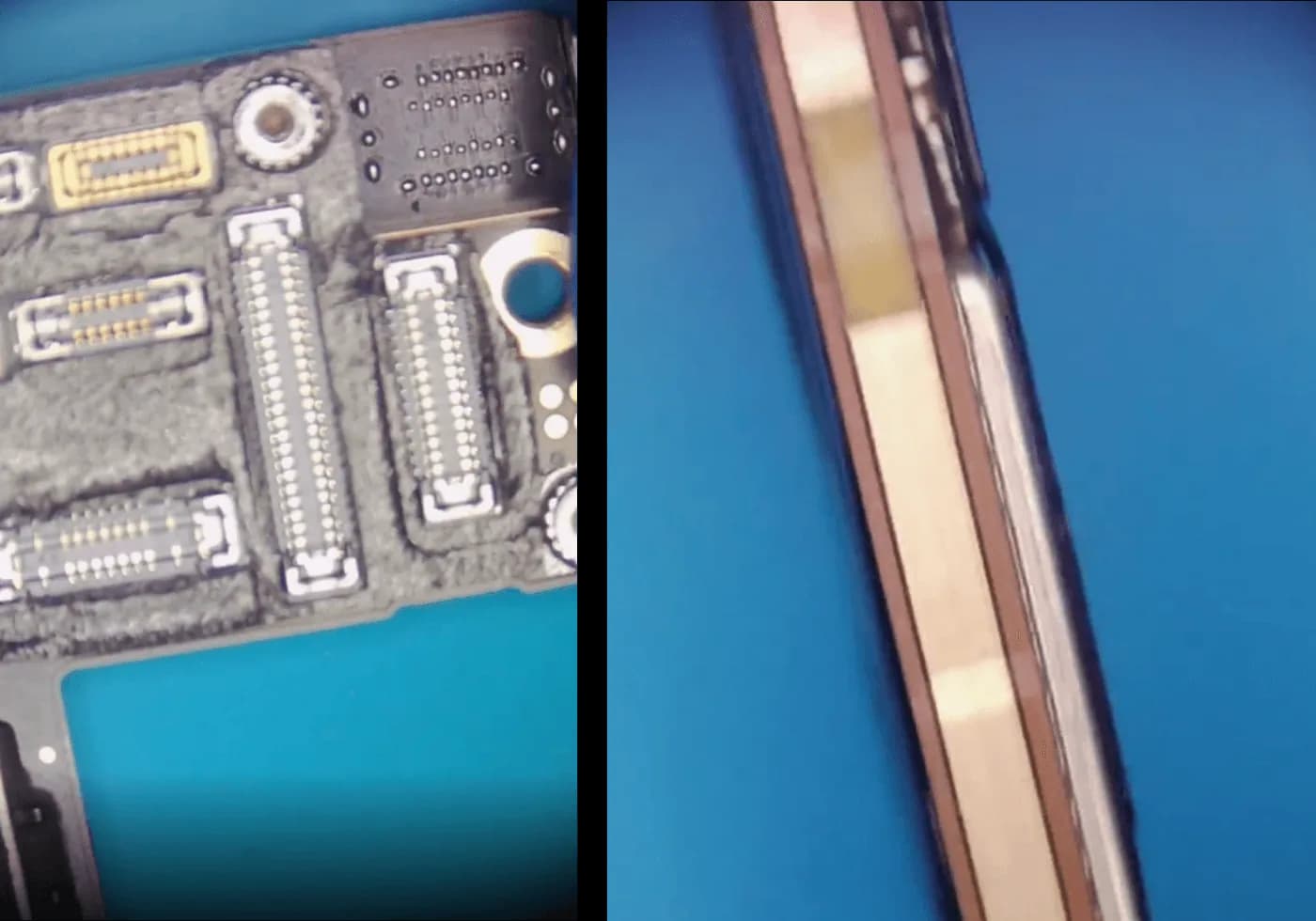

• Visual inspection under a microscope: No physical damage or corrosion detected.
• Diode mode test reveals:
  • PP_VDD_MAIN line is shorted to ground.

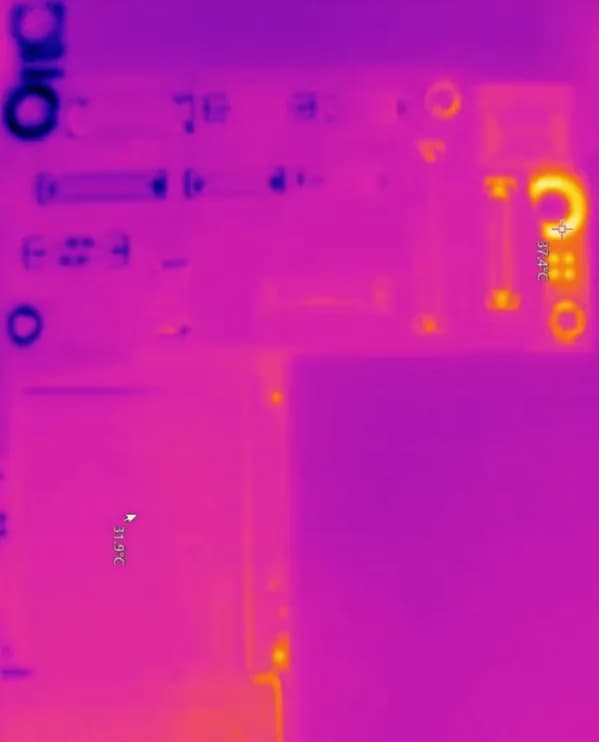

• Verwenden Sie eine thermal imaging camera while connected to DC power:
  • No heating component detected — the short must be internal.

5. Motherboard Separation & Deep Inspection

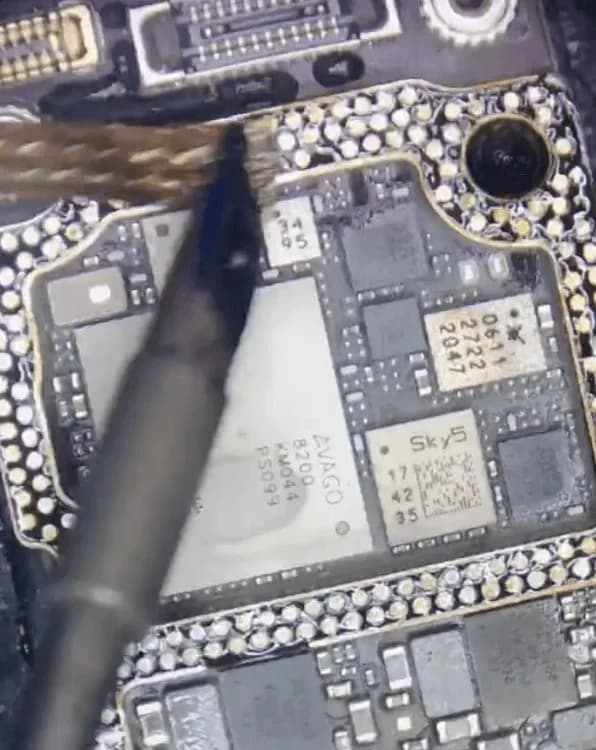

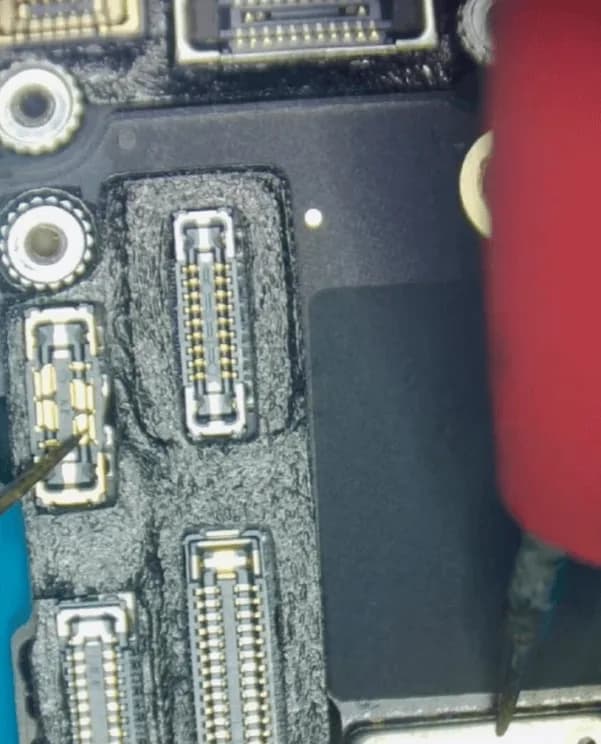

• Verwenden Sie eine Heizplattform und Heißluftpistole to separate the sandwiched motherboard layers.

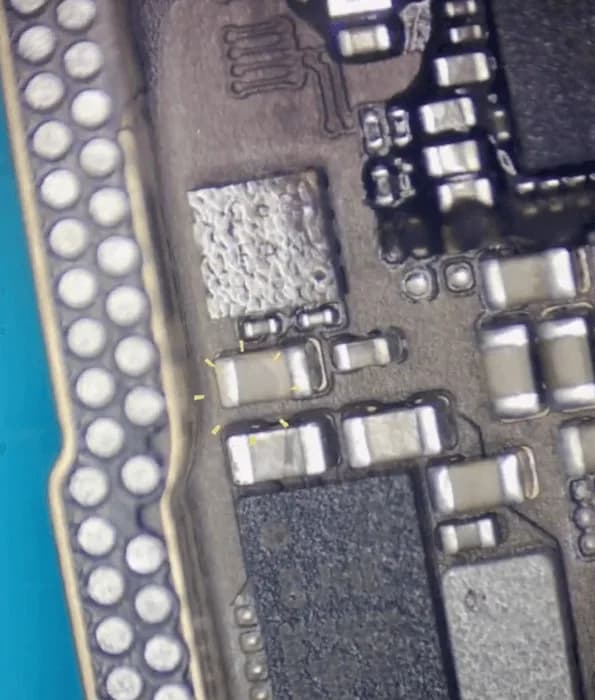

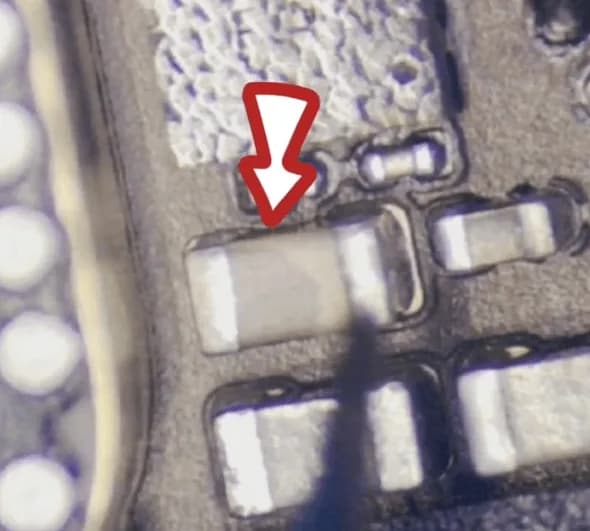

• Upon inspection, a capacitor labeled C413_E appears discolored — likely damaged.
  • Based on repair experience, this indicates internal capacitor failure.

6. Remove the Faulty Capacitor

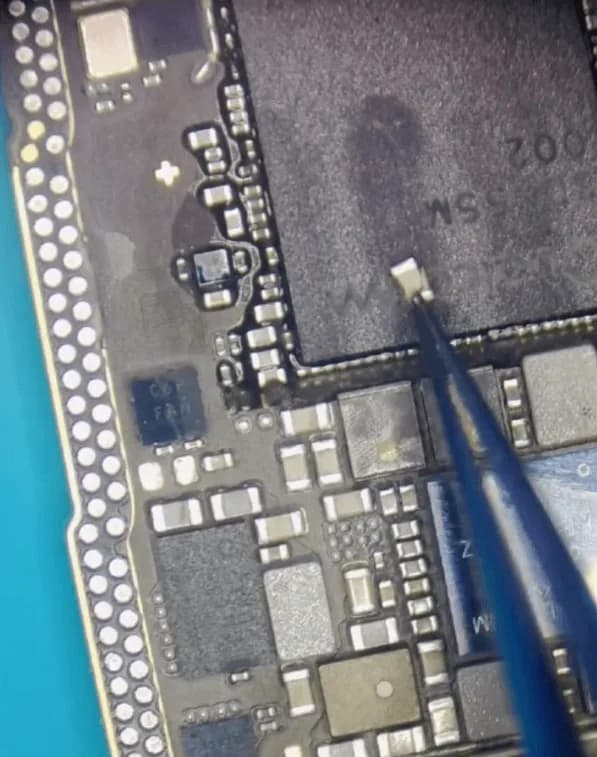

• Desolder and remove C413_E without replacing it:
  • Reason:
    • It’s located near the middle layer — re-soldering could damage nearby connections.
    • Die Basisband-CPU is adjacent — excessive heat could cause baseband failure.
    • PP_VDD_MAIN has multiple filter capacitors — removing one won’t affect performance.
• Re-check the PP_VDD_MAIN line:
  • ✅ Short circuit resolved.

7. Reassemble and Test

Werkzeuge und Teileliste

🛠️ Verwendete Werkzeuge:

• Heating platform (70°C)
• Heißluftpistole
• Mikroskop
• DC-Stromversorgungsmaschine
• Wärmebildkamera
• Plastic pry card
• Schraubendreher-Set
• Multimeter (with diode mode)

🔩 Parts/Components Involved:

• iPhone 12 Pro Hauptplatine
• Kondensator C413_E (removed, not replaced)

Technical Terms Explained

• PP_VDD_MAIN: The main power rail distributing voltage to critical components on the motherboard.
• DC-Stromversorgung Maschine: A diagnostic tool that simulates the iPhone battery, helping identify short circuits based on current flow.
• Thermal Imaging Camera: Detects abnormal heat to help find shorted components.
• C413_E: A small filter capacitor used to smooth voltage spikes — one of many on the PP_VDD_MAIN line.
• Diode Mode Testing: A multimeter function that checks for short circuits or open circuits by measuring voltage drop across components.

Schlussfolgerung:

Water damage doesn’t always mean your iPhone is beyond saving. With the right tools and expertise, even a non-booting iPhone 12 Pro can be revived. In this case, the culprit was a shorted capacitor (C413_E) on the PP_VDD_MAIN line, which was successfully removed to restore full functionality.

If you’re a technician or DIYer, always proceed carefully when dealing with internal motherboard repairs. And for those looking to enhance their skills, REWA Academy’s iPhone 12 Pro Online Course is a great place to deepen your understanding.
