ITiPhone 13 Pro front glass replacement may daunting, but with the right steps and tools, it’s surprisingly straightforward. In this guide, we’ll walk you through the entire process, from carefully removing the front glass to ensuring a bubble-free lamination. Whether you’re a seasoned technician or a curious DIY enthusiast, you’ll find that refurbishing this model is easier than previous versions.
Testing the Screen Function

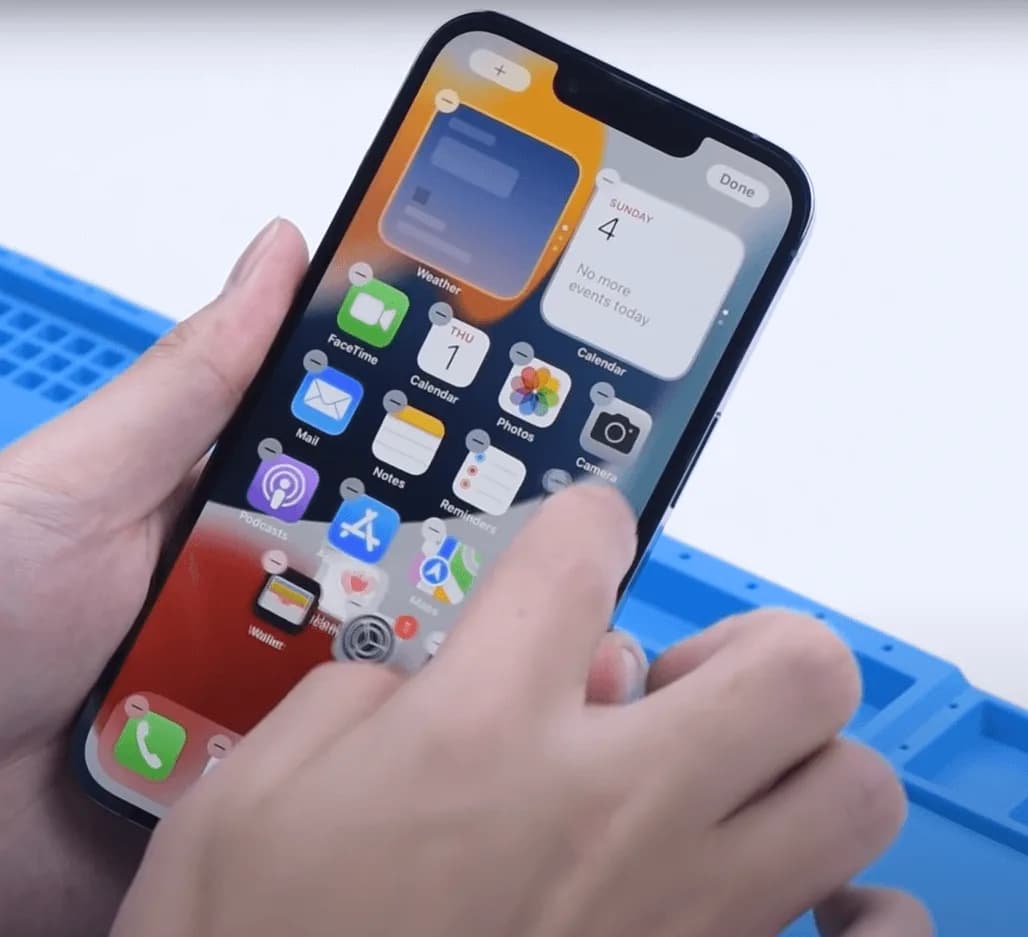

Before refurbishing, ensure that both the display and touch functions are working properly. This initial test helps confirm that the LCD and touch digitizer are intact.
Front Glass Separation
Heizung:
- Use the suction button to secure the screen tightly.
- Place the screen on the Desktop Laminating Machine set at 100℃ to heat it.
Demontage:

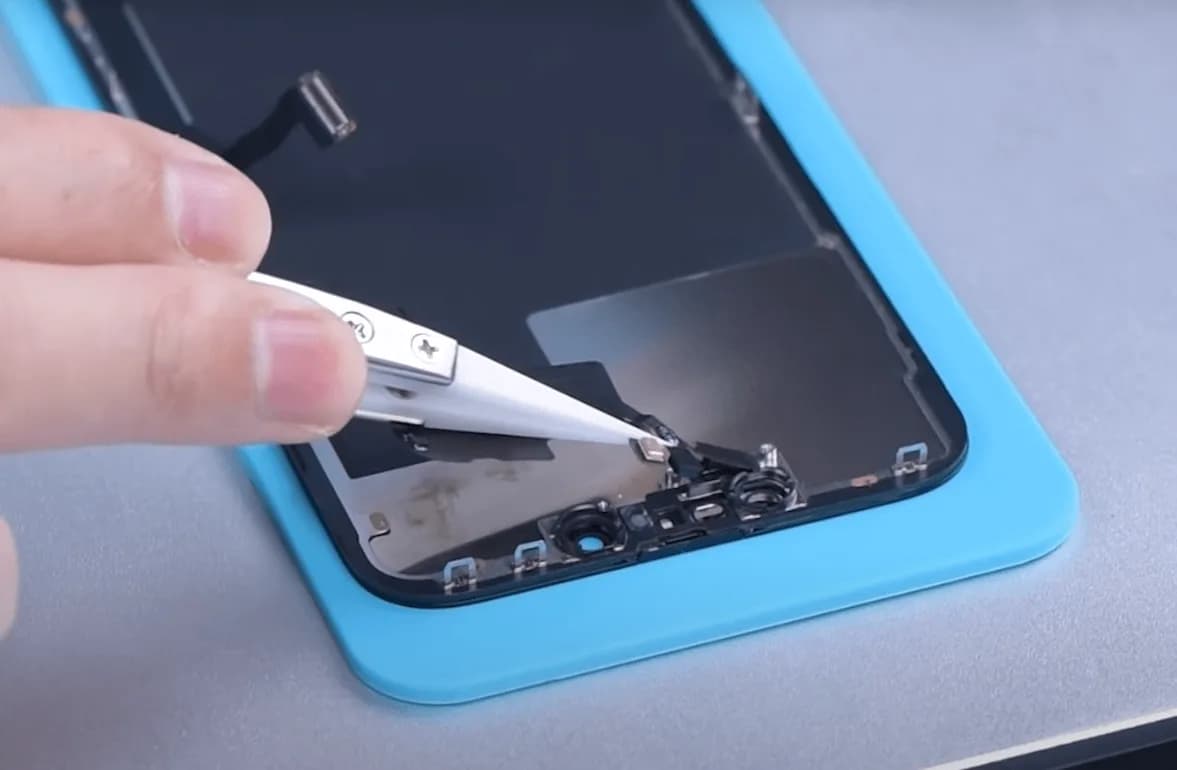

- Remove the screws on the screen with a screwdriver.
- Carefully remove the sensing module using some alcohol.
- Rotate the screen, add some alcohol, and remove the earpiece holder with a razor blade.
Glass Removal:
- Continue heating the screen at 100℃ for an additional minute.
- Apply alcohol to the edges of the screen.

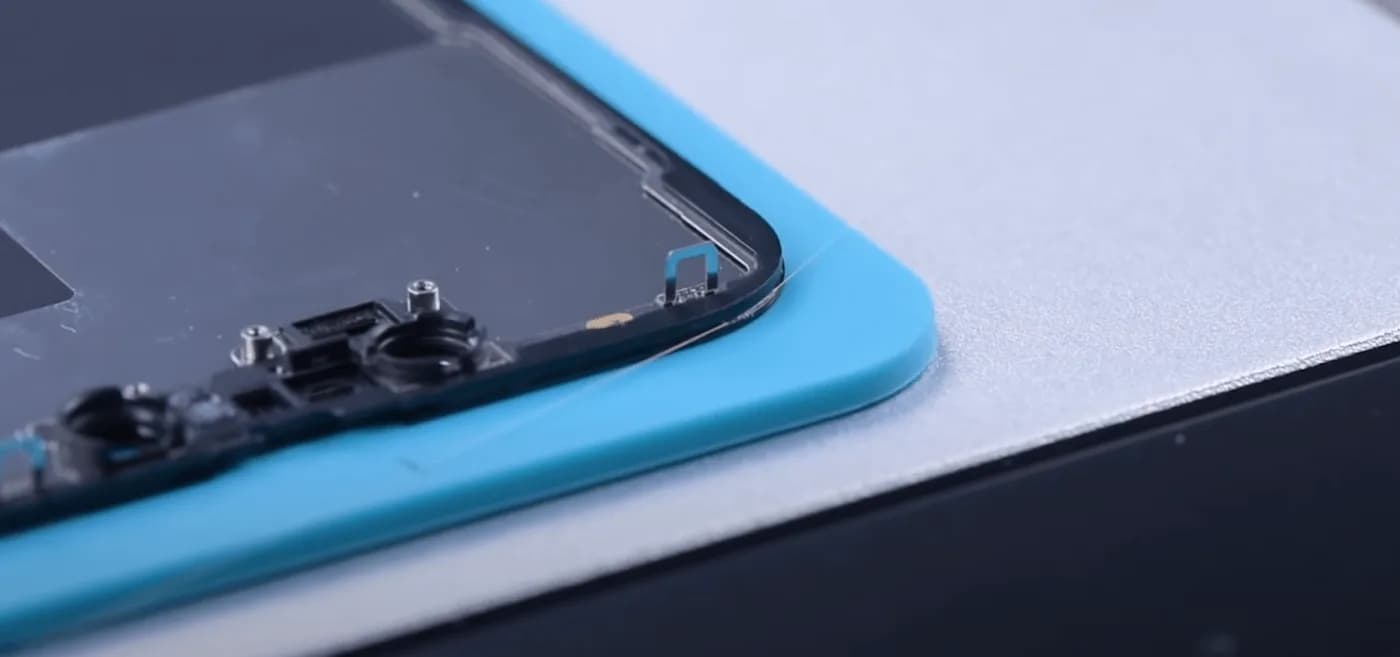

- Insert the golden cutting wire into the gap and gently move it back and forth to separate the glass from the screen. Add more alcohol around the earpiece frame as needed.
Adhesive Removal:

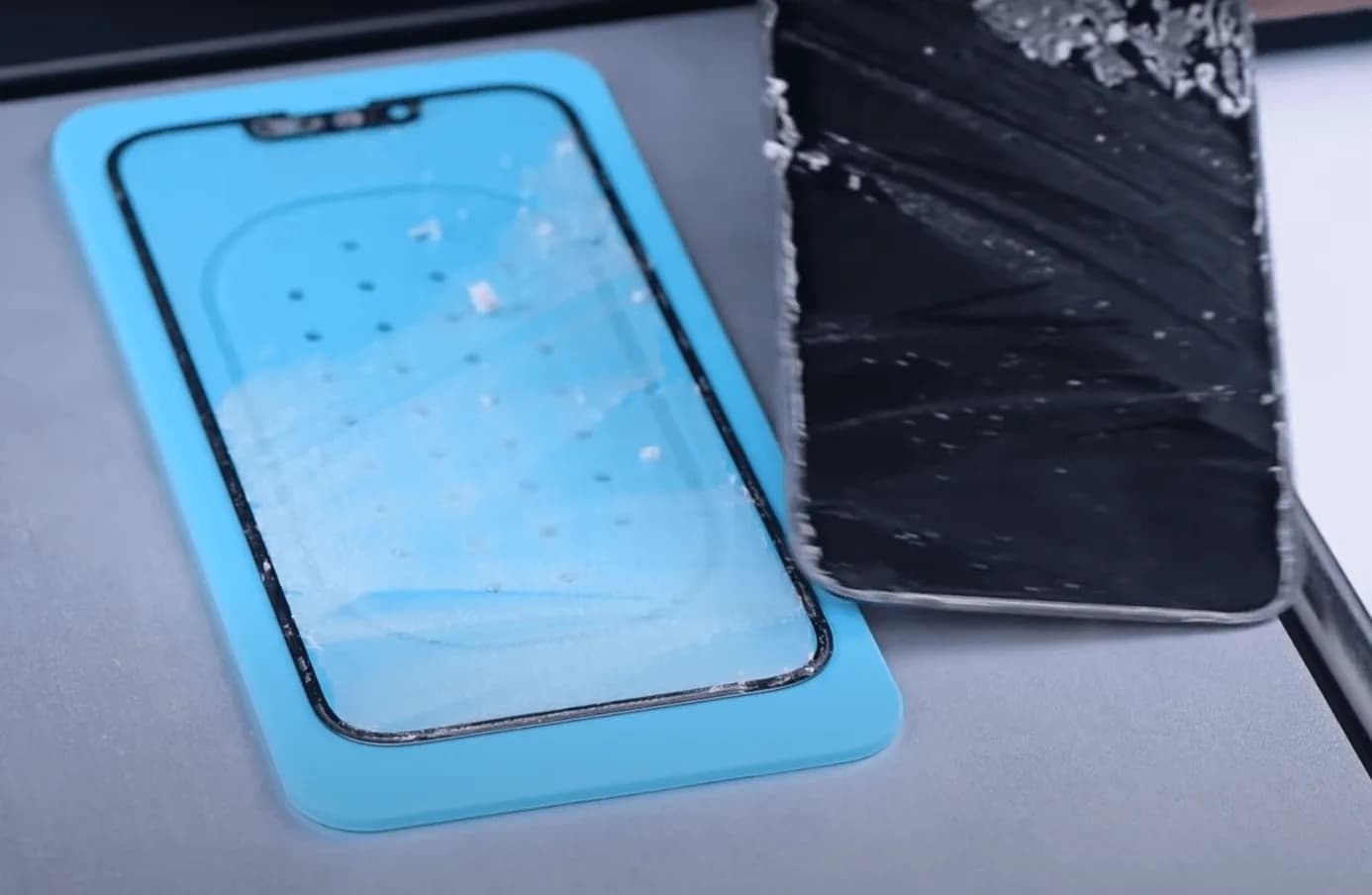

- Once the front glass is removed, place the screen in the lamination mold.

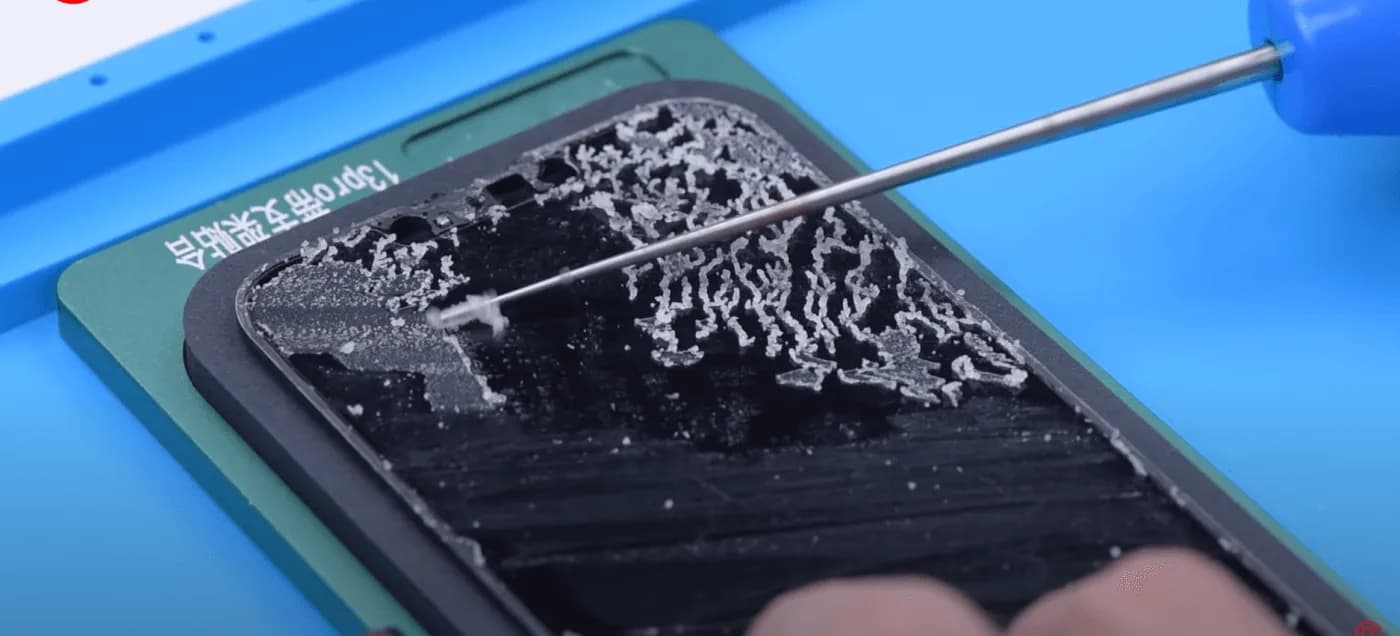

- Remove the OCA adhesive using the mini electronic roller.
- Clean the residual OCA glue with N-hexane.
Testing After Glass Removal

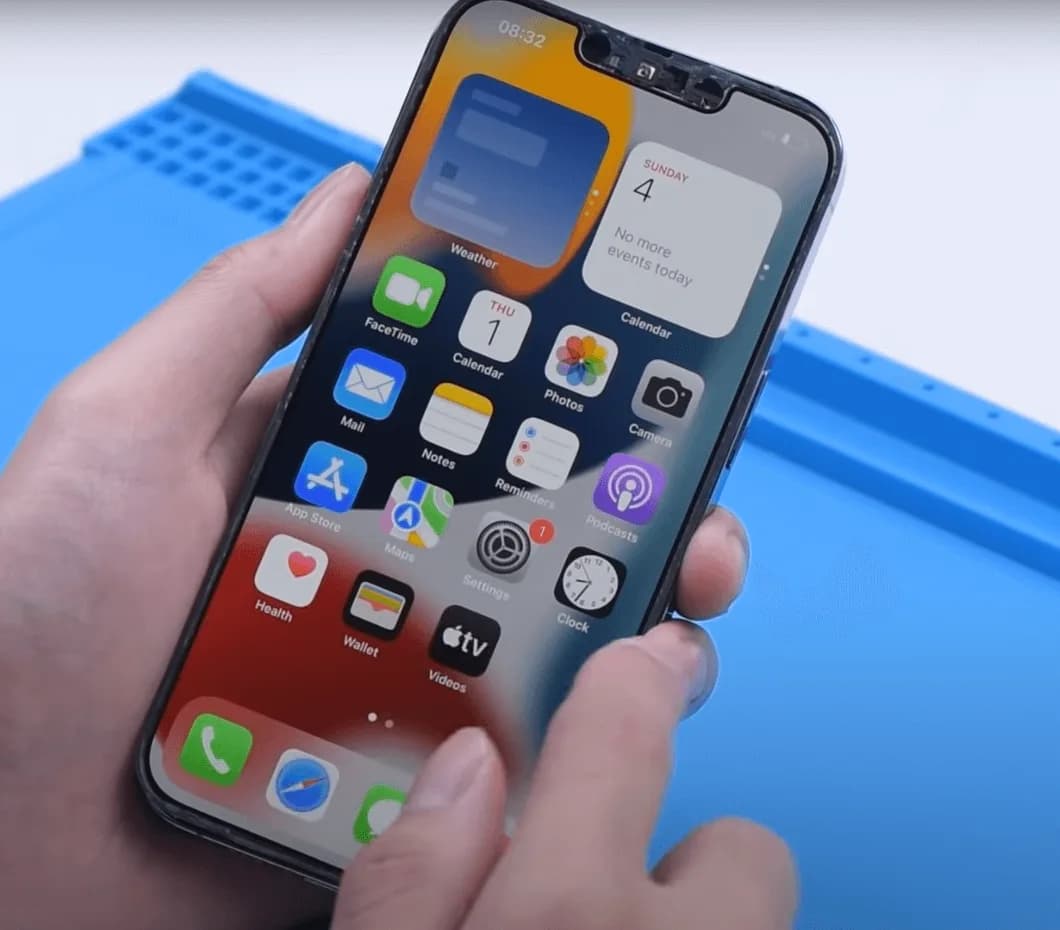

Install the OLED screen to test the display and touch functions again. This ensures that the screen has not been damaged during the glass removal process.
Installing New Glass
Preparation:

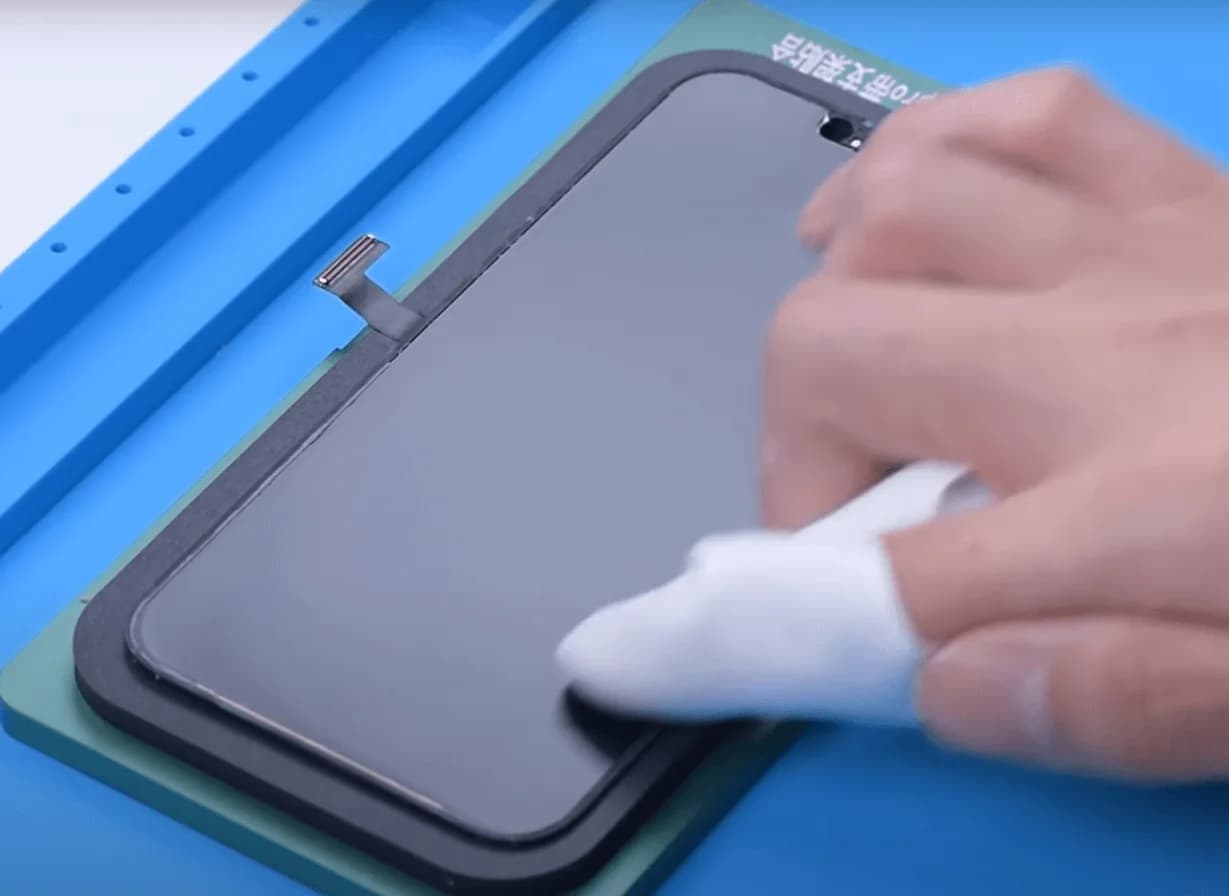

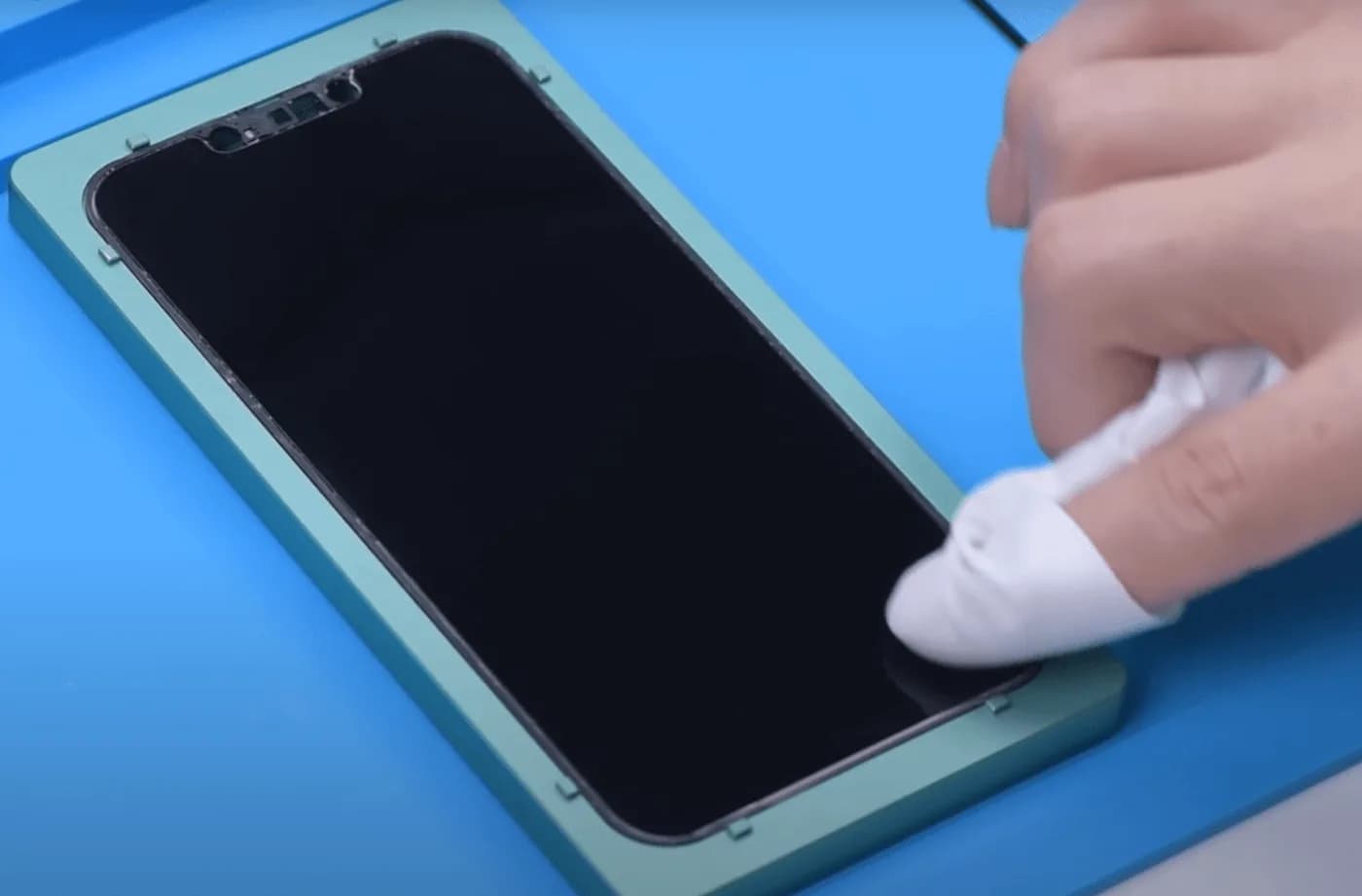

- Align the OLED screen in the specified mold and clean it with a dust-free wiper.

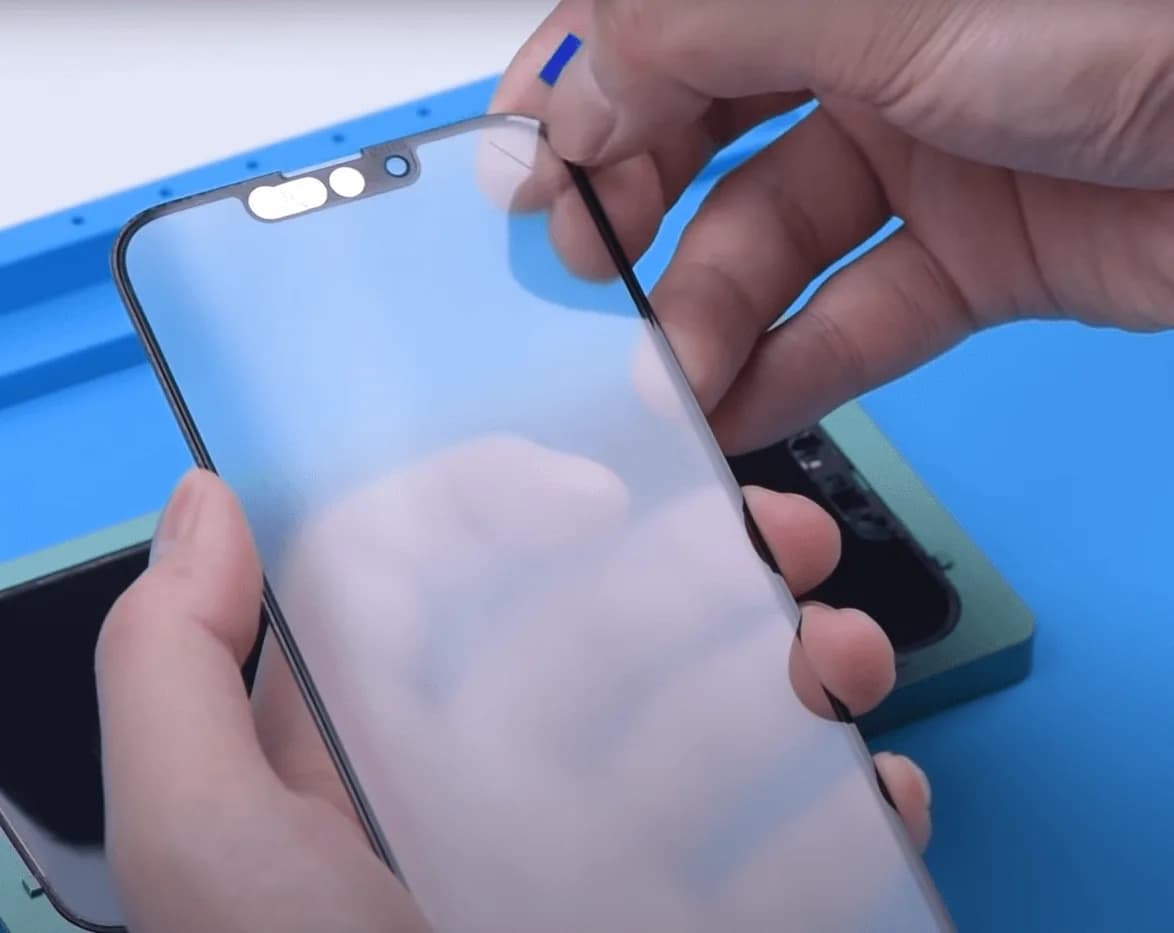

- Apply an easy-tear sticker at the top-right corner of the new glass cover and peel off the protective film.
Alignment and Positioning:

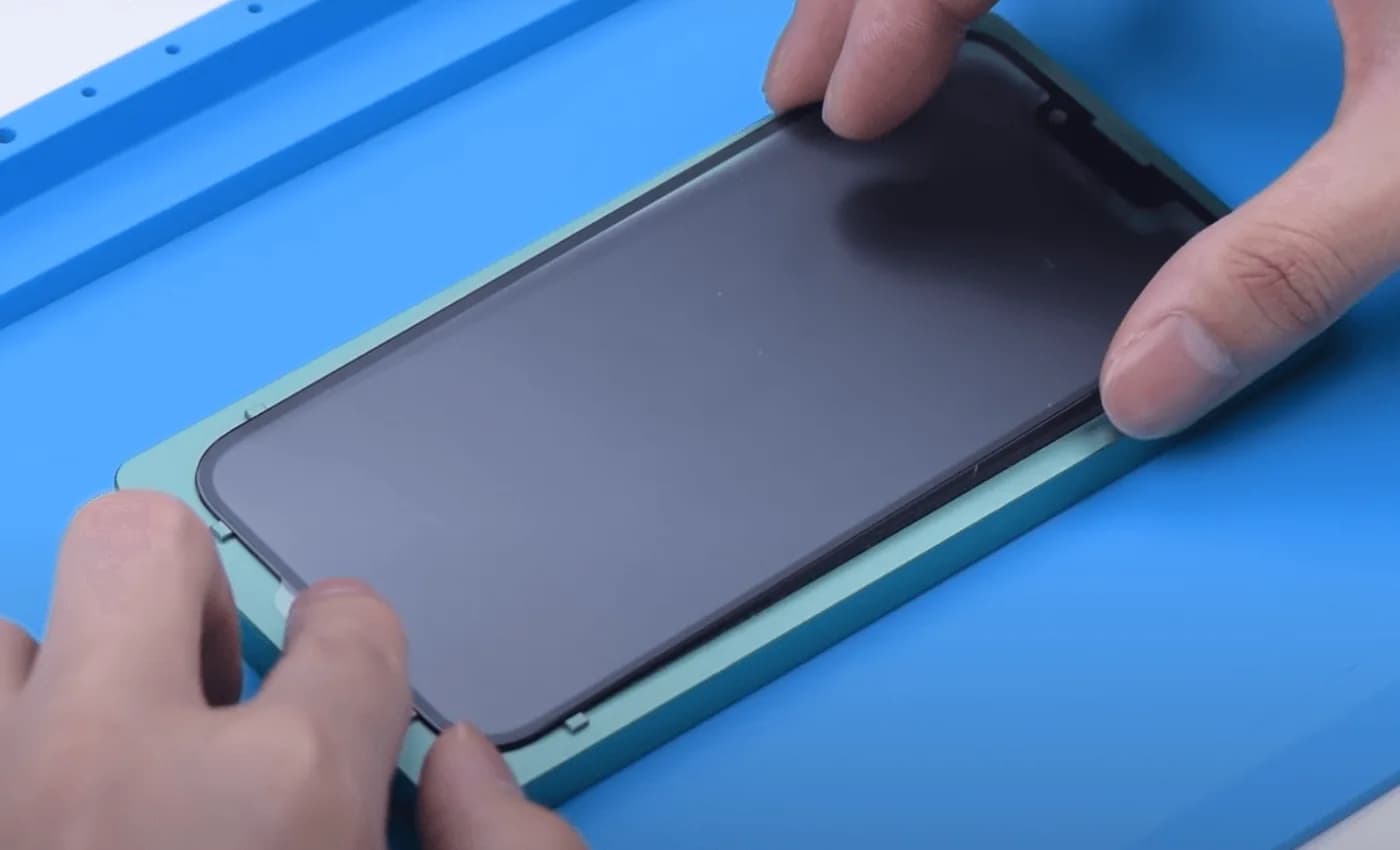

- Align the new front glass with the OLED screen on the mold.

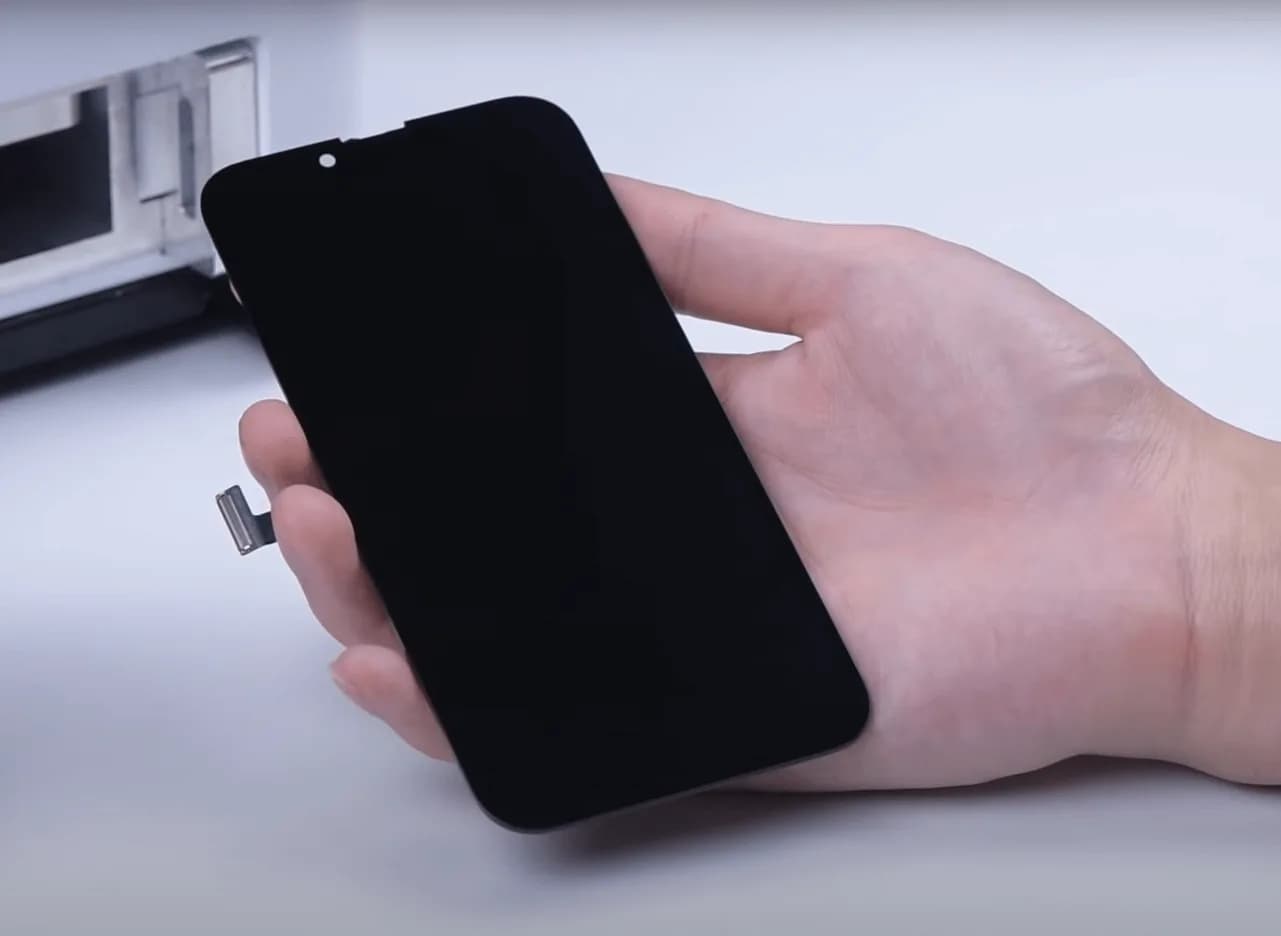

- Place the glass in position and remove the display upside down.
Kaschierung:

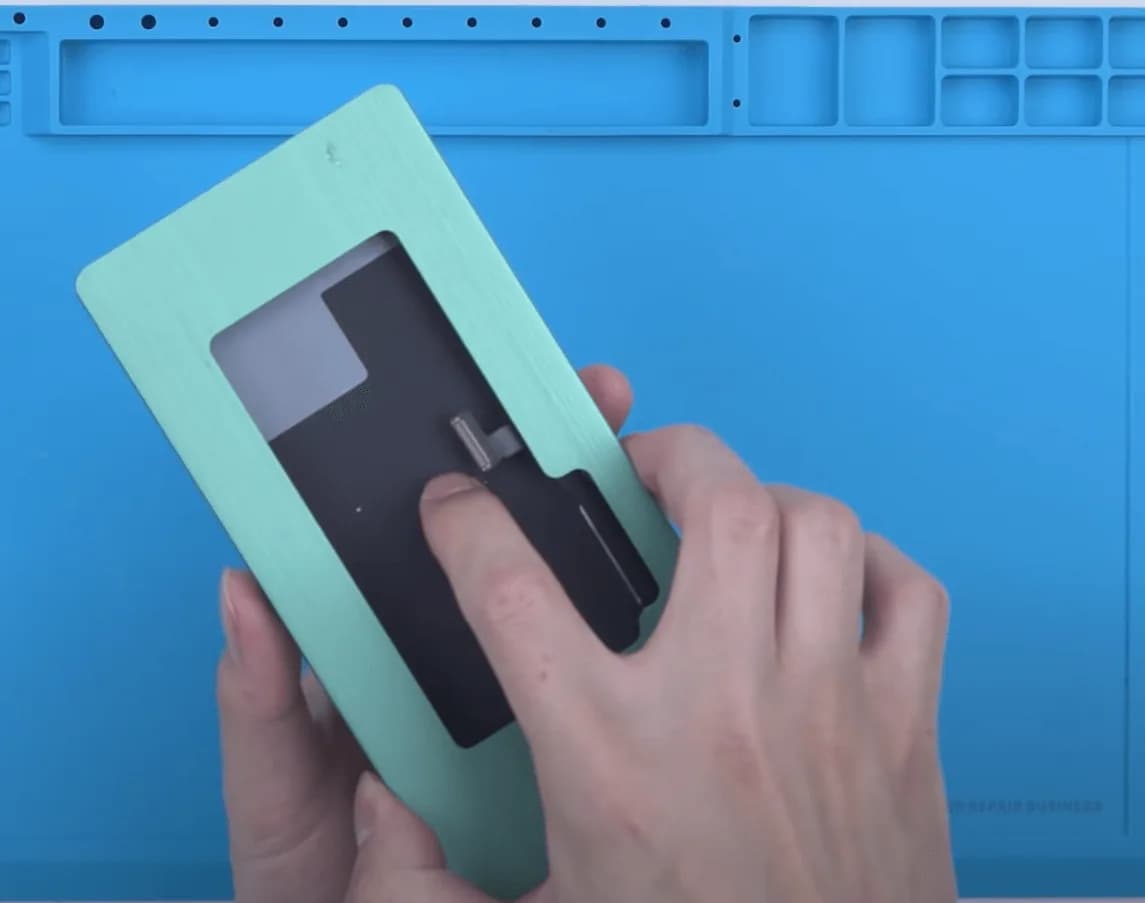

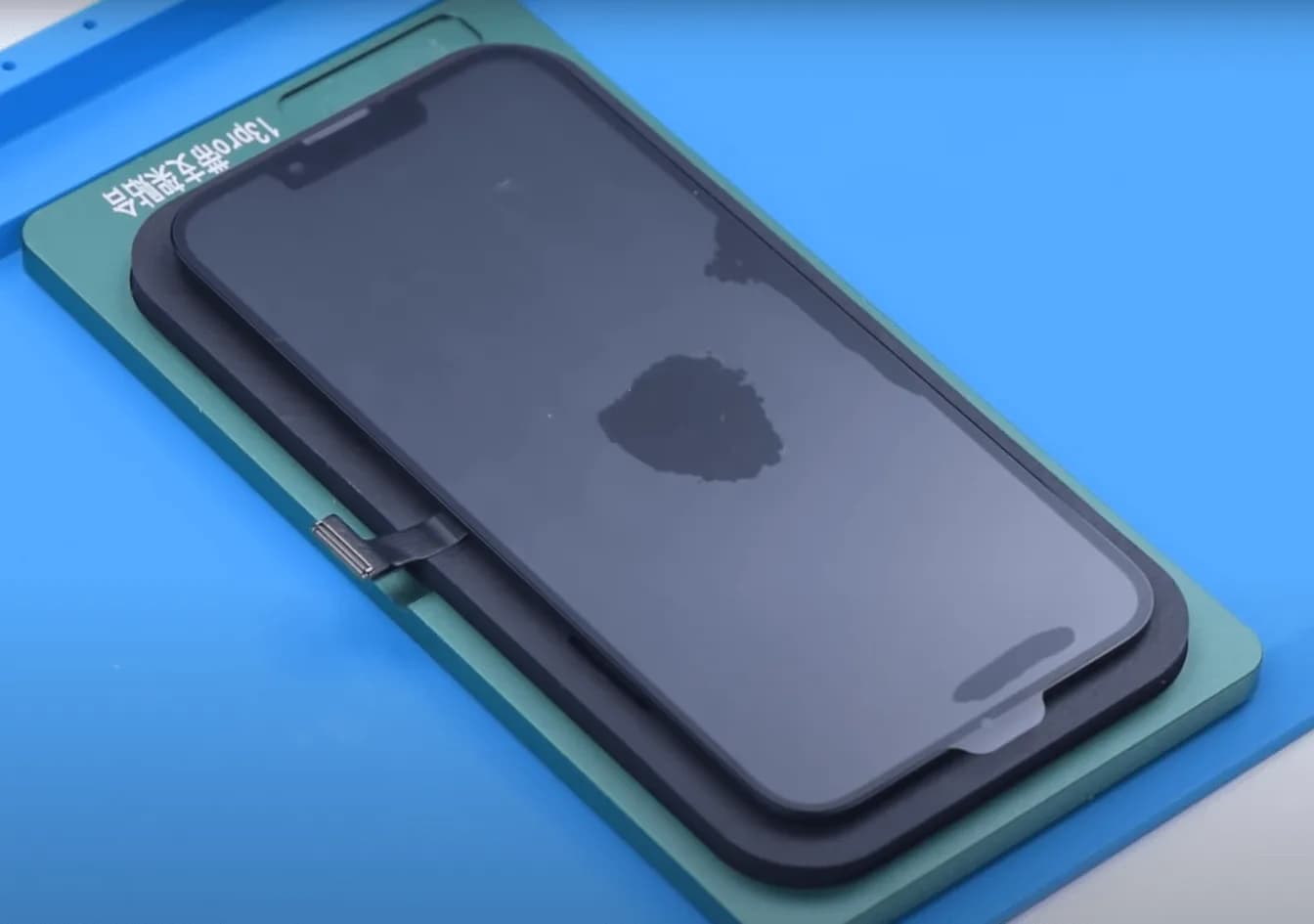

- Place the display screen on the laminating mold.

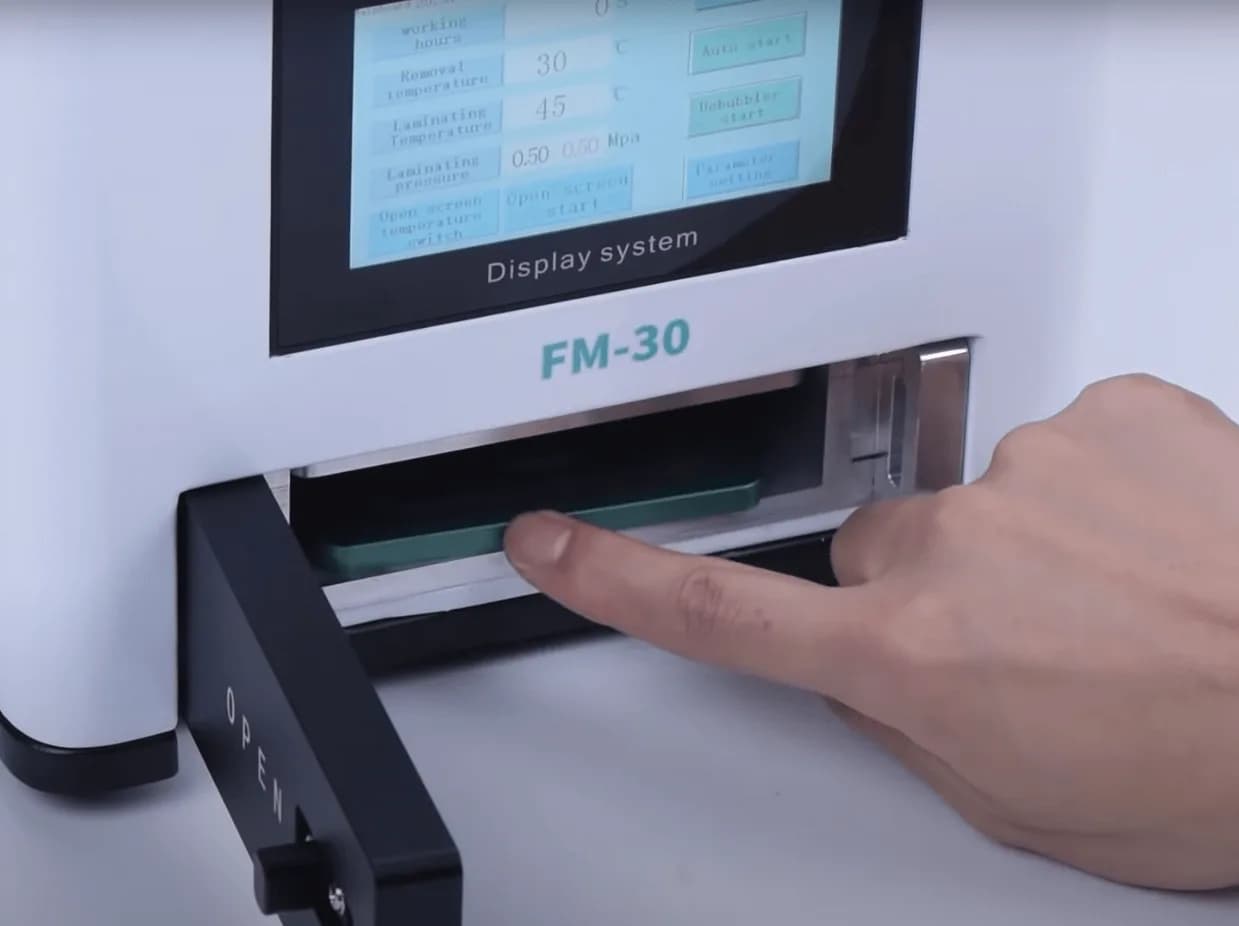

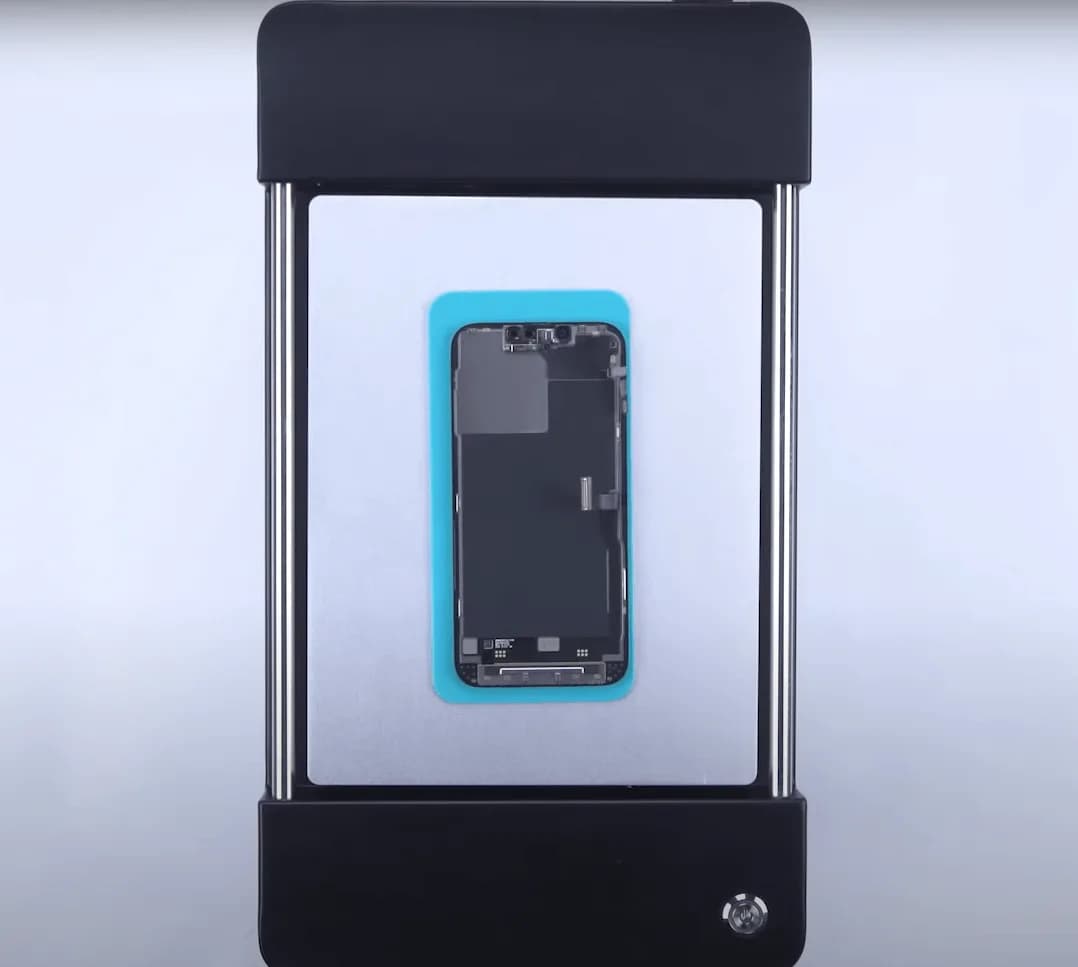

- Insert the screen into the lamination machine, which has a built-in air compressor and vacuum pump for both laminating and bubble removal.

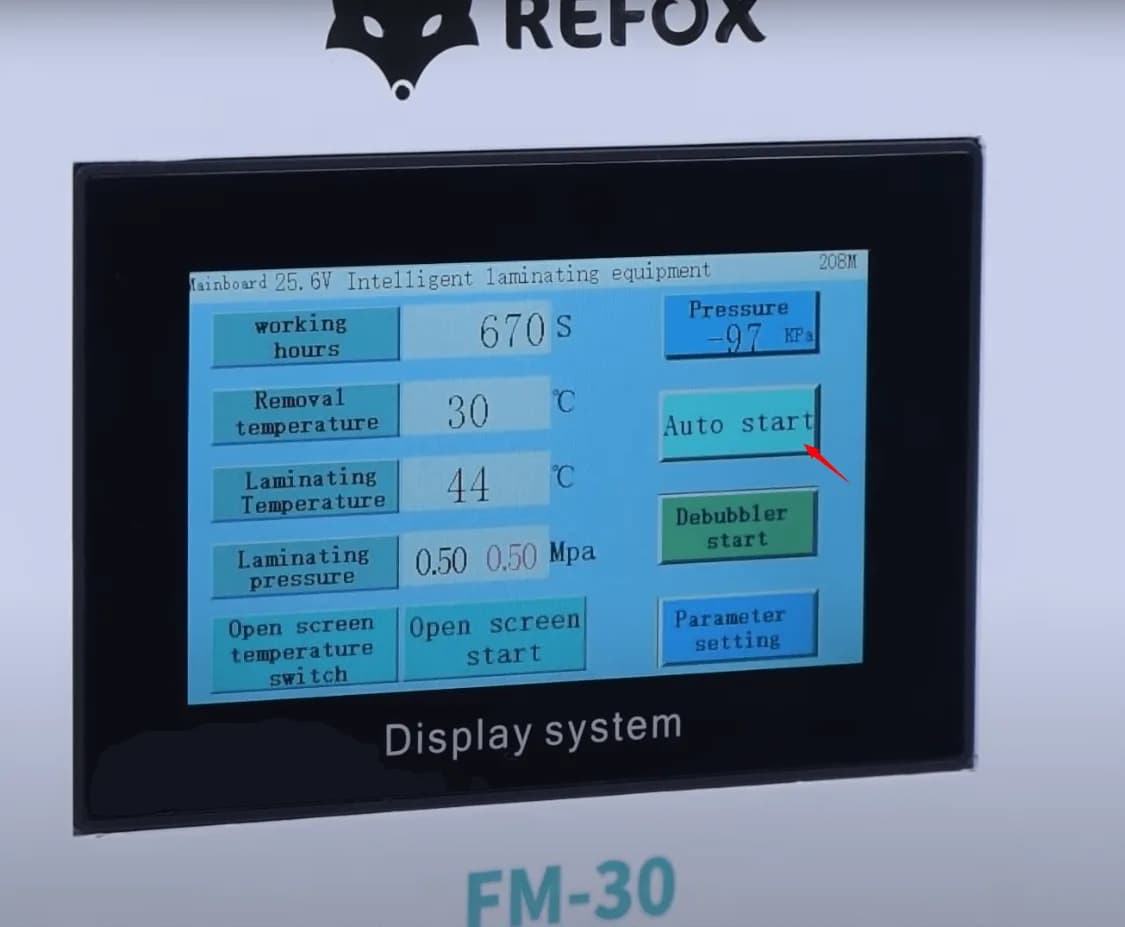

- Press the “Auto start” button to begin the lamination and bubble removal process. This takes about 11 minutes.
Post-Lamination:

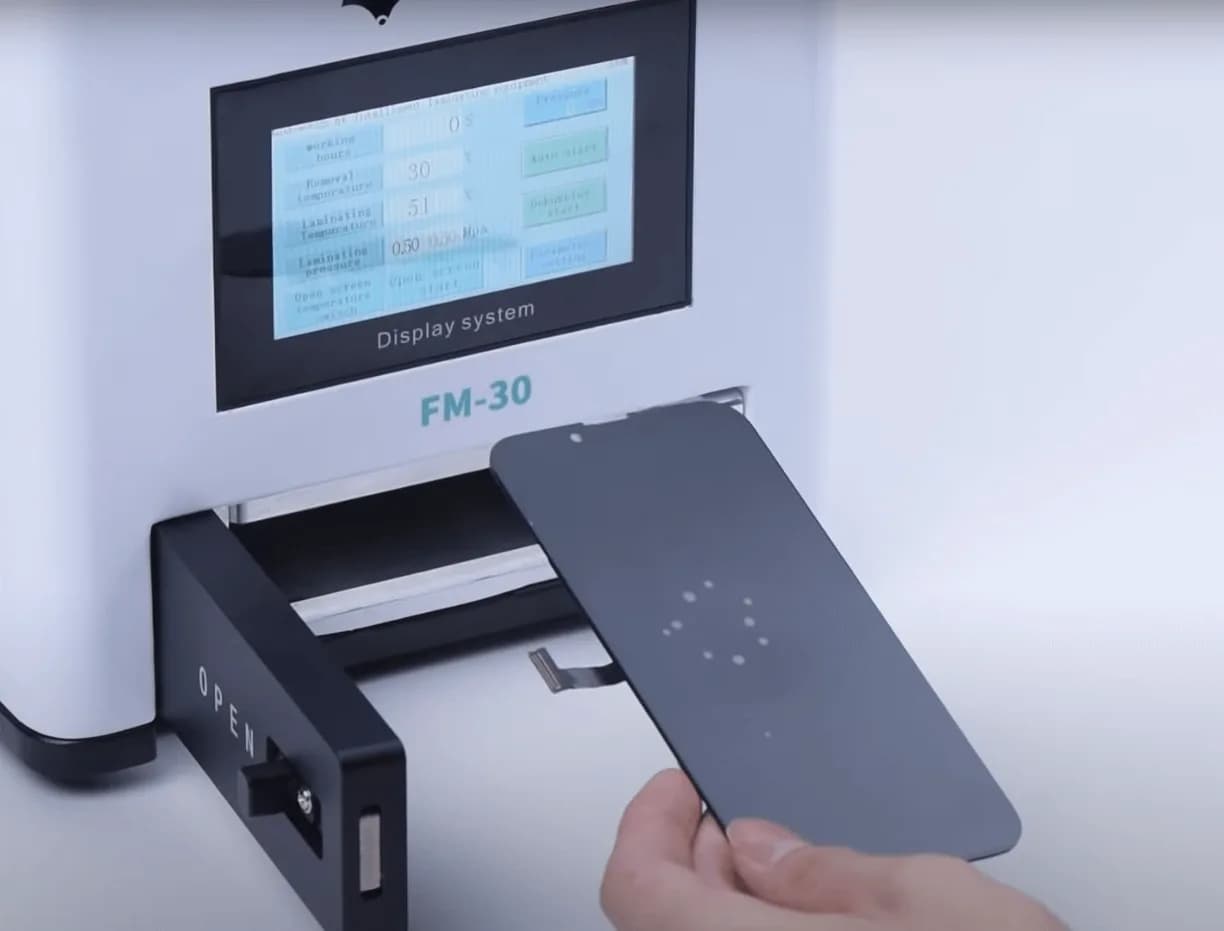

- After lamination, remove the display. Ensure that the lamination is perfect and there are no bubbles inside.
- Reinstall the sensing cable shielding cover and reassemble the phone.
Abschließende Prüfung

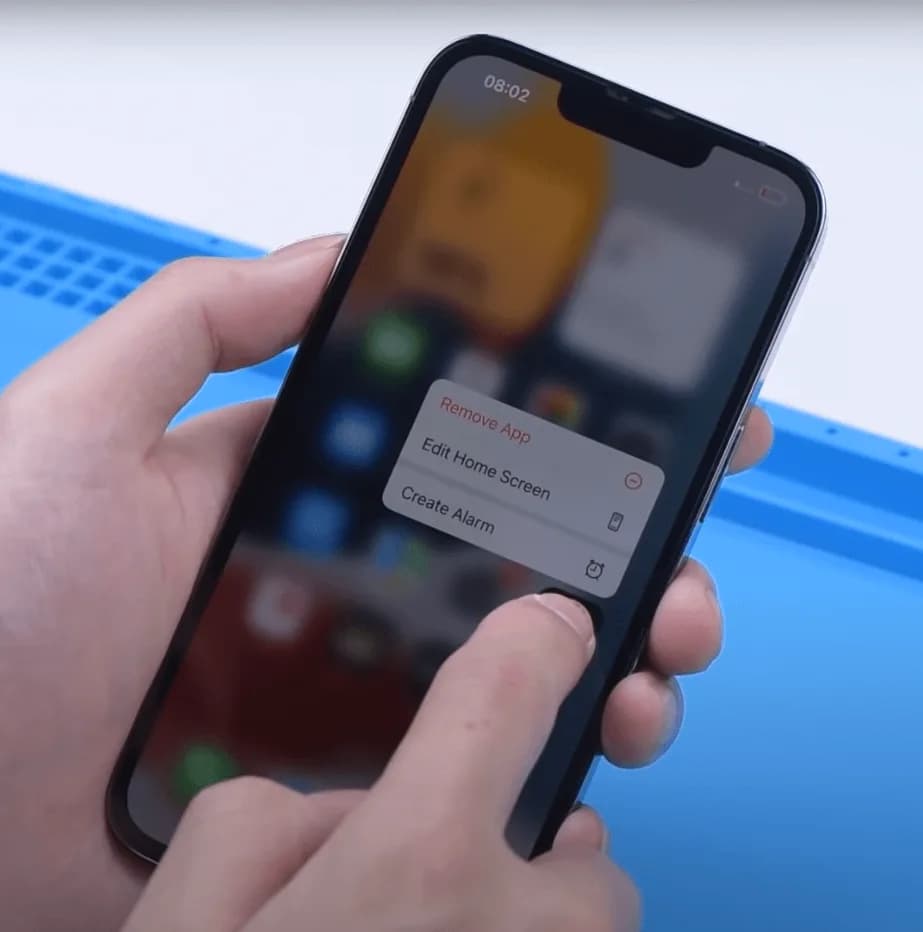

Assemble the phone and test it again to ensure that the display and touch functions are working fine.
Zusammenfassung
The iPhone 13 Pro refurbishment is easier compared to previous models as it does not require separating the bezel frame. The touch panel is under the polarizer, reducing the risk of damage during refurbishment.
This detailed guide should help you through the process of repairing the glass only on an iPhone 13 Pro. Always ensure you follow each step carefully to avoid any potential damage to the device.
