5 Herramientas para técnicos de reparación en 2019

Las herramientas de reparación son muy necesarias para nuestro trabajo de reparación. Con ellas podemos reparar el móvil o el ordenador rápidamente. ¿Qué herramientas de reparación sueles utilizar? Hay muchas herramientas de reparación for you choice in the market, sometimes, you may wonder this question: which repair tools I must to know? Today, we will introduce five repair tools for you, they are:

• Plataforma integrada de reparación de teléfonos móviles
• Digital Trinocular Microscope with Camera VGA+HDMI Dual Output
• iBridge PCBA Extension Test Cable
• Upper Lower Layer Logic Motherboard Test Fixture for iPhone X PCB Repair
• Renewable and Free Assistant Software for Micro-soldering Technicians

Then, the reasons why we introduce five repair tools as following:

Plataforma integrada de reparación de teléfonos móviles

Are you tired of the dirty, disorder and bad condition in your repair shop? Is it driving you mad every time you spend lots of time clearing up all kinds of phone repair tools, screws and other repair materials? With this integrated mobile phone repair platform, you can cleaning and repairing sundries, removing, cleaning and replacing repair tools and materials quickly.

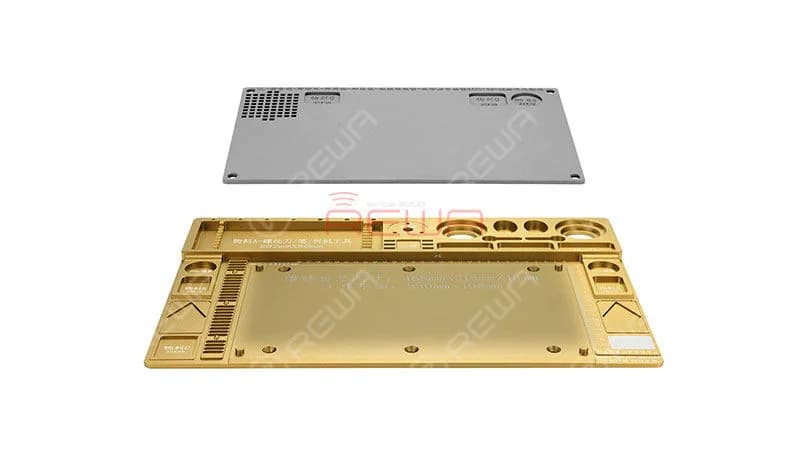

Plataforma integrada de reparación de teléfonos móviles

1. Material: Aluminum alloy
2. Main base pad: 468*318*15 mm
3. Extended pad: 330*198*4 mm
4. Main base pad: 3.3 kg
5. Extended pad: 0.3 kg

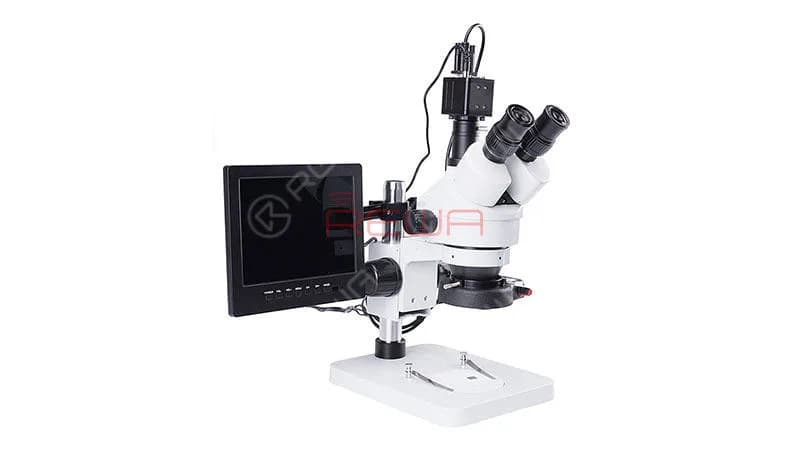

Digital Trinocular Microscope with Camera VGA+HDMI Dual Output

The digital trinocular microscope with camera VGA+HDMI dual output is used for PCB circuit, Electronic components, BGA rework repair, Soldering and logic board repair. It can magnify small parts so that you can see them clearly.

1. Digital Trinocular Microscope with Camera VGA+HDMI Dual Output
2. Material: Metal
3. Eyepiece: 0.5x
4. Liquid Crystal Display: 8 inch
5. Magnification Ratio: 20-180x
6. Theory: Stereo Microscope
7. Camera: 2 million pixels VGA output
8. Type: Trinocular Stereo Microscope

iBridge PCBA Extension Test Cable

The iBridge PCBA Extension Test Cable can be used as an extended testing cable to protect the connectors on the logic board. The iBridge PCBA testing cable is the extension connector on motherboard, extension connector of the corresponding parts, extended test cable for parts testing, and enlarged testing point.

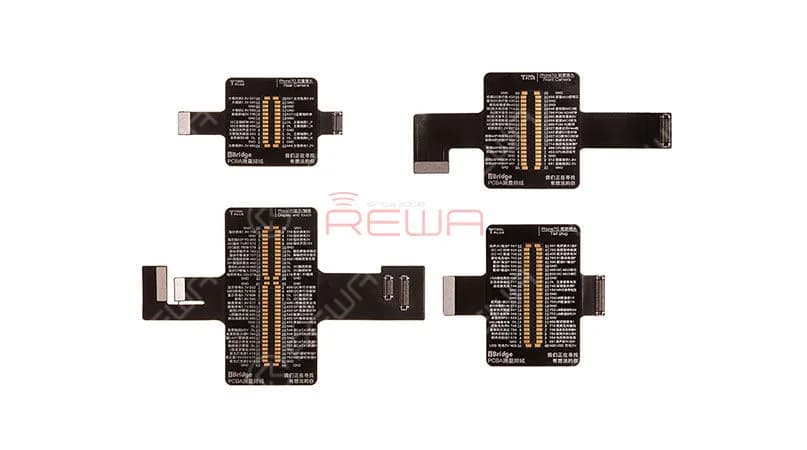

iBridge PCBA Extension Test Cable

To be specific, it comes with:

1. Display & touch testing cable
2. Front camera testing cable
3. Rear camera testing cable
4. Dock connector testing cable

Upper Lower Layer Logic Motherboard Test Fixture for iPhone X PCB Repair

The upper lower layer logic motherboard test fixture is a professional iPhone X motherboard repair tool, the PCB test fixture is used for diagnosing whether the upper and lower layer boards works well before installation. With this iPhone X double-stacked board test fixture, you can avoid any damage because of repeated dis-assembly and installation.

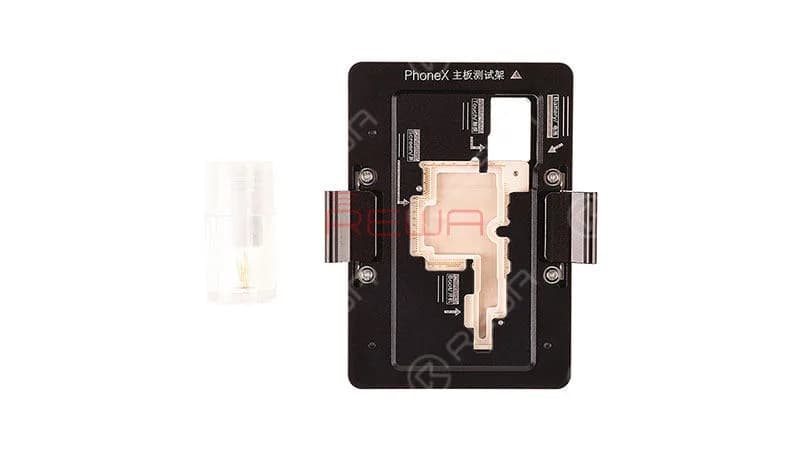

Motherboard Test Fixture for iPhone X PCB Repair

1. Special Premium quality material.
2. High precision for holding motherboard for iPhone X.
3. Easy to use, connect the upper and lower layer of iPhone X motherboard for fast testing.
4. The back of the test frame is hollowed out to facilitate maintenance technician to detect resistance and capacitance.
5. Renewable and Free Assistant Software for Micro-soldering Technicians

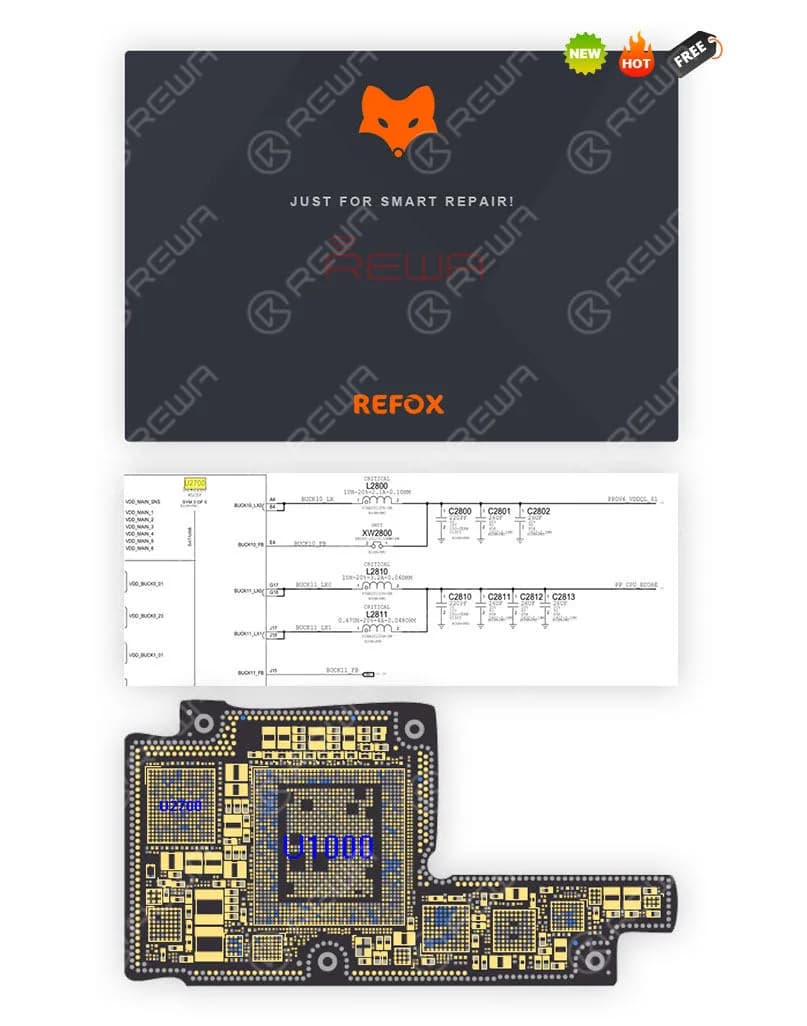

Many of our customers ask for the schematic of what we use in the videos. Here we make a unified reply. We use REFOX(It is free to use). Which is a concise and smooth bitmap software that provides reliable schematics and board files for Apple/Samsung/Huawei (so far) motherboard repair! If you need this software please go to their official website to download and install: http://www.refoxteam.com/

cell phone maintenance drawing

Some signs indicate motherboard problems

1. Burning Smell
2. Post issues
3. Booting is very slow
4. Random restarts or shutting down
5. Blue screen Reasons of motherboard problem
6. Blocked vents Heating issue
7. Liquid Spill
8. Improperly installed components or manufacturer’s defects
9. Electrical issues

The motherboard and CPU can both be expensive to replace, however, diagnosing hardware failure on your own can reduce the potential repair costs for your business. Diagnosing a defective motherboard or CPU isn’t an exact science, however, as most hardware components exhibit similar symptoms when failing. There also have more repair tools for your choice, you can find them from our online shop! https://shop.rewa.tech/.

Any questions and suggestions please feel free to contact us at sales@rewatechnology.com.
