ITiPhone parts testing kit updated! New iPhone parts testing kit with considerable size, easy operating for iPhone 7 series. Essential testing function for iPhone parts, from flex cables to cameras, is easy to reach within one interface. Special flex cables designed one for one with compatibility, make the iPhone parts testing kit durable and bulk testing procedure efficient.

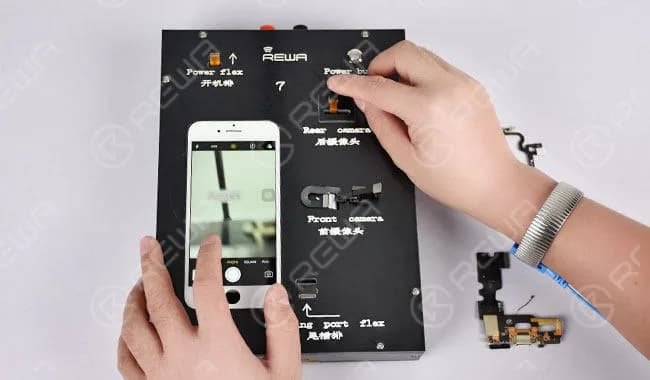

How the iPhone parts testing kit worksRear Facing Camera Testing
Install rear-facing camera/back camera on the machine, press power button. Once the screen is lit up, tap “Camera” icon and enter into rear camera mode, adjust focus and take a picture, then check the picture.
Note: Once one round of testing finished, press power button for sleep mode. The second round of testing goes with the same procedure mentioned above.

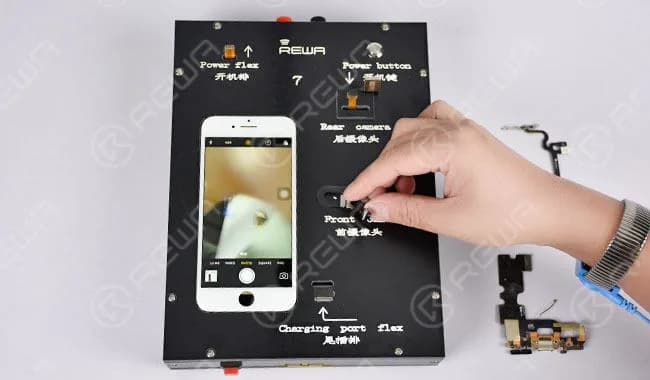

Front Facing Camera Testing
Install front facing camera/secondary camera on the machine, press power button. Once the screen is lit up, tap “Camera” icon and enter into front camera mode, adjust focus and take a picture, then check the picture.

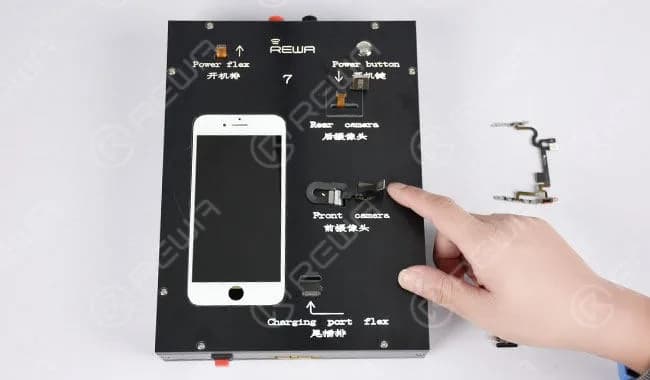

Tap “Voices & Memos” icon and enter into record mode. Shield the proximity sensor of the front camera with one hand, the phone gets a black screen, and vice versa. Tap “Pause” to stop recording, and then play the recording through the buzzer/loudspeaker.

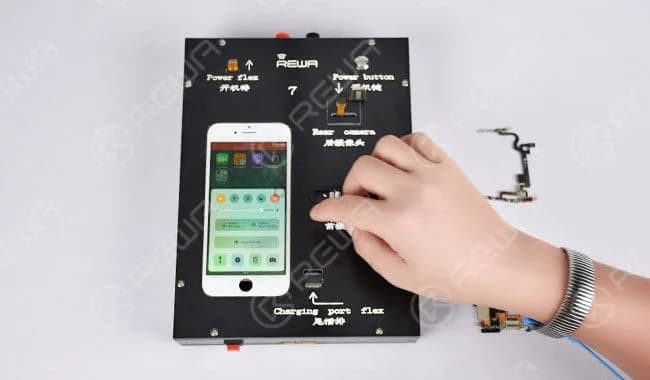

Test ambient-light sensor by lowering the brightness to the lowest. Then toggle on the “Auto-brightness”, the screen goes back to normal brightness.
Note: Once one round of testing finished, press power button for sleep mode. The second round of testing goes with the same procedure mentioned above.

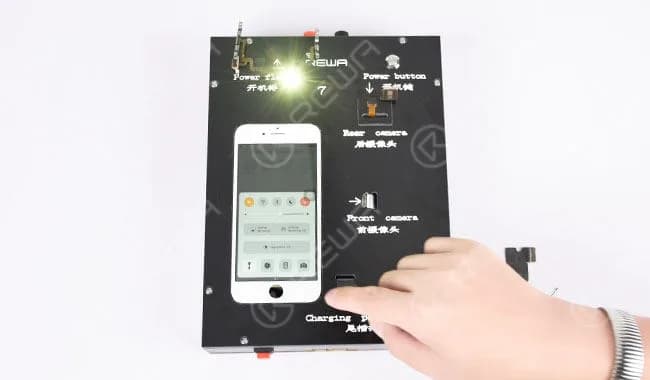

Power Switch Volume Flex Cable Testing
Install rear-facing camera/back camera on the machine, then install power switch volume flex cable and press power button. Once the screen is lit up, tap “flashlight” icon to test flashlight function. Then test Mute key and Volume up/down keys one by one.
Note: Once one round of testing finished, press power button for sleep mode. The second round of testing goes with the same procedure mentioned above.

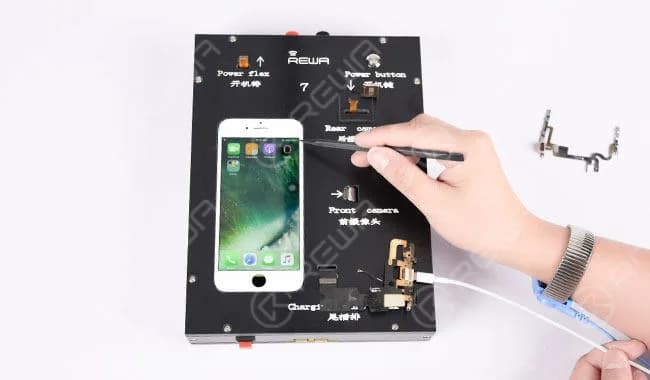

Charging Port Flex Cable Testing
Install charging port flex cable on the machine and press power button. Connect the charging port and computer with a lightning cable, the charging icon on the screen indicates the perfect functionality of the charging port.

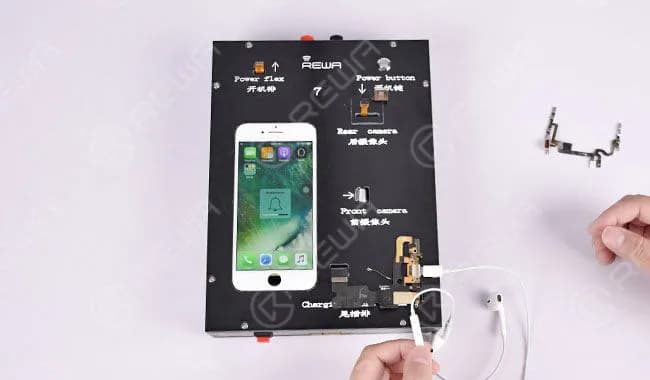

Tap “Voices & Memos” icon and enter into record mode. Insert the earphone into the audio jack. Play the recording and adjust the volume by the volume up/down keys on the earphone.
Note: Once one round of testing finished, press power button for sleep mode. The second round of testing goes with the same procedure mentioned above. REWA cell phone repair replacement parts:
