iPhone Screen Refurbishing: How to Avoid Bubbles for a Flawless Finish

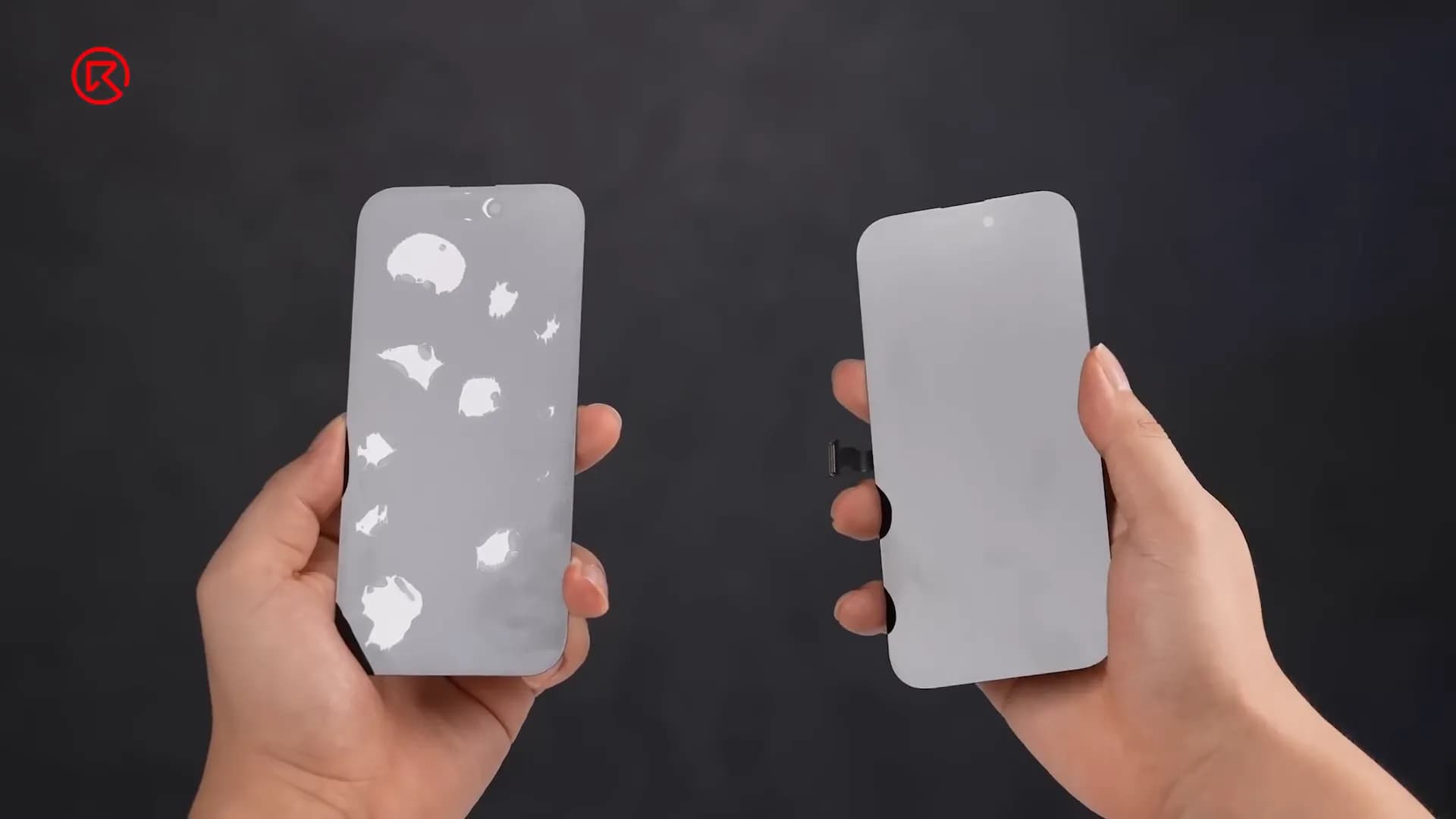

At REWA Technology, we recognize that air bubbles are one of the most common and frustrating issues in iPhone screen refurbishing. These tiny imperfections can compromise the entire process, resulting in poor outcomes and wasted time. To ensure a flawless, perfectly laminated screen, we’ve outlined five key tips derived from our expert repair workflows at REWA Lab.

Whether you’re a technician, shop owner, or just starting in iPhone refurbishing, this step-by-step guide will help you improve your success rate and minimize costly mistakes. Let’s explore the best practices to eliminate air bubbles and achieve a smooth, professional finish.

Step 1: Prepare Your Tools and Workspace

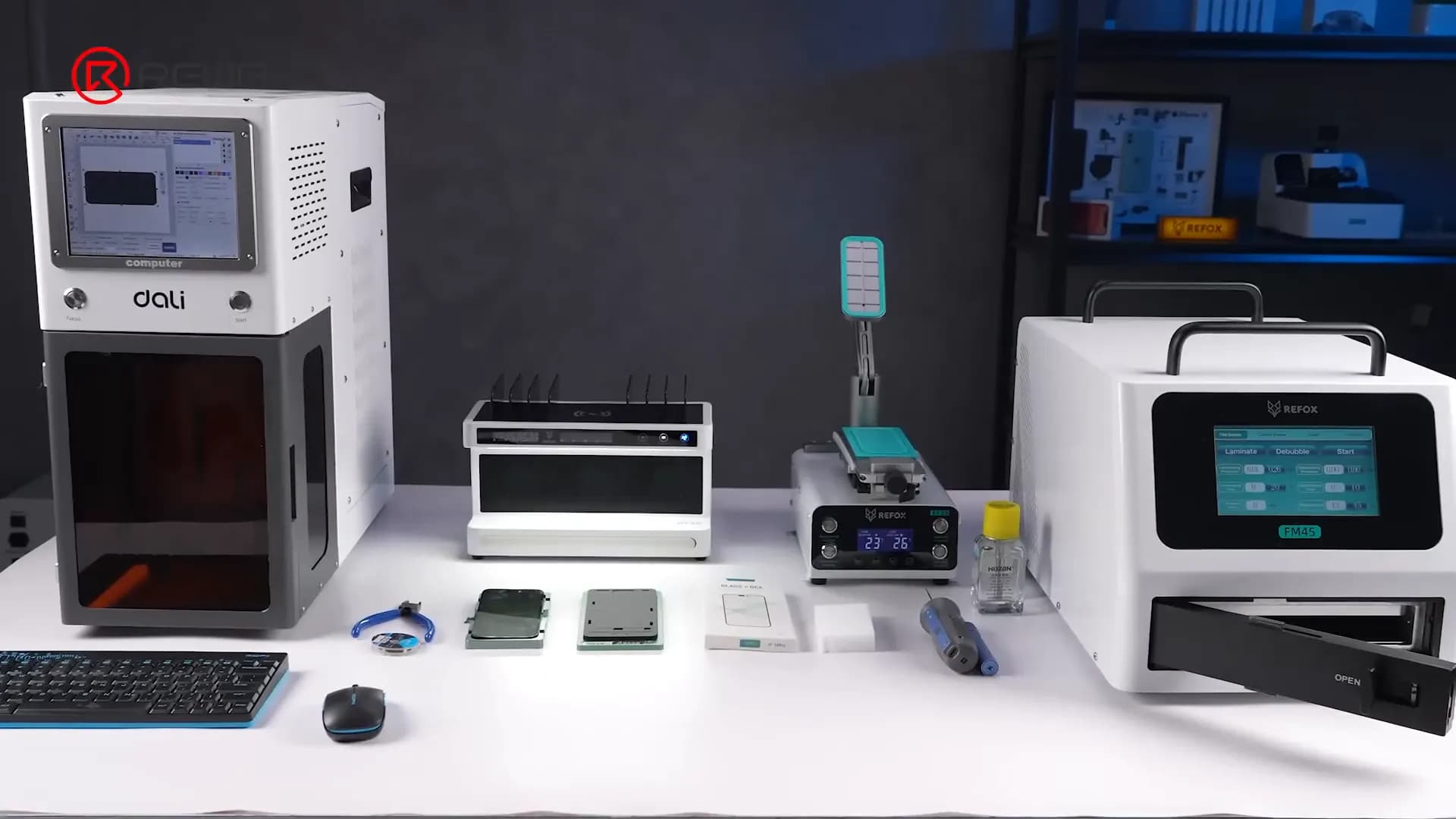

Before beginning the refurbishing process, ensure you have the necessary tools for precision and cleanliness. The tools we recommend include:

• UV laser machine – for removing frame adhesive
• Cutting nipper – for removing the frame bezel
• 0.028mm cutting wire – for separating the front glass
• Electric glue remover – for cleaning residual adhesive
• Naphtha and sponge – for removing leftover glue
• Lint-free cloth – for cleaning the OLED surface
• Dust inspection lamp – for spotting debris on OLED
• Alignment mold – for precise OLED/front glass placement
• REFOX FM45 Laminating & Debubbling Machine – for final bonding

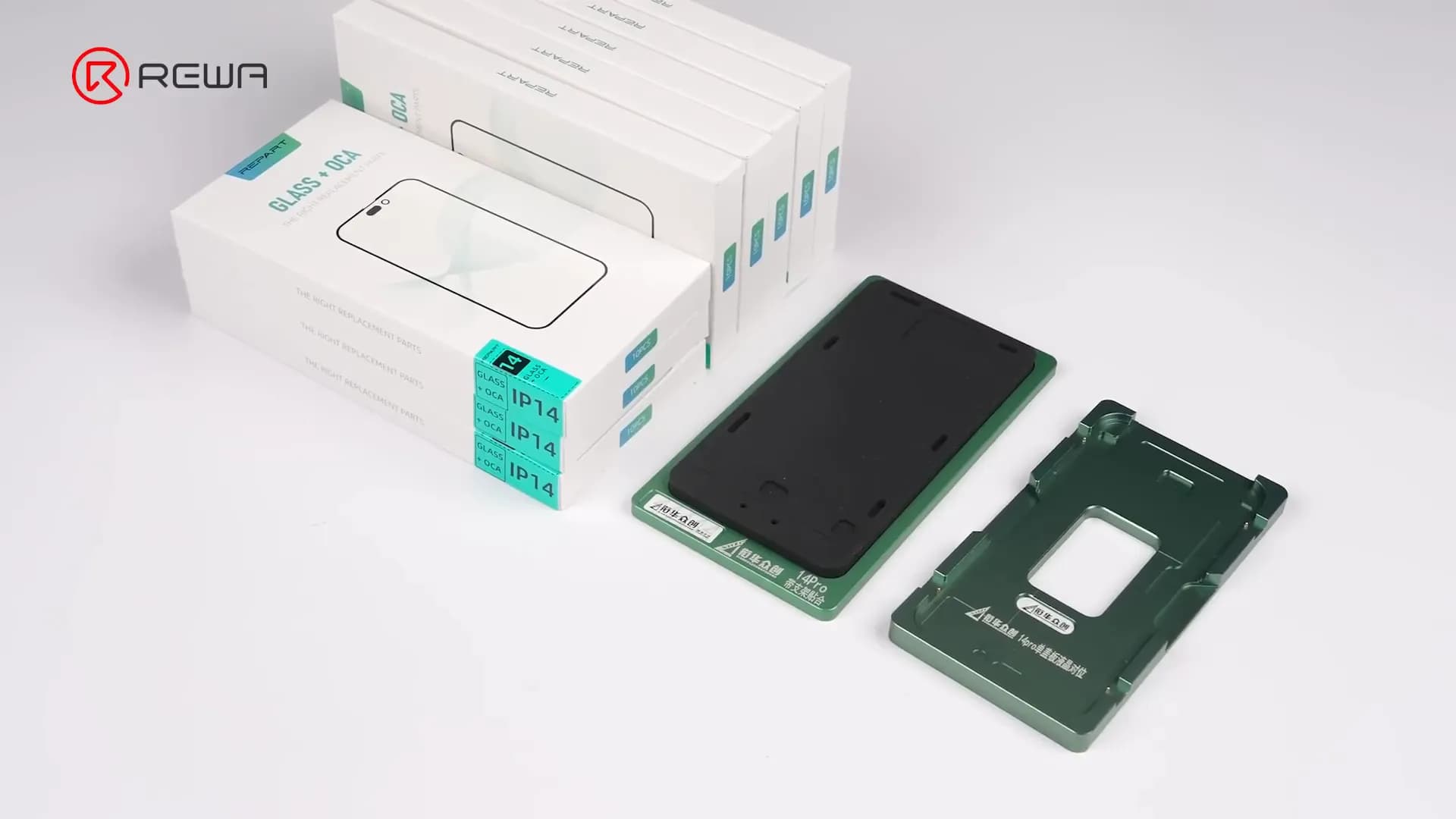

• REPART front glass with OCA – replacement top glass

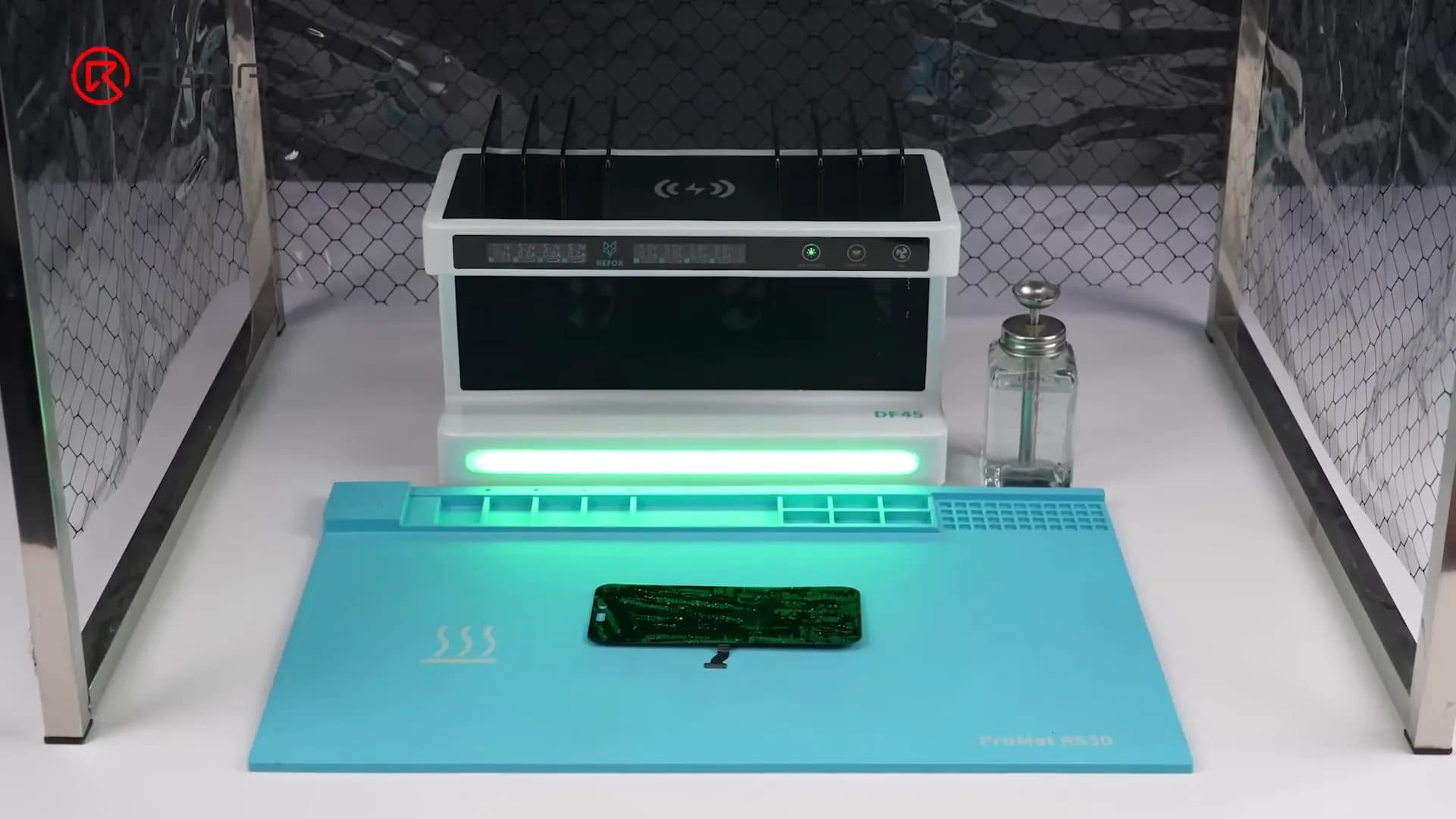

A clean and organized workspace is essential. Always work on a clean table to minimize dust and contaminants that could lead to bubbles.

Step 2: Remove the Frame Bezel Carefully

To reduce the risk of air bubbles during refurbishing, we recommend removing the iPhone screen’s frame bezel. Follow these steps:

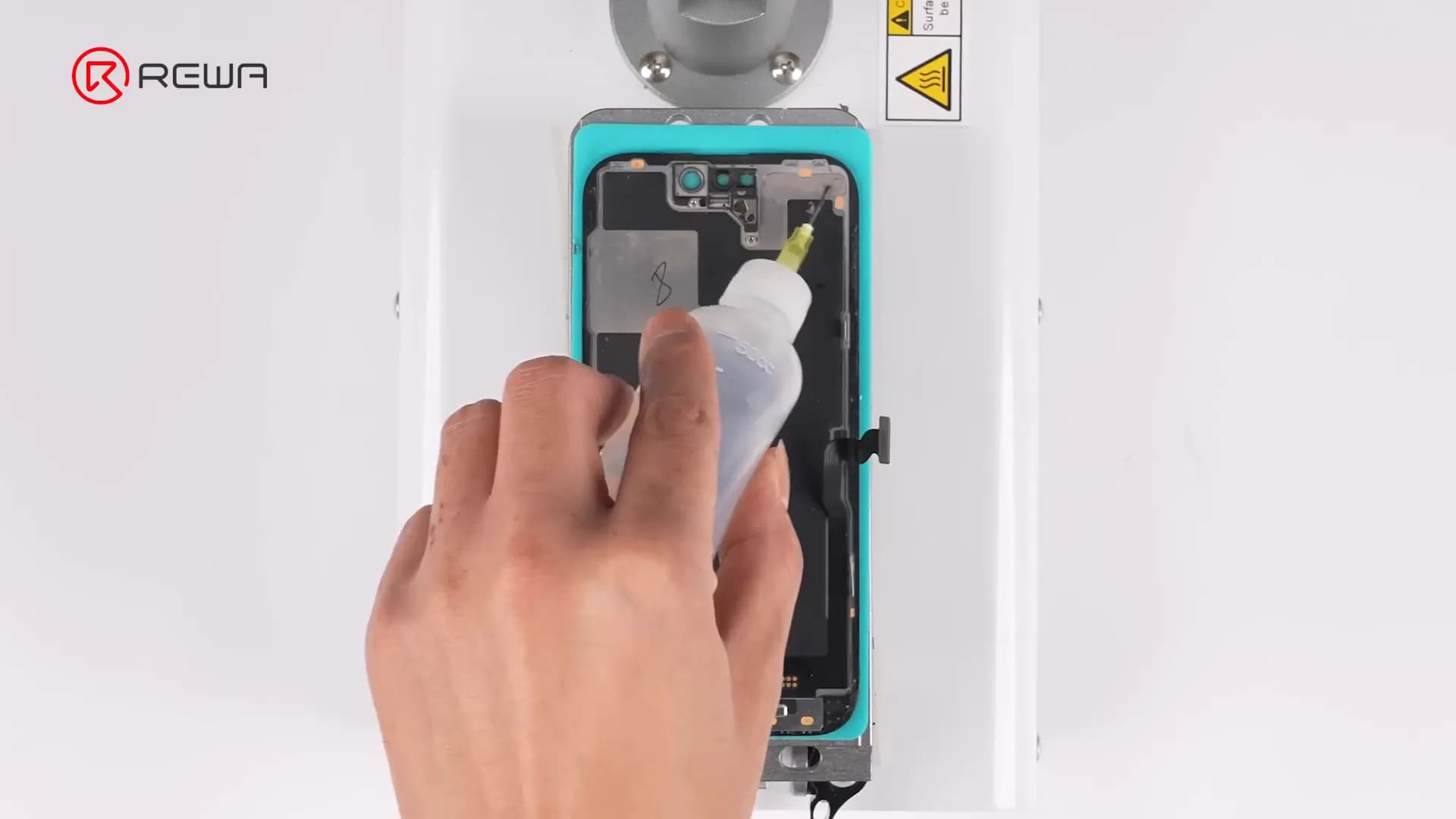

• Apply isopropyl alcohol along the edges of the frame bezel.

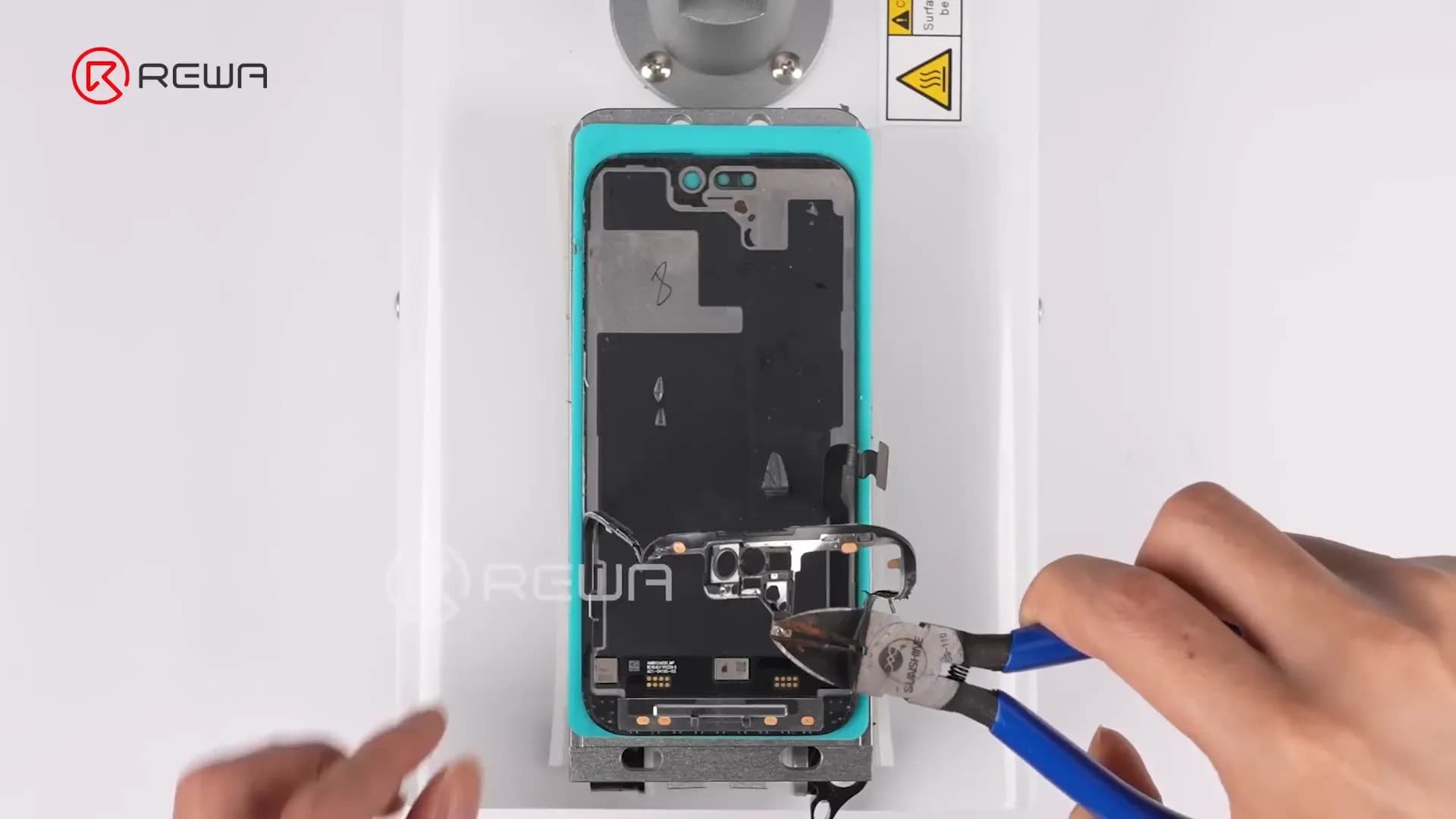

• Use cutting pliers to carefully detach the bezel frame.

Removing the bezel frame creates a cleaner surface and minimizes trapped air during lamination.

Step 3: Separate the Front Glass and Clean Residual Adhesive

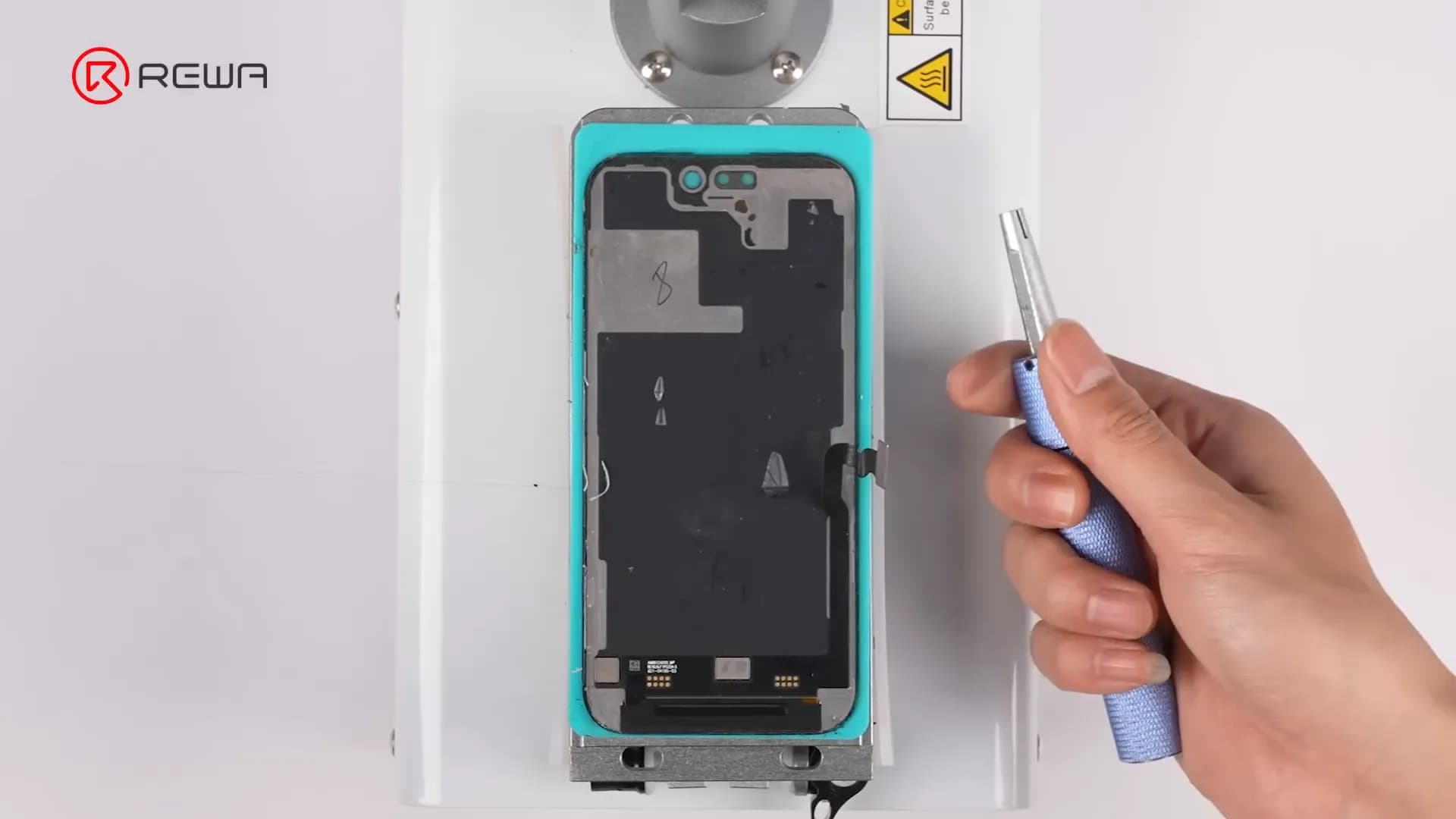

Separate the front glass using a 0.028 mm cutting wire, taking care to work with patience and precision to avoid damaging the components.

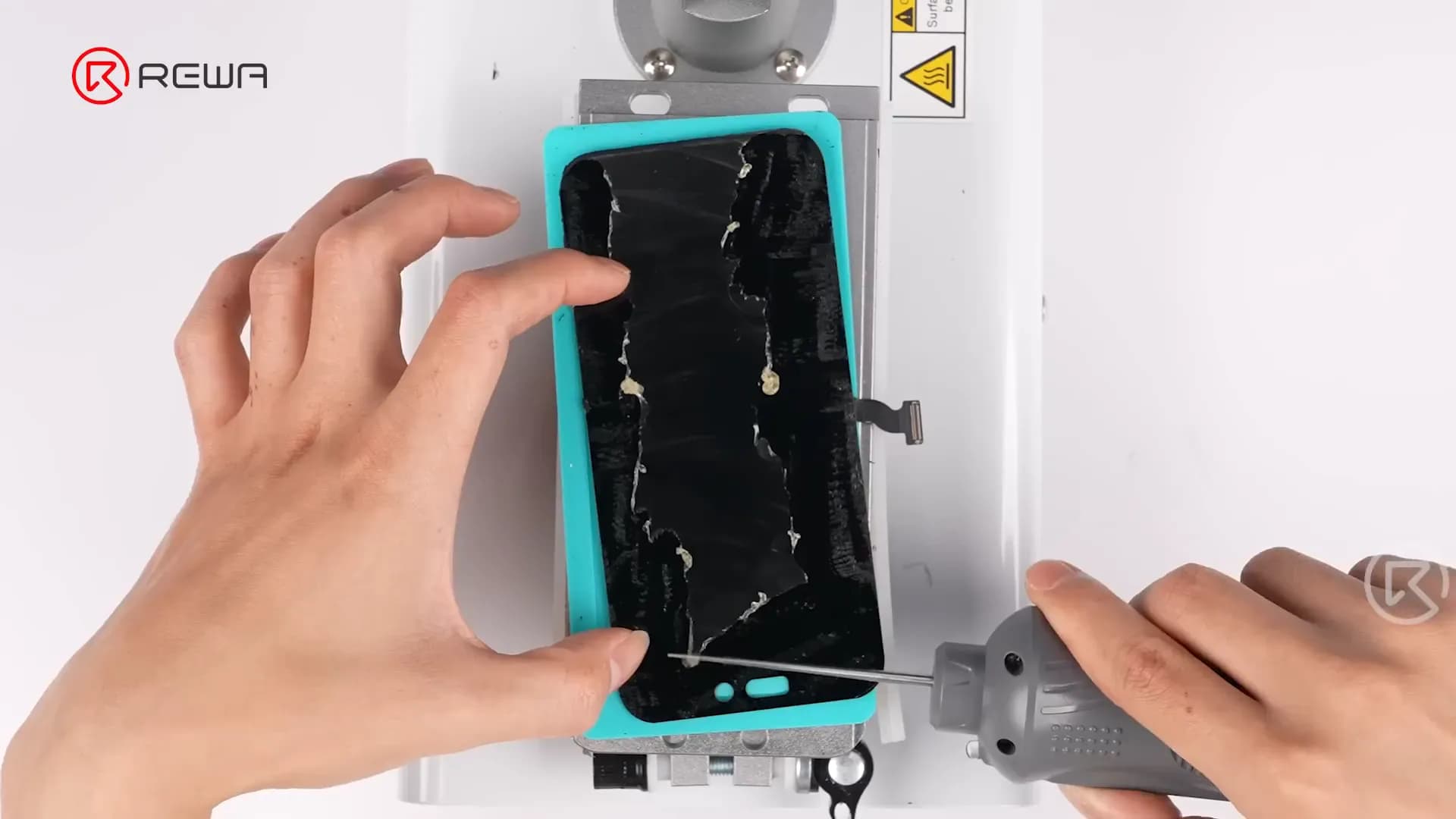

After separating the glass, use an electric glue remover to clean off any adhesive residue from the OLED screen. This step is crucial to prevent bubbles caused by leftover glue.

Finally, wipe the surface with a lint-free cloth to ensure no particles remain.

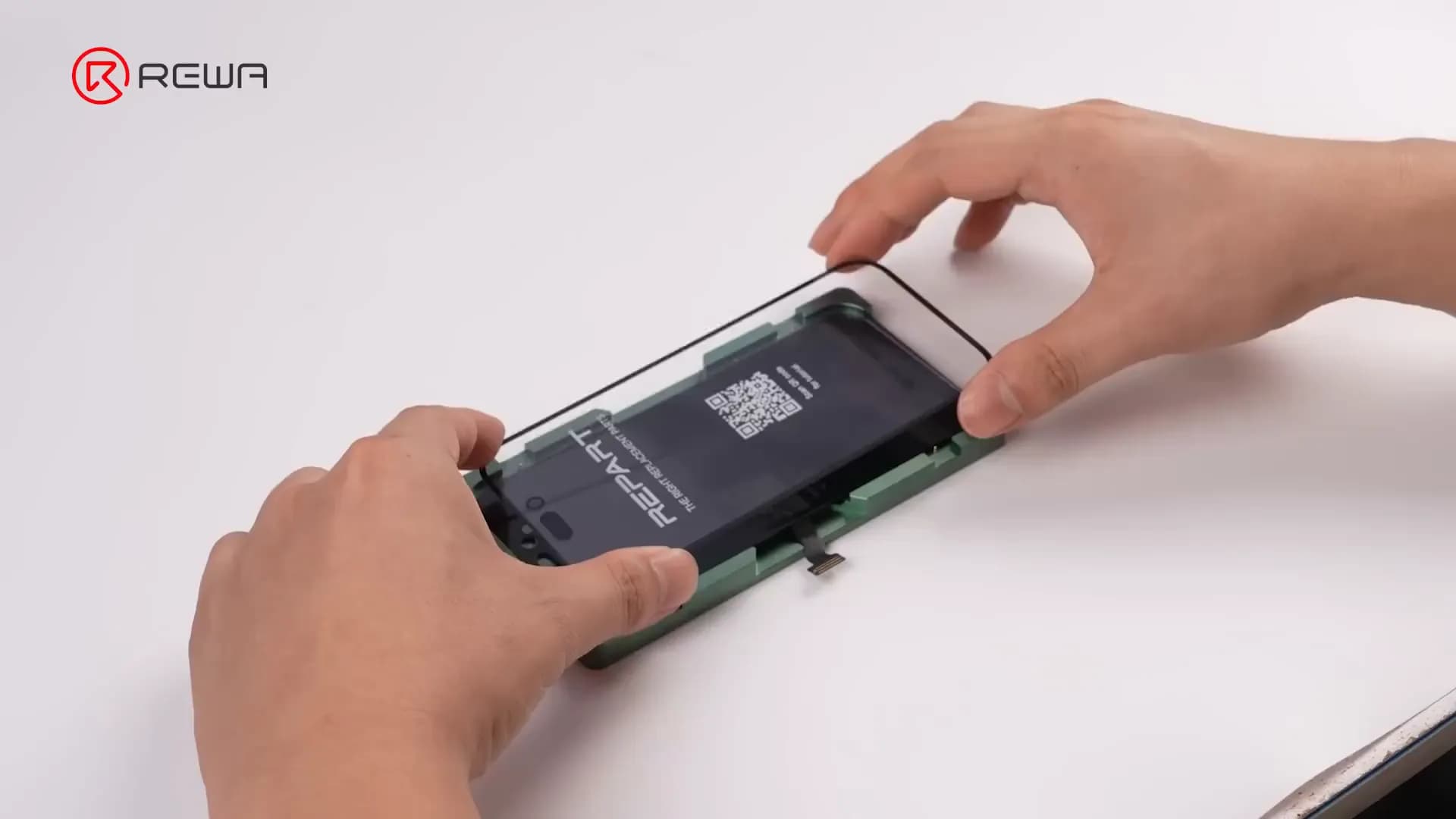

Step 4: Align the OLED Screen with the Front Glass

This is the most critical step to avoid bubbles and ensure a flawless finish. Follow these steps:

• Place the OLED screen directly into the alignment mold.

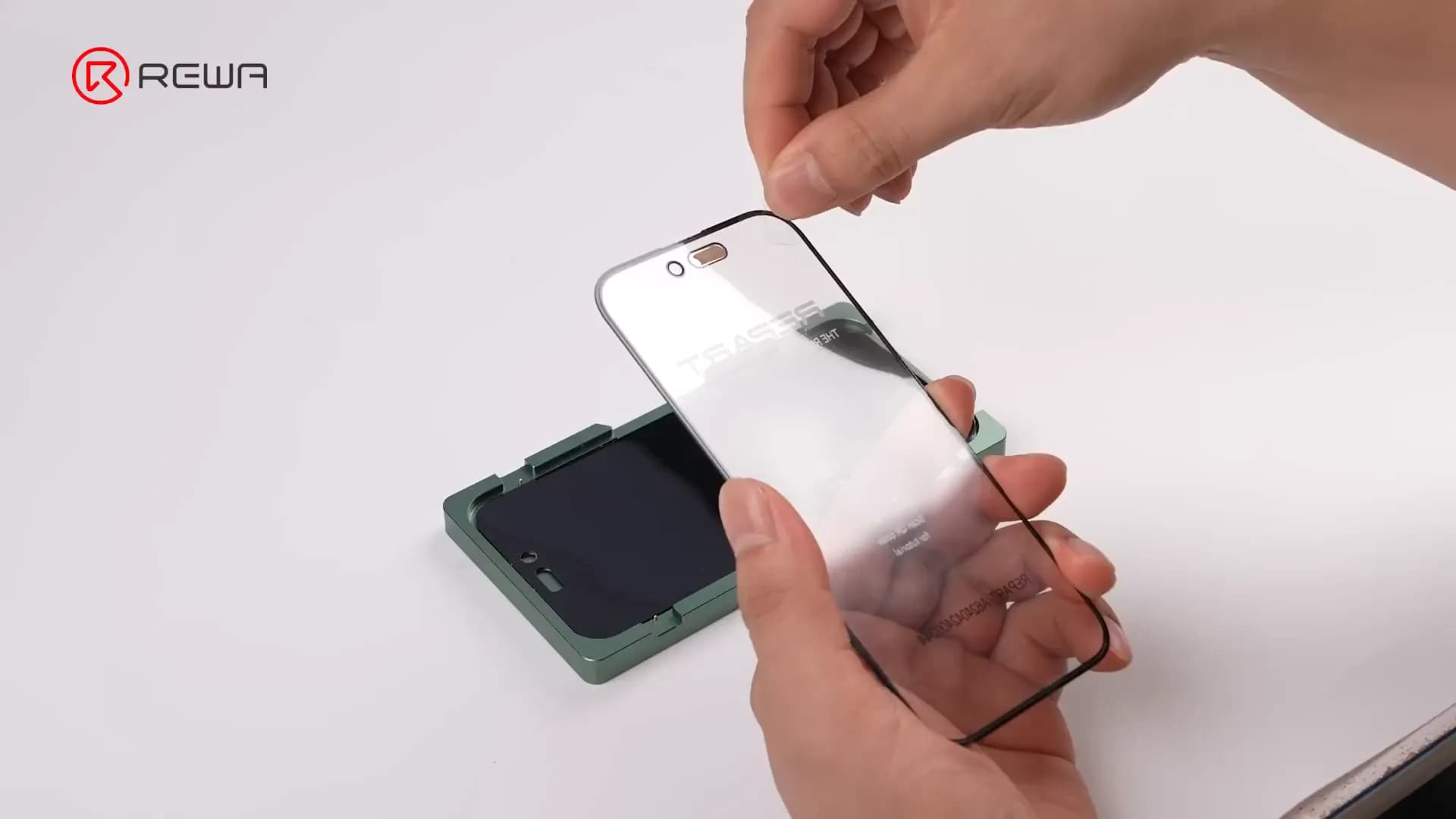

• Remove the protective film from the front glass using a pull tab.
• Carefully place the front glass parallel and aligned over the OLED screen in the mold.
• Press gently on the four corners to ensure the OLED lies flat and all corners are level.
• Gently tap the center of the glass to initiate adhesion between the optical clear adhesive (OCA) and the OLED.

During this process, ensure the flexible OLED cable is slightly bent upwards to avoid interference while aligning.

Step 5: Laminate and Remove Air Bubbles

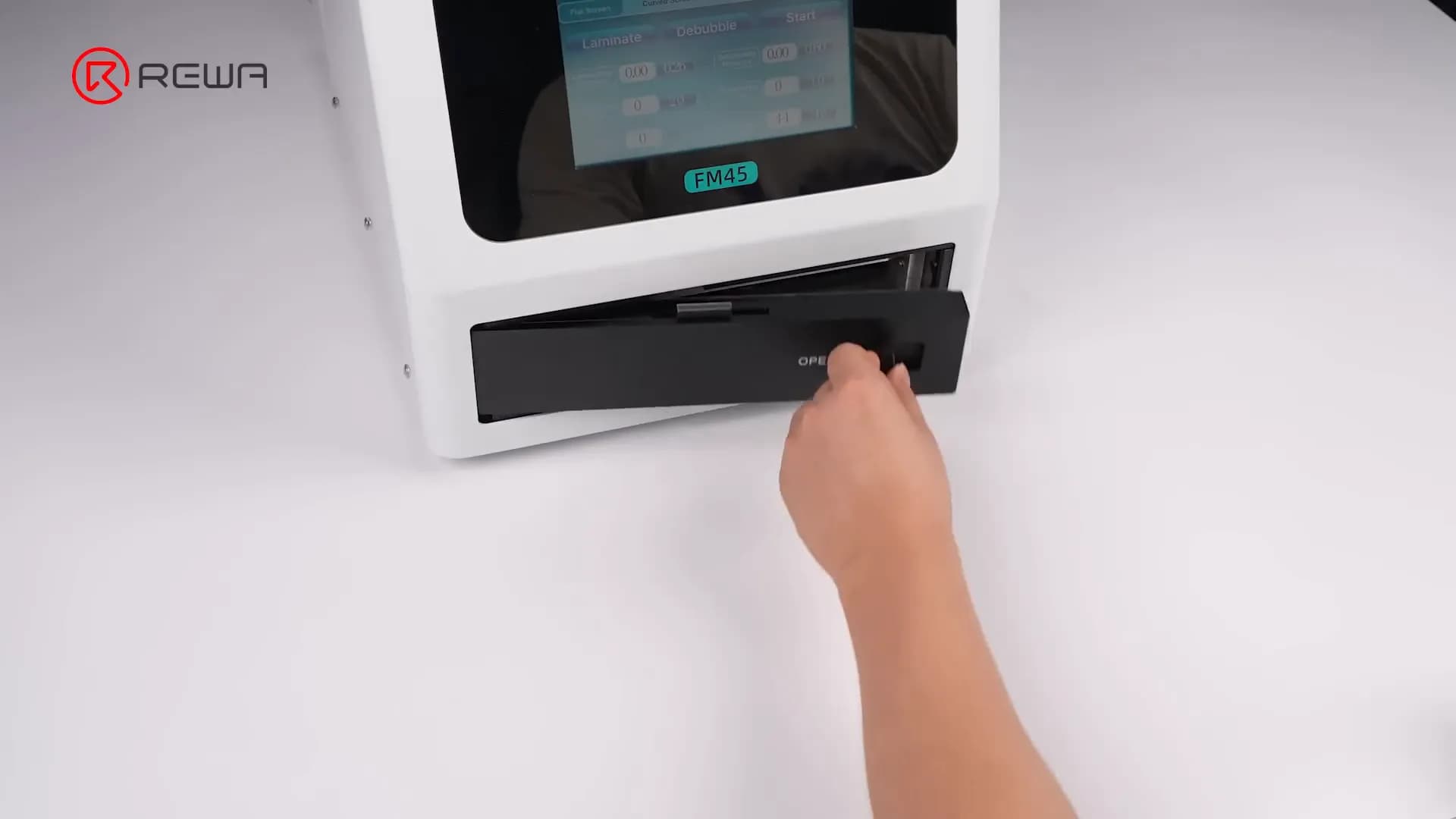

After alignment, carefully flip the mold and place the screen into the laminating and debubbling machine. This machine uses pressure and vacuum to bond the screen layers perfectly while removing all trapped air bubbles.

Once the lamination process is complete, remove the screen from the machine and peel off the protective film. The result should be be a clear, bubble-free screen.

Troubleshooting Common Mistakes

If bubbles appear after refurbishing, it usually indicates that one or more steps were not performed carefully. Common mistakes include:

• Not thoroughly cleaning glue residue or dust particles from the OLED surface.
• Working in a dusty environment or on a dirty table.
• Misaligning the front glass and OLED screen, causing uneven adhesion.
• Allowing the front glass to shift during placement.

Carefully following the recommended procedures will significantly reduce these issues.

FAQs

Frequently asked questions

Tap a question to read the answer.

Q1Why do air bubbles form during iPhone screen refurbishing?

Air bubbles form when dust, glue residue, or improper alignment trap air between the OLED and front glass during lamination. Inadequate cleaning and careless handling are common causes.

Q2Can I fix the bubbles after laminated?

Once laminated, it is difficult to remove bubbles without damaging the screen. Prevention is key—ensure proper cleaning and alignment before lamination.

Q3What tools are essential to avoid bubbles?

Essential tools include a UV laser machine, precision cutting wire, an electric glue remover, an alignment mold, and a laminating and debubbling machine. Additionally, working on a clean, dust-free surface is crucial.

Q4How important is the workspace environment?

A clean, dust-free workspace is crucial as it minimizes the risk of dust particles causing bubbles during lamination.

Conclusion

Achieving a flawless iPhone screen refurbishing result without air bubbles is entirely achievable by following these five essential steps. From preparing your tools and workspace to ensuring precise alignment and lamination, every stage is crucial for the final quality.

We hope these tips from REWA Technology help you minimize air bubble issues and improve your refurbishing success rate. If you’ve encountered air bubbles during refurbishing or have any questions, feel free to share your experiences or ask in the comments below.

Explanation of Key Terms:

• OLED (Organic Light-Emitting Diode): The actual display layer under the iPhone glass. It must be handled with care.
• OCA (Optically Clear Adhesive): A clear adhesive layer used to bond the front glass to the OLED.
• Alignment Mold: A precise tray designed to hold the OLED and front glass in perfect alignment for lamination.
• Lamination Machine: A machine that uses pressure and vacuum to bond the OCA, glass, and OLED while removing any trapped air bubbles.
