iPhone 12 and Above Models WiFi Chip Repair: A Step-by-Step Guide

For years, independent repair shops faced a significant challenge with Wi-Fi repairs on iPhone 12 and later models due to Apple’s part pairing system. However, a groundbreaking solution has emerged, allowing us to perform Wi-Fi repairs on iPhones like the iPhone 13 for the first time. In this guide, we will walk you through the entire process of iPhone WiFi chip repair, ensuring you have all the information you need to successfully complete the task.

Step 1: Preparation for Disassembly

In order to complete the repair successfully, you must prepare your workspace and gather the necessary tools.
Here are the things you will need:

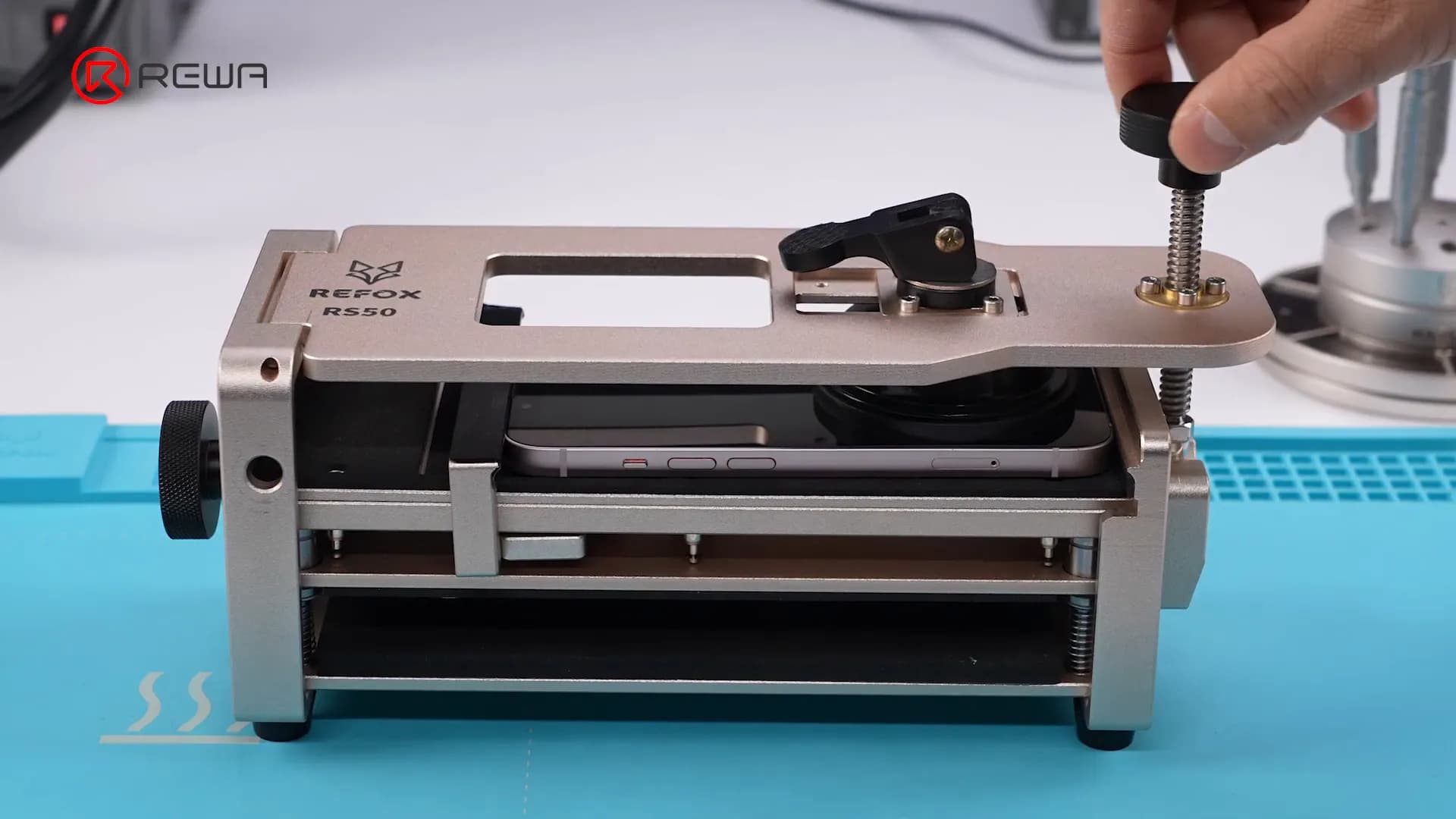

1. RS50 Mobile Phone Opener & Clamp Fixture
2. REFOX RS3 3D Screw Driver Set
3. BGA Flux Paste
4. 3 in 1 Knife Handle & Blade Repair Set

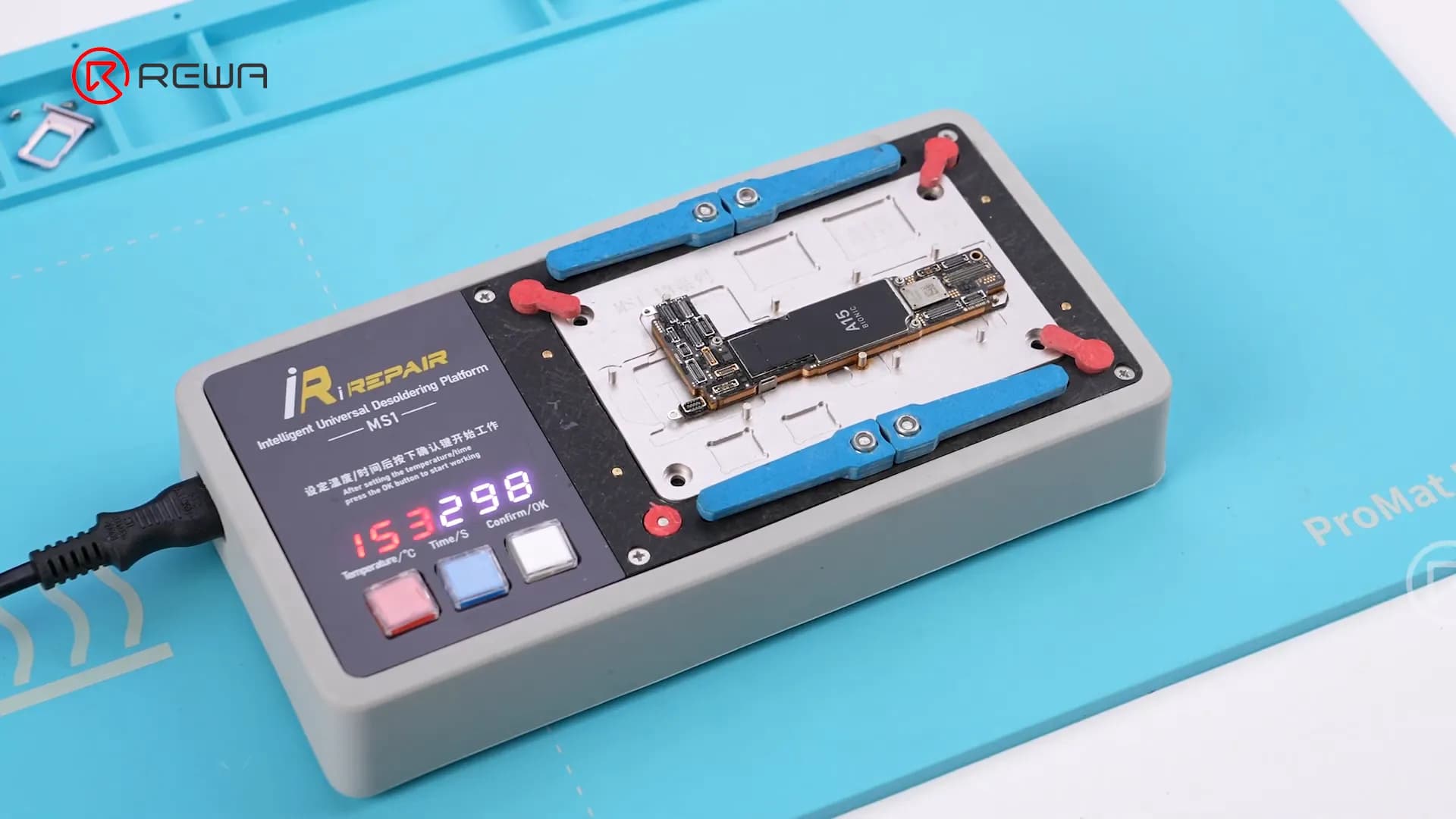

5. Desoldering Platform
6. MaAnt T1 Universal PCB Holder
7. SUGON 8650 Pro Hot Air Station
8. iBoot A iPhone Power Cable
9. REFOX RS30 ESD Phone Repair Heating Pad
10. Tin Planting Platform
11. SUGON AIFEN A902 Soldering Station
12. BEST 0.6mm Solder Wire

With your tools ready, let’s begin the disassembly of the iPhone 13.

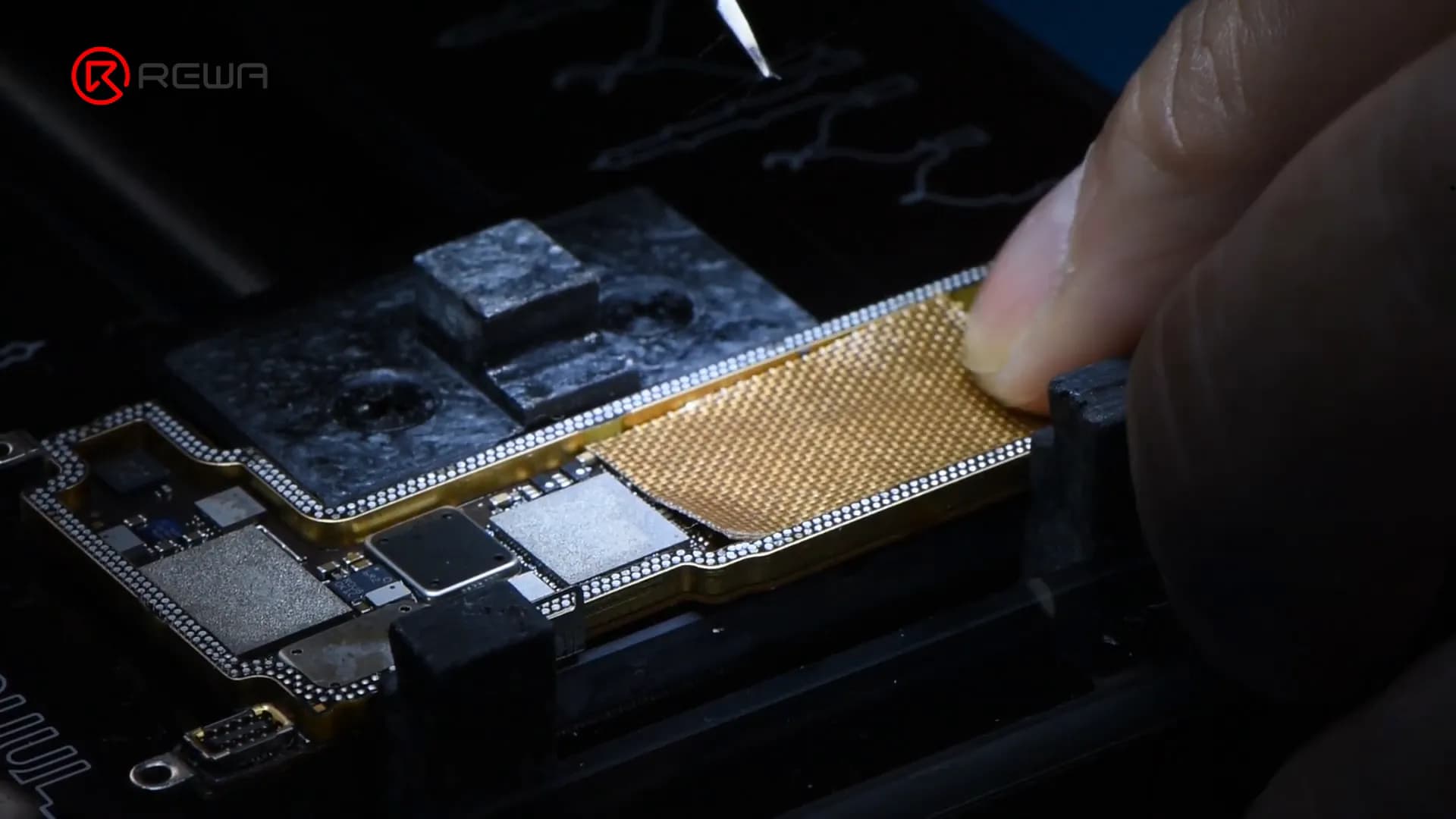

Step 2: Disassemble the iPhone

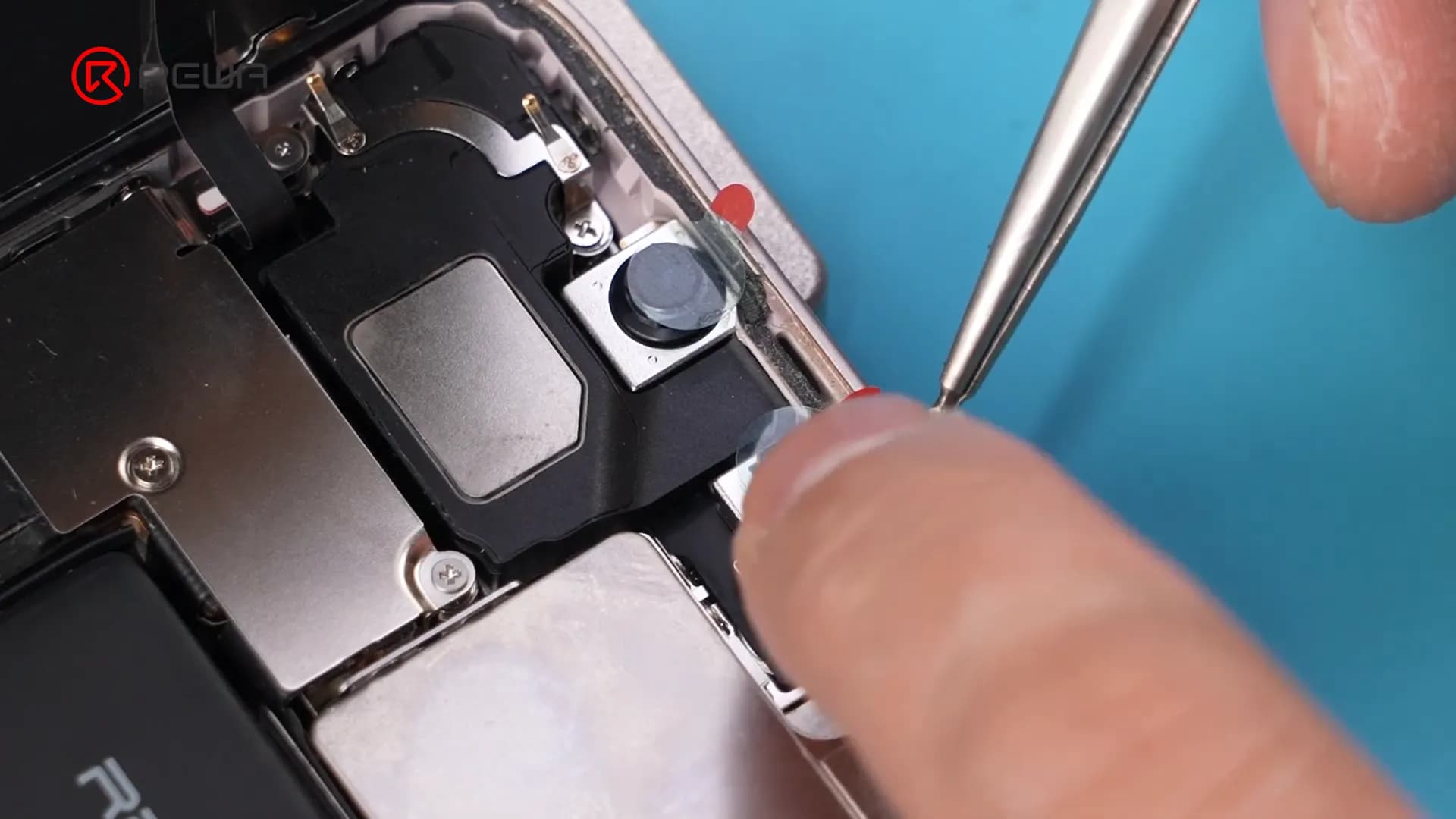

Start by carefully disassembling the iPhone. Follow these steps:

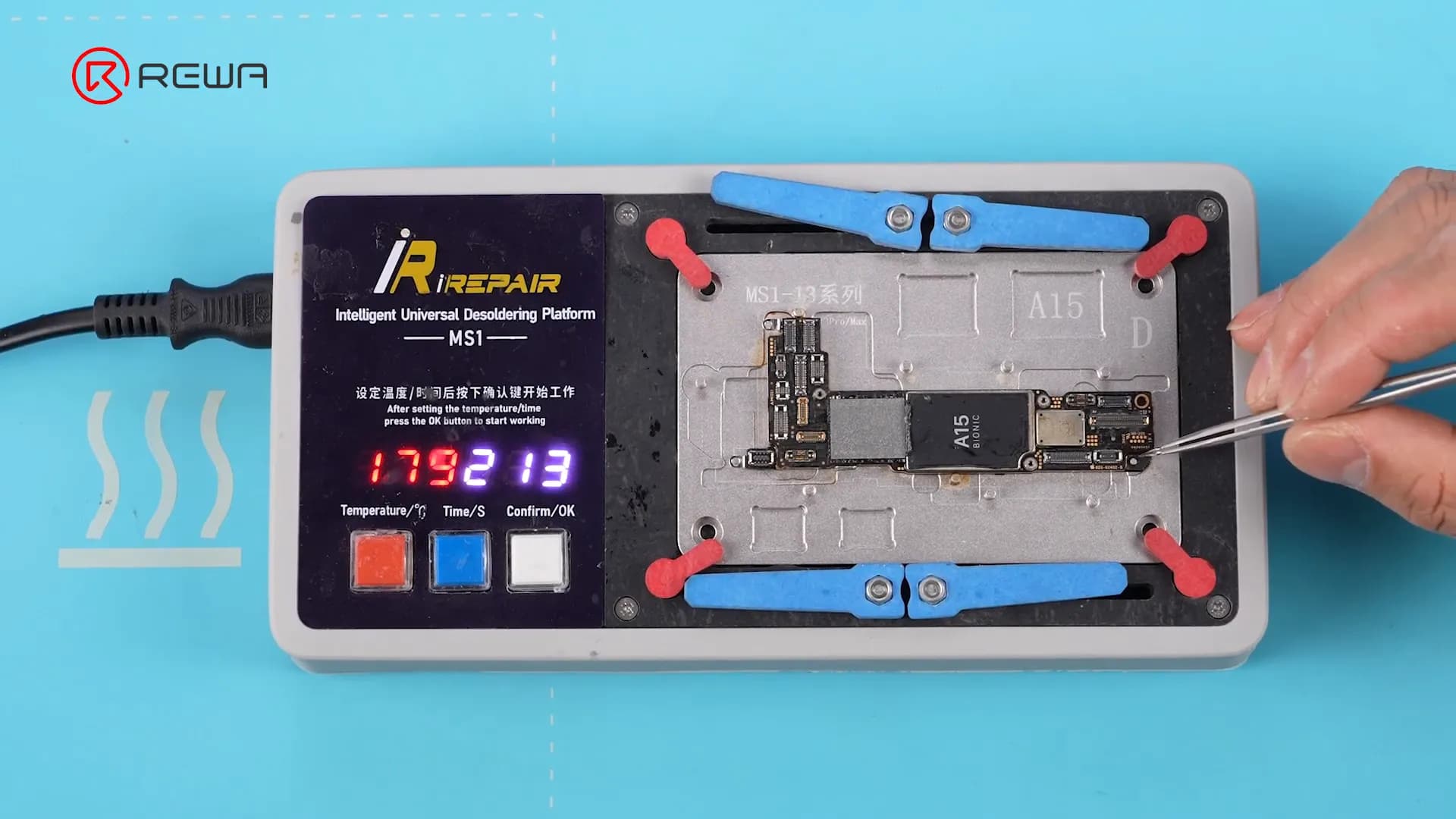

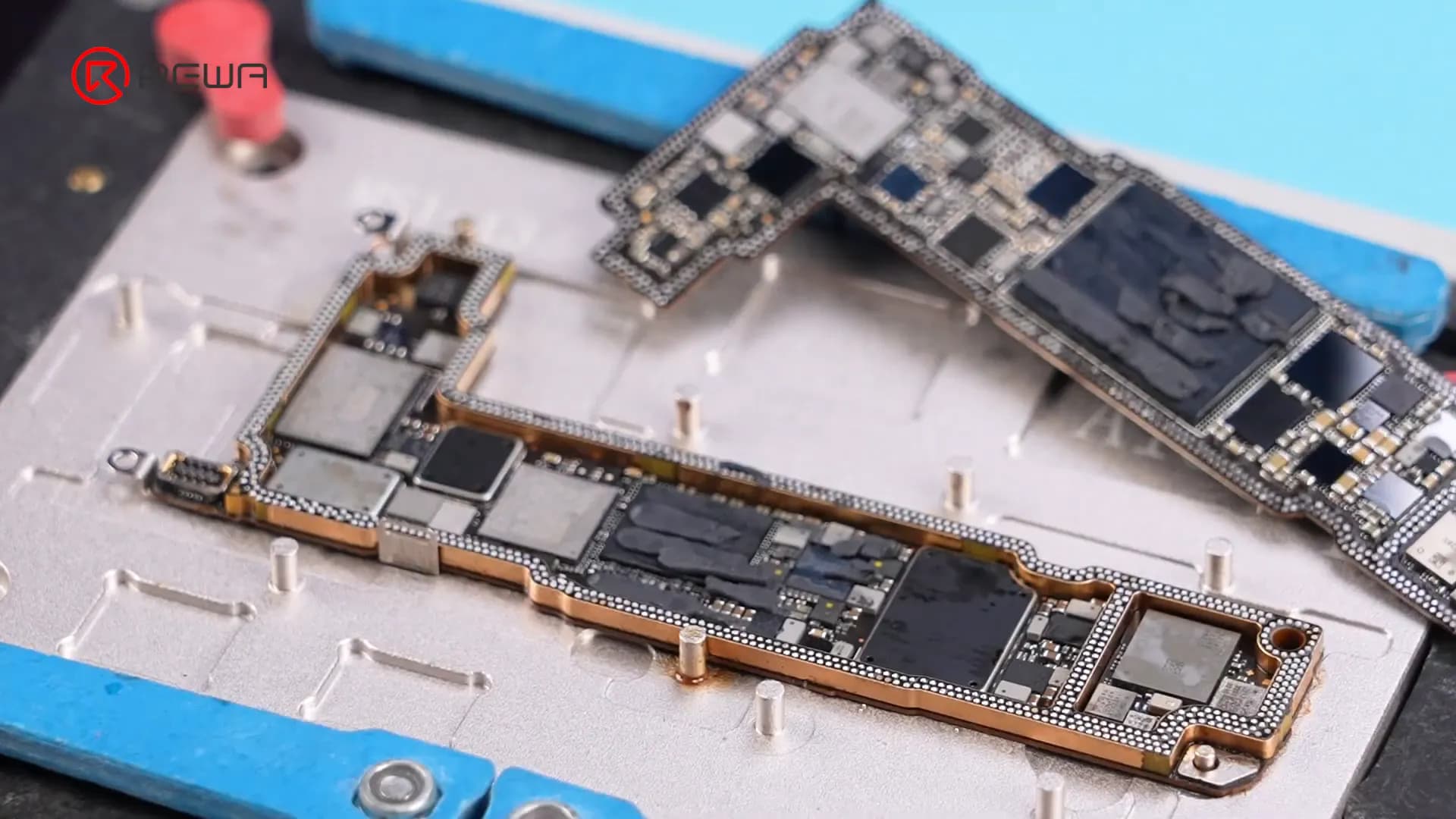

Once the motherboard is out, it’s time to test the circuits associated with the Wi-Fi module.

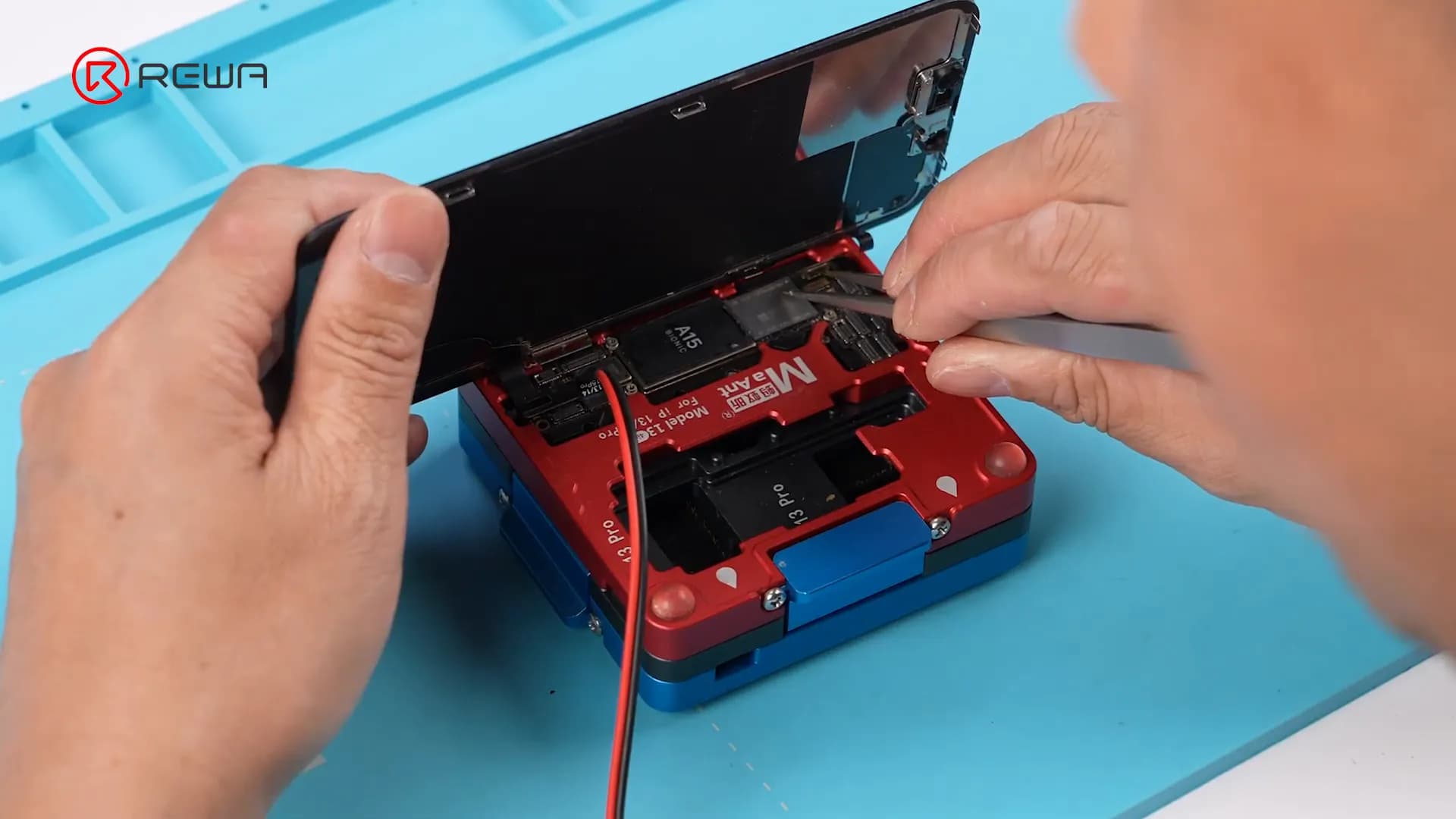

Step 3: Testing the Wi-Fi Module

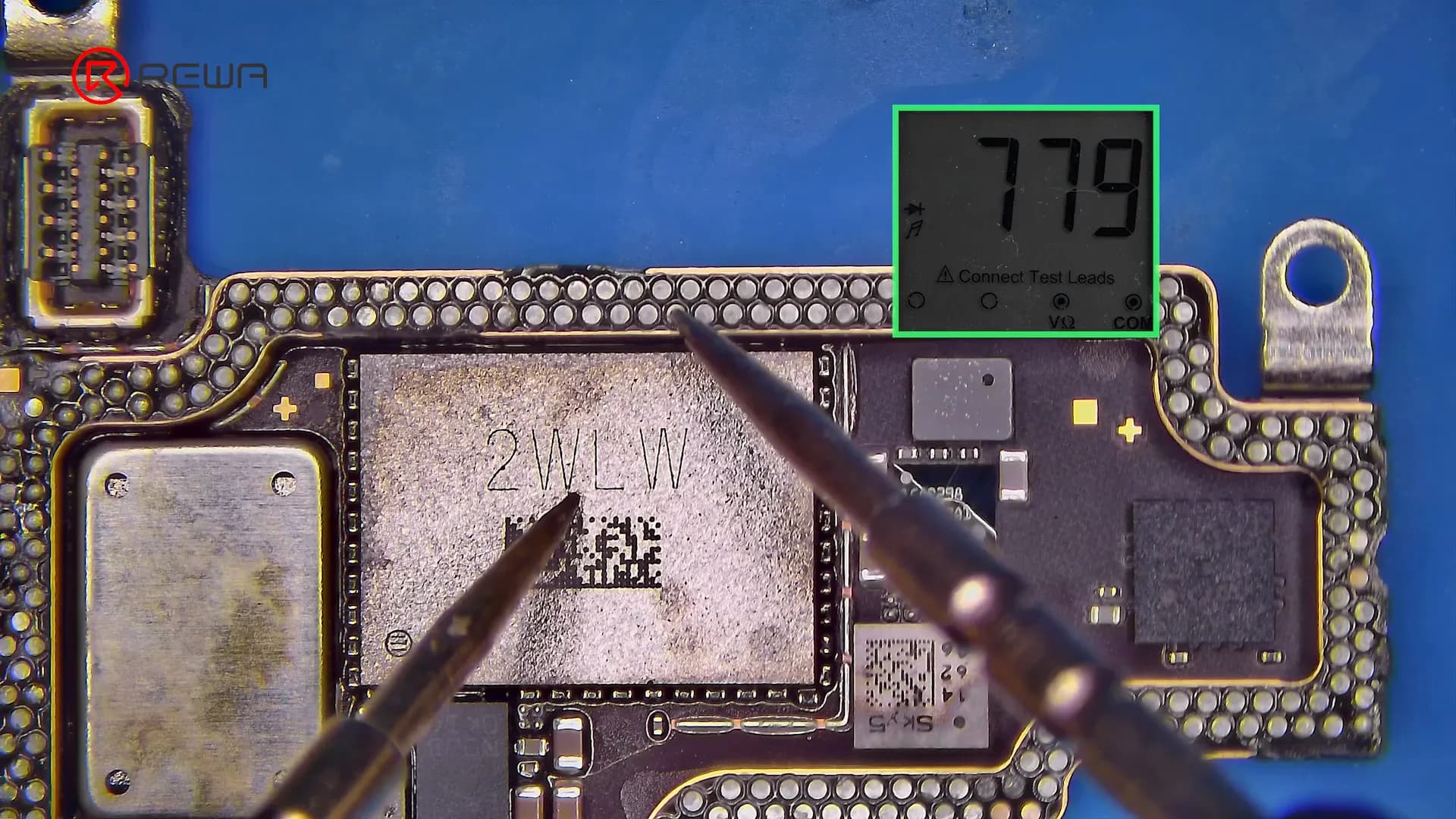

After disassembling the iPhone, the next step is to test the circuits related to the Wi-Fi module. This is crucial to verify that they are functioning properly.

Since the Wi-Fi serial number (SN) cannot be obtained simply by connecting the iPhone to programming software, we will remove the NAND chip to read the Wi-Fi SN from there.

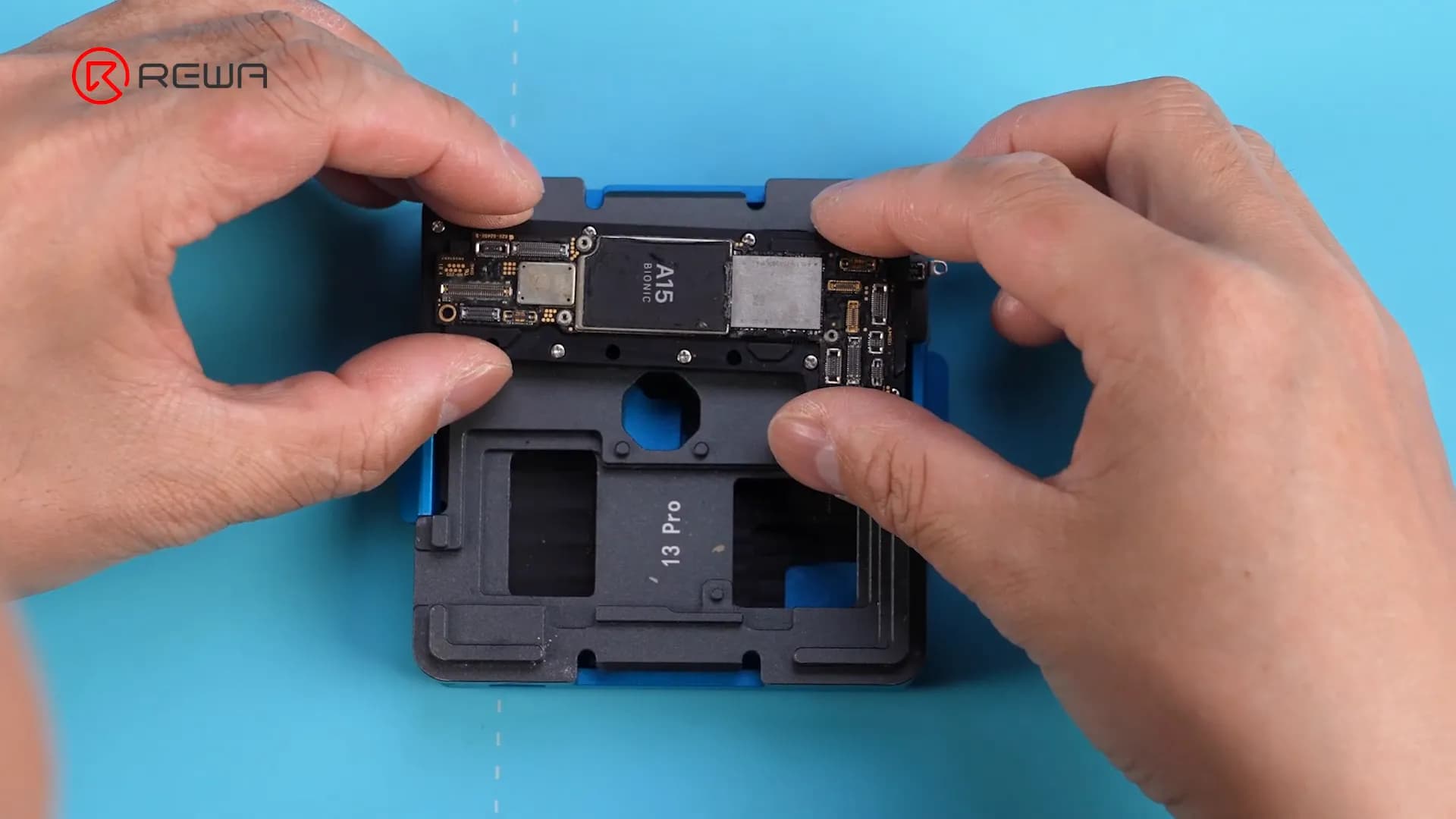

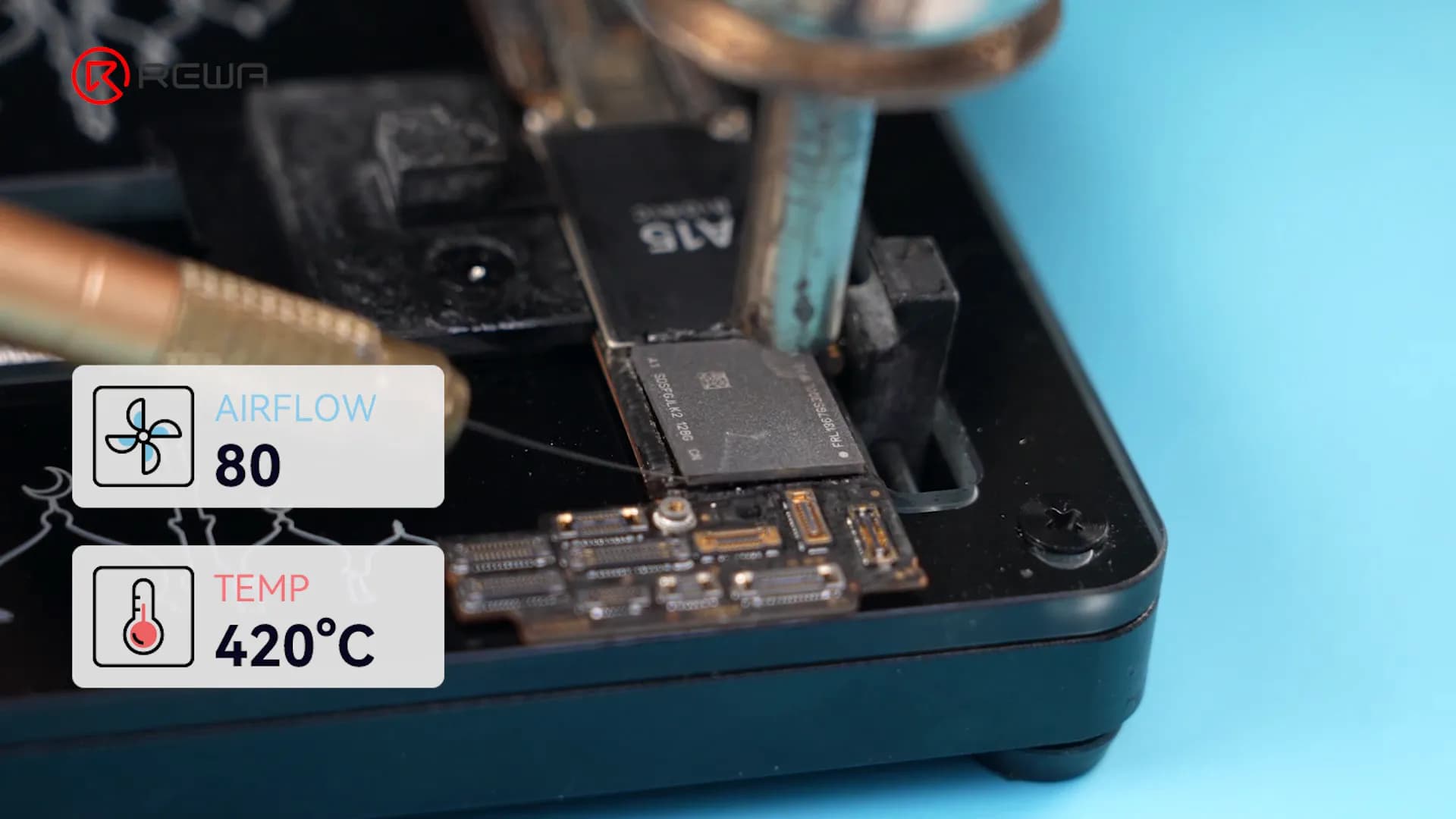

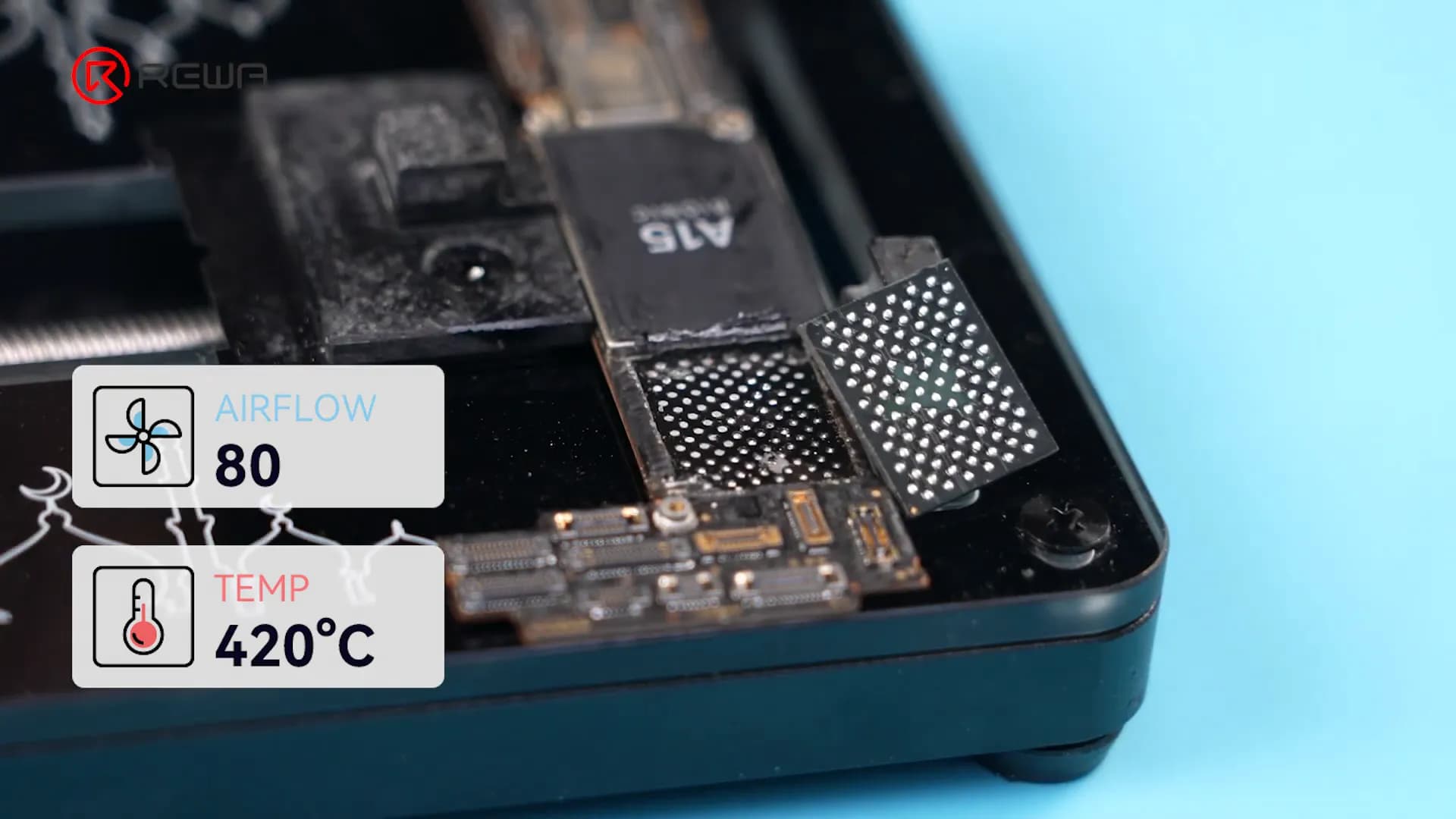

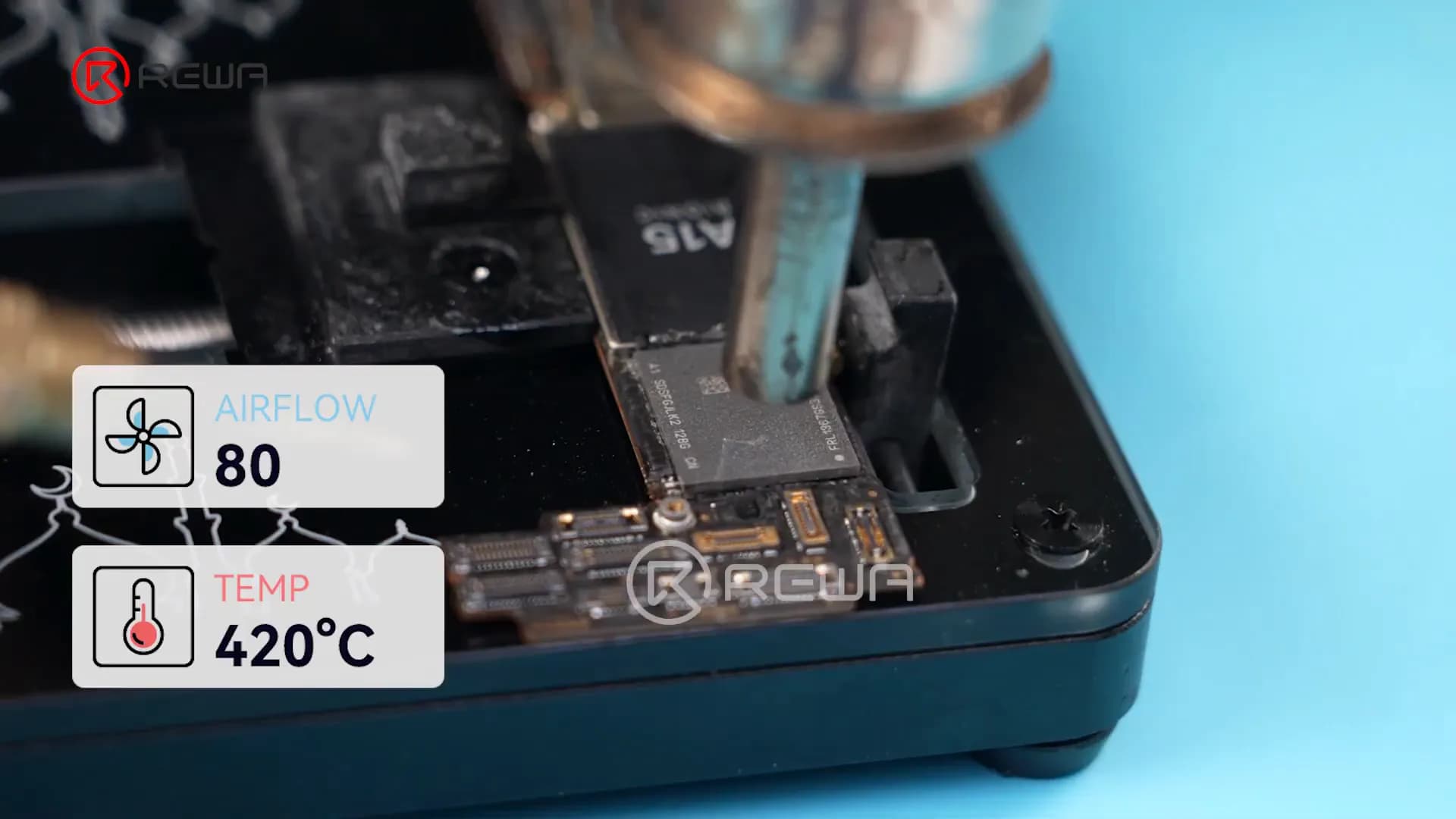

Step 4: Remove the NAND Chip

To access the Wi-Fi SN, follow these steps:

Step 5: Read the Wi-Fi SN

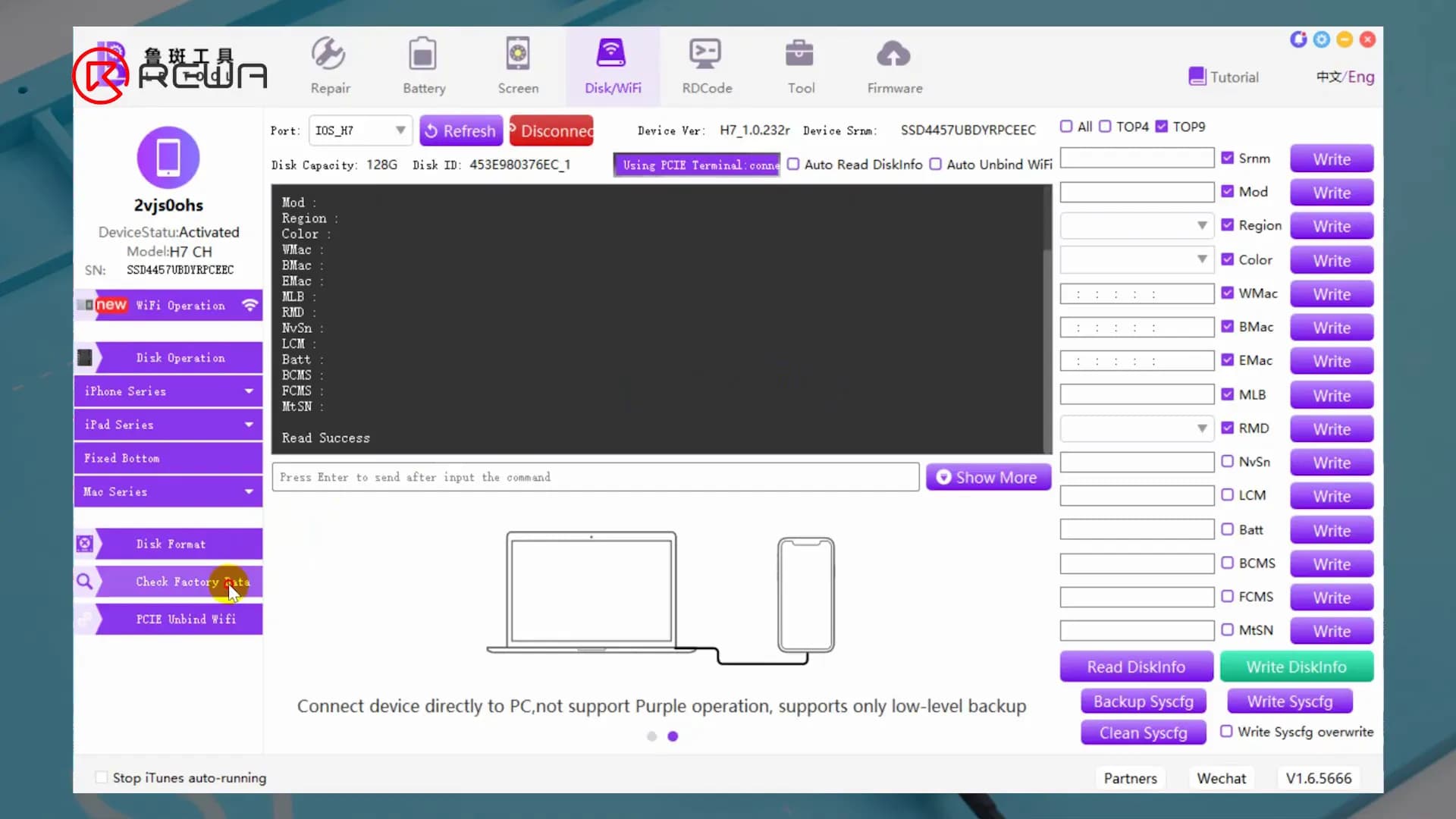

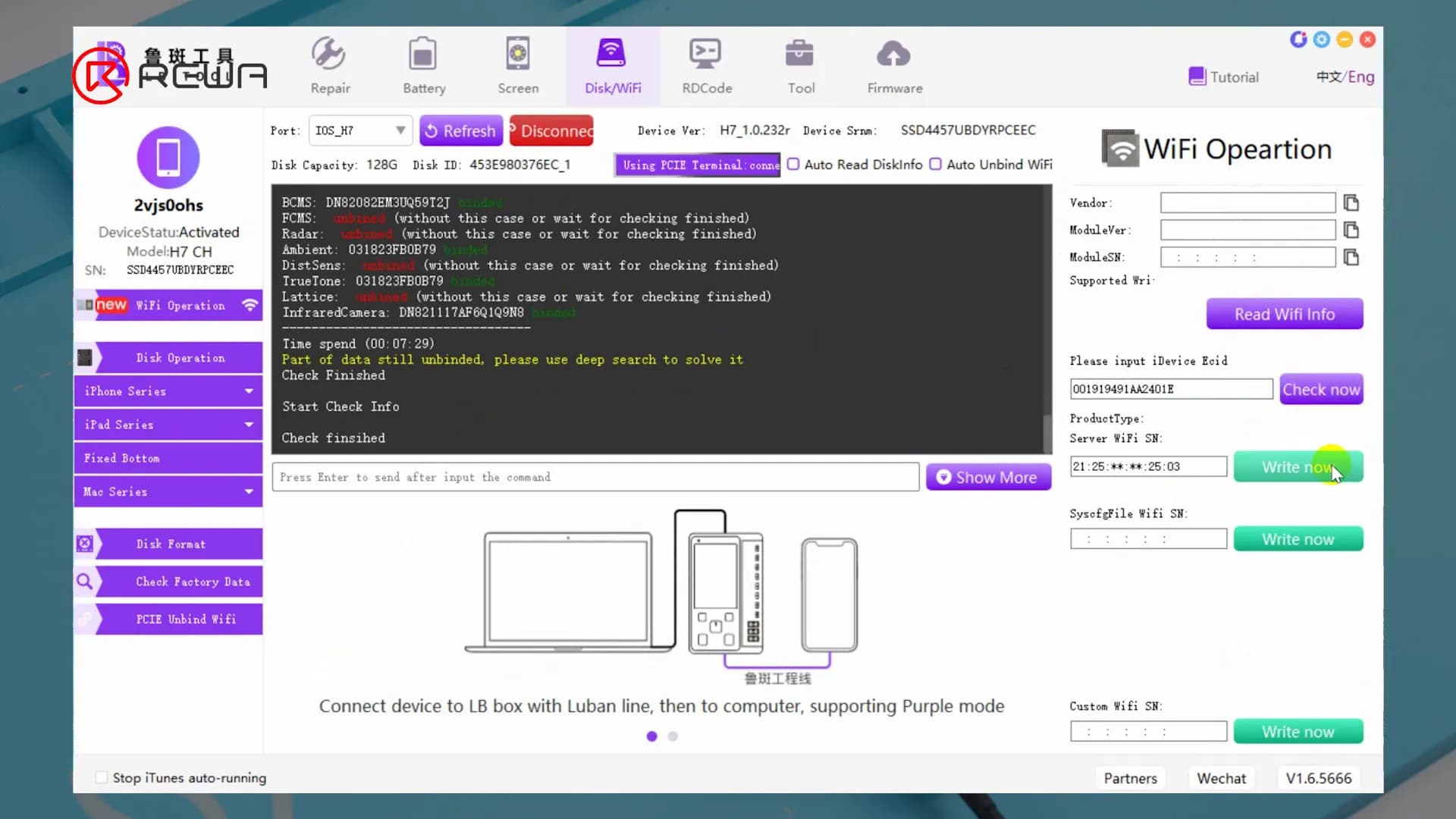

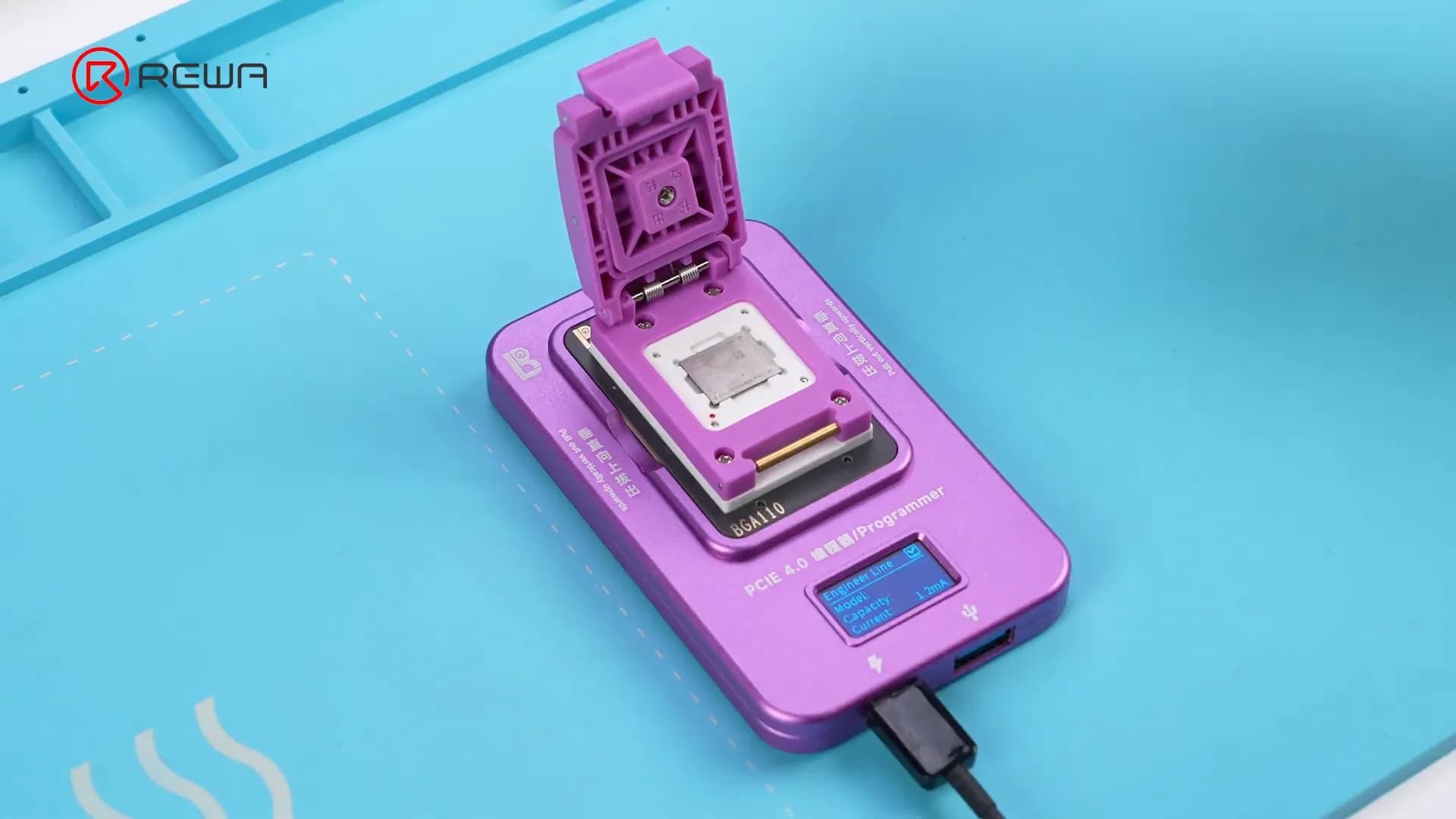

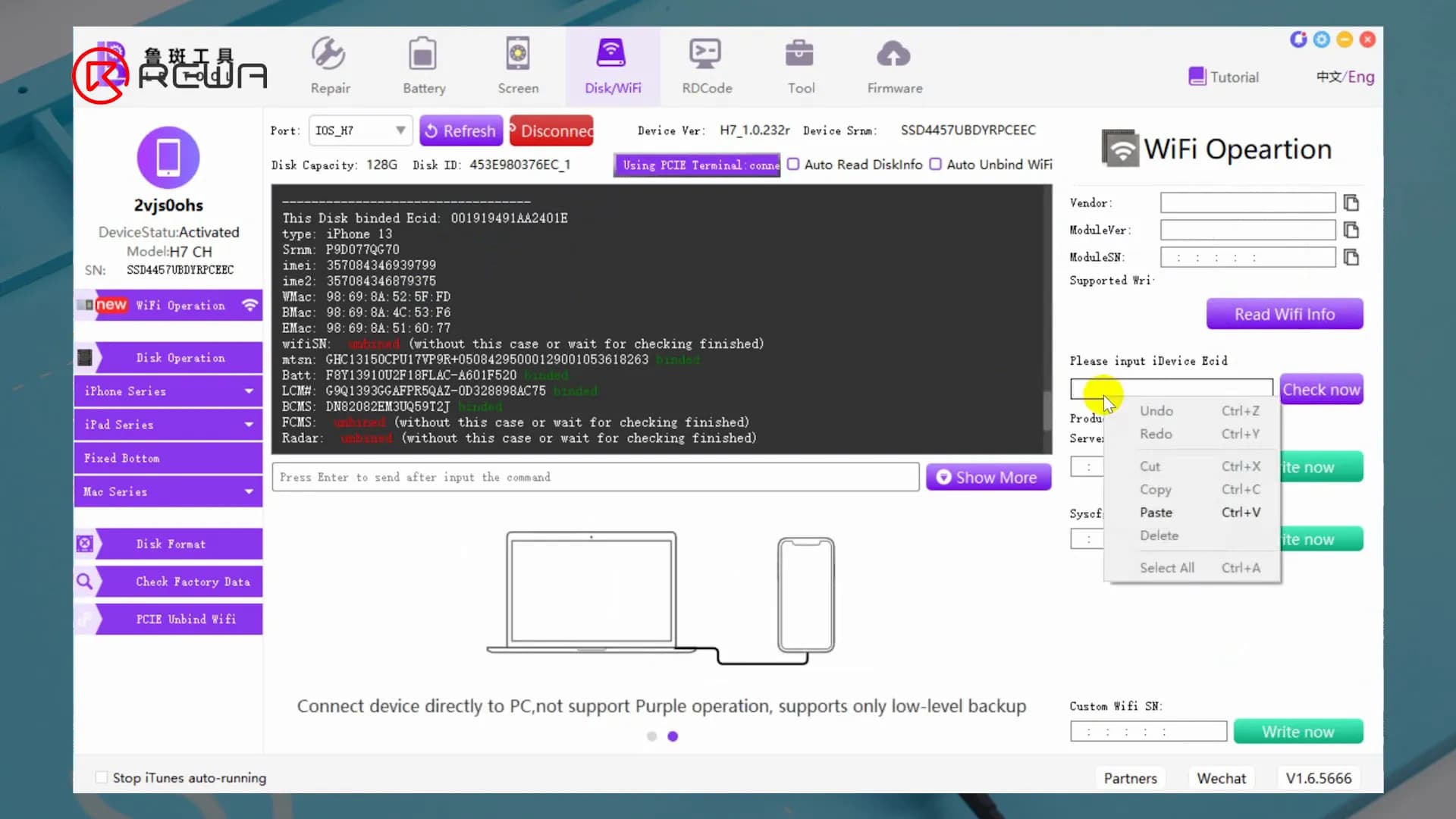

Now that the NAND chip is removed, we will use a Luban programmer to read the Wi-Fi SN:

Step 6: Write the New Wi-Fi SN Data

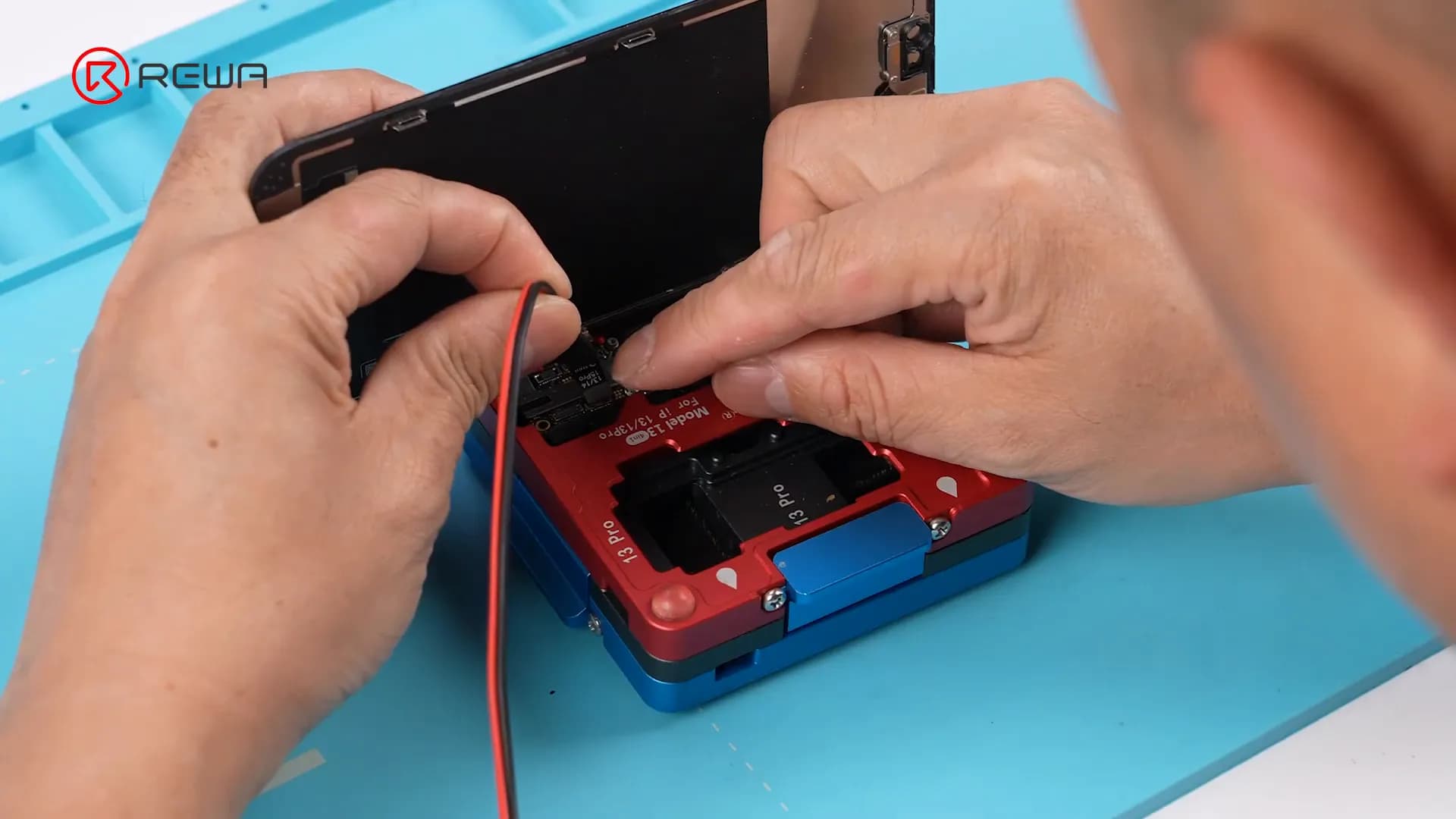

After obtaining the EcID, you’ll need to write the new Wi-Fi SN data into a new Wi-Fi module:

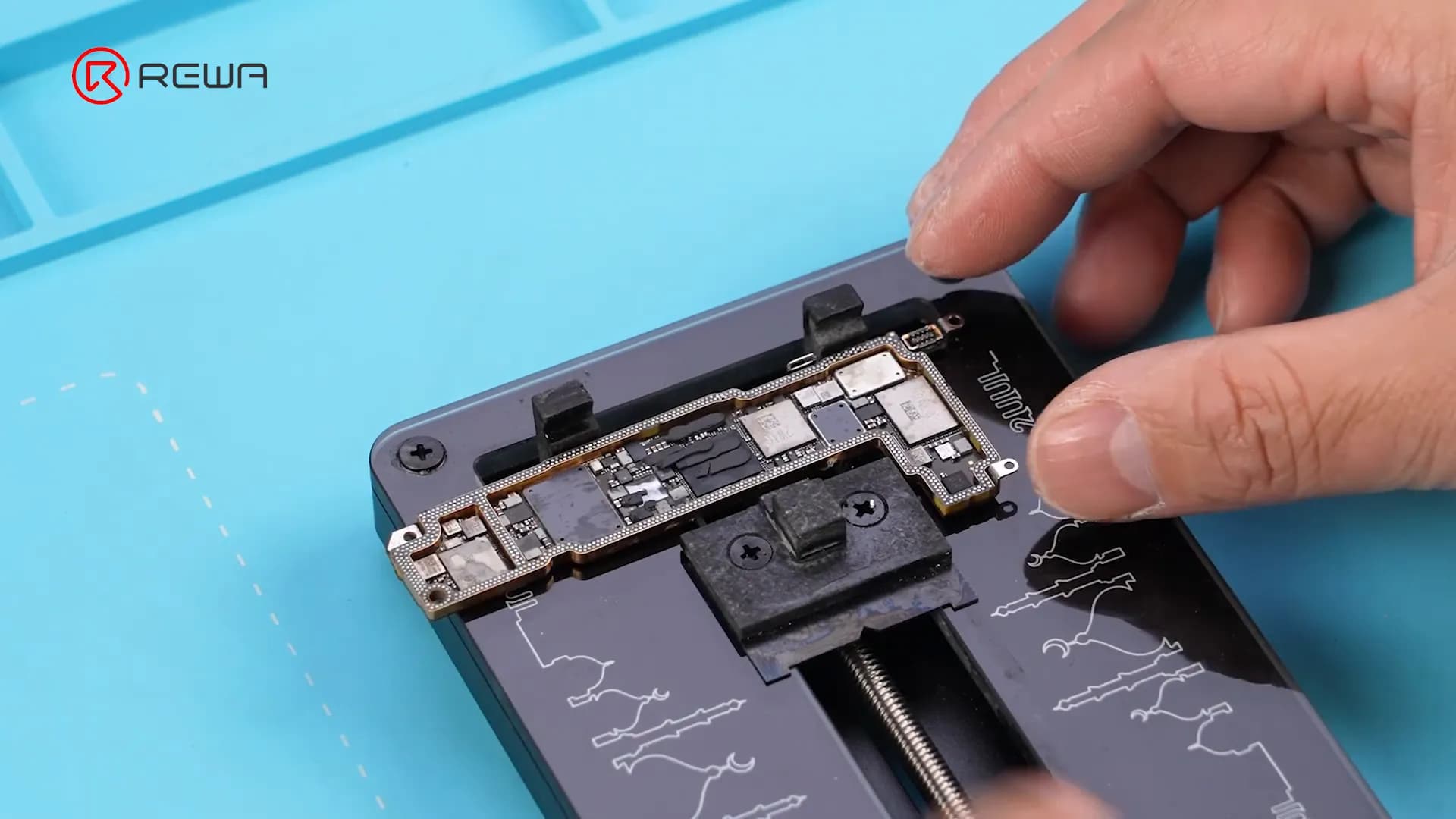

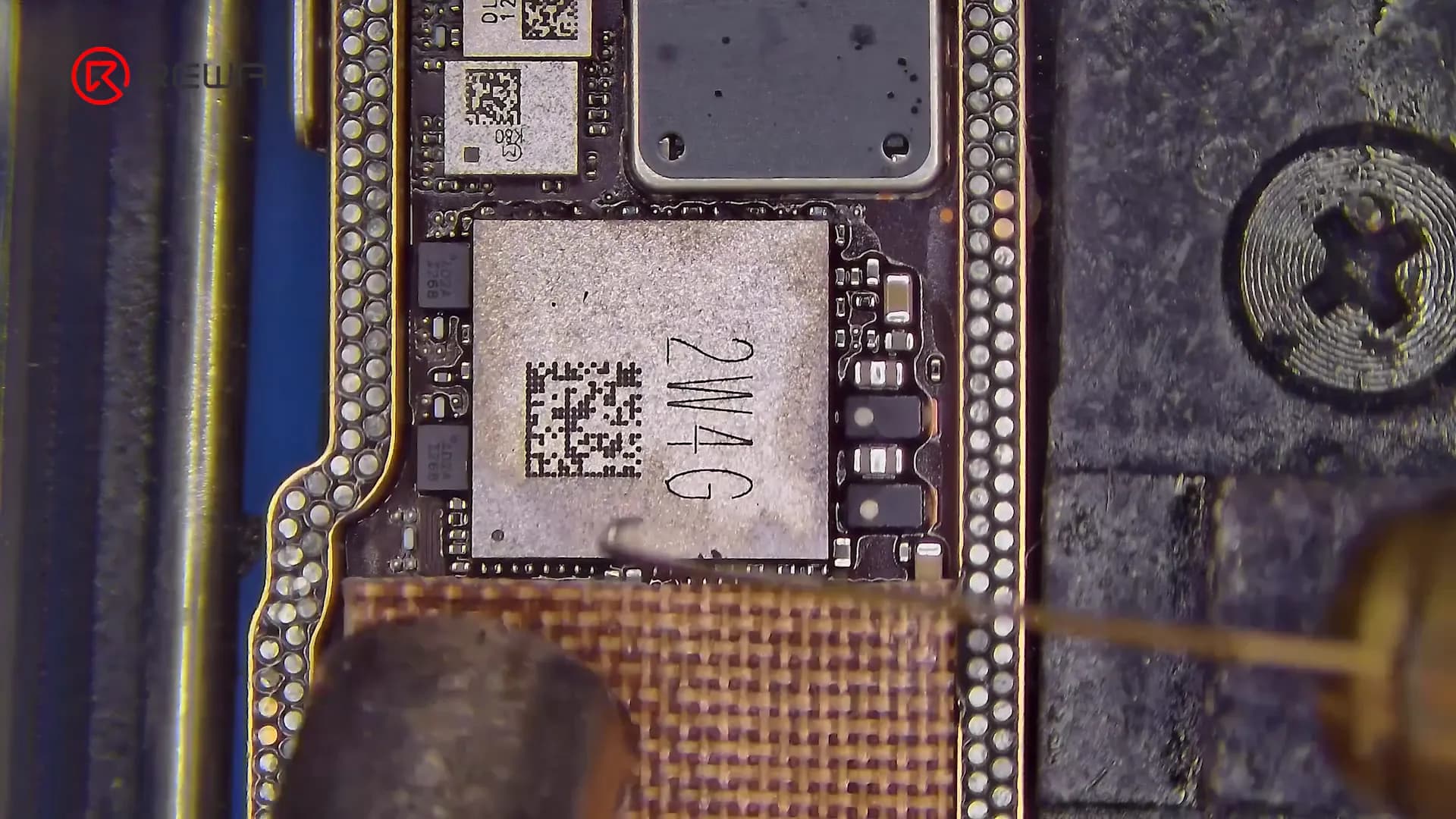

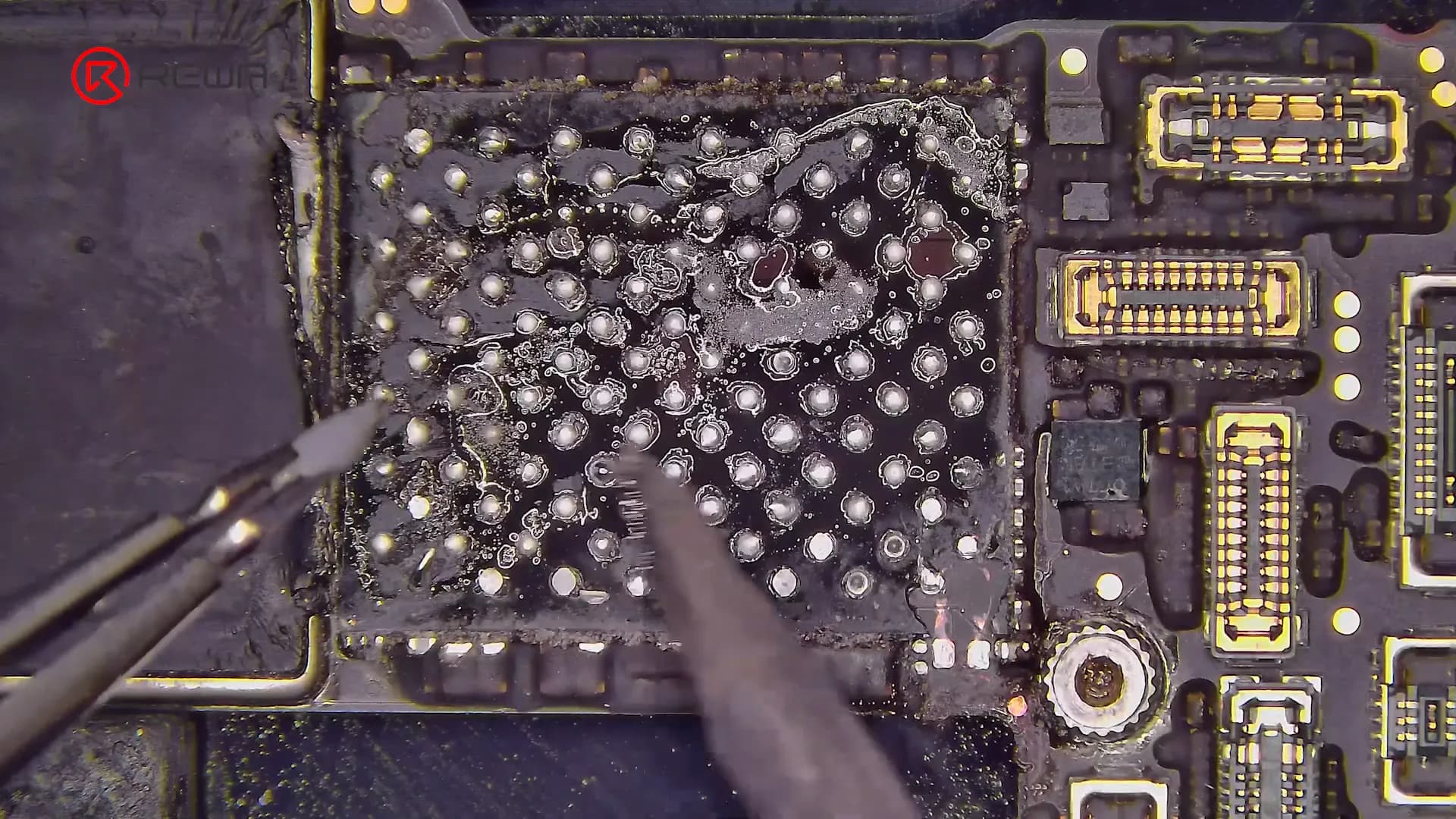

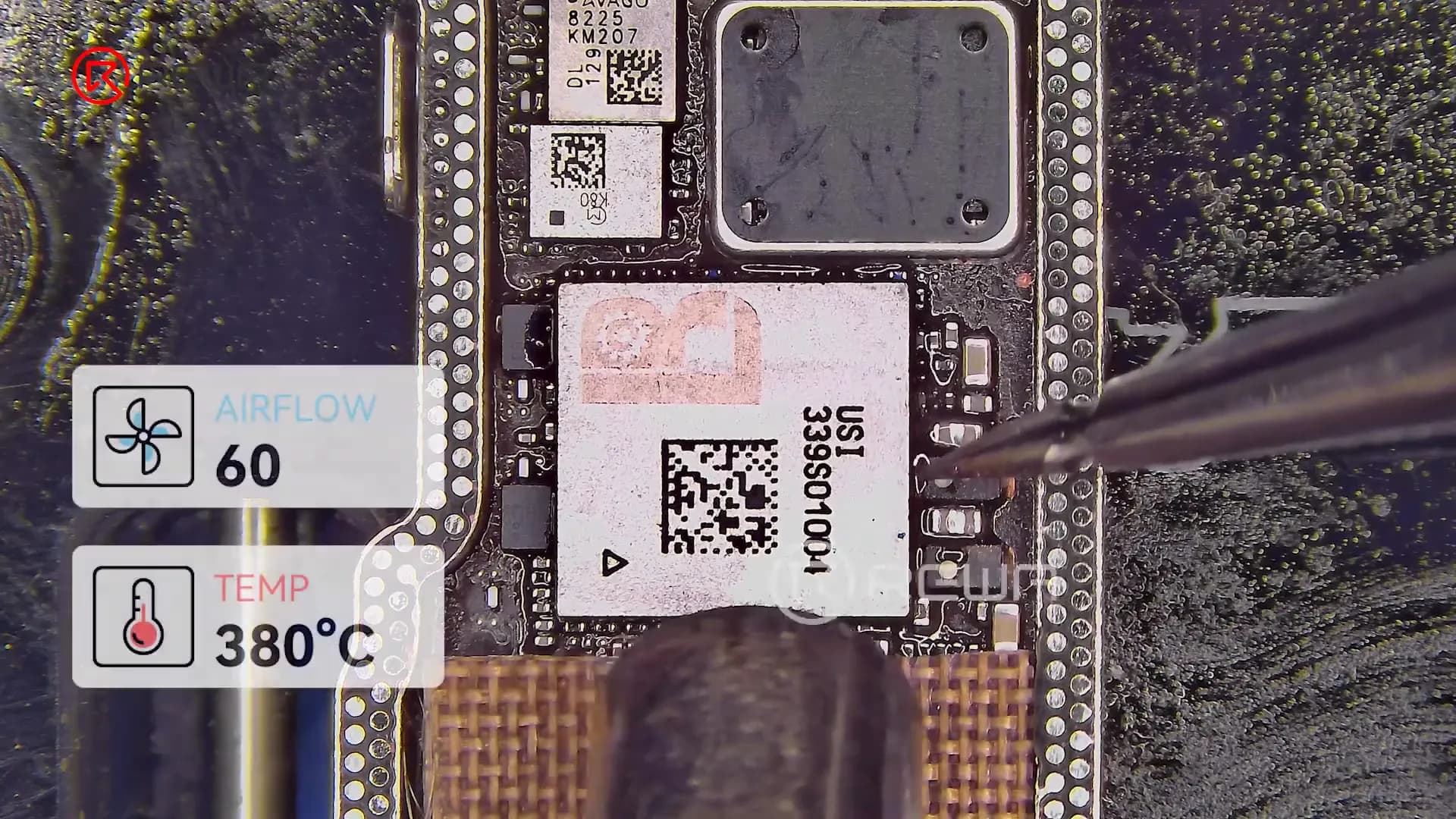

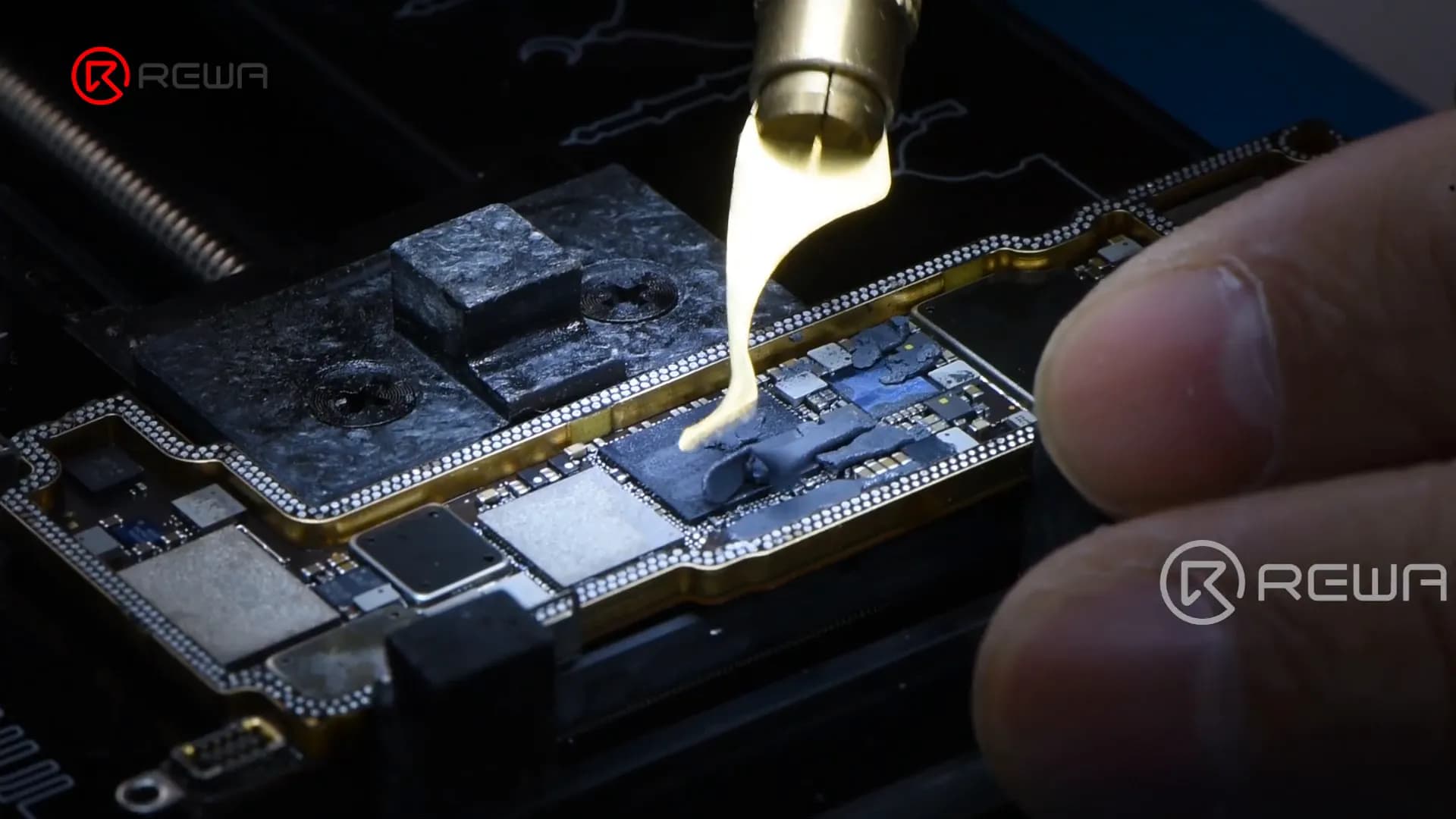

Step 7: Replace the Wi-Fi Module

With the new Wi-Fi SN written, it’s time to replace the Wi-Fi module:

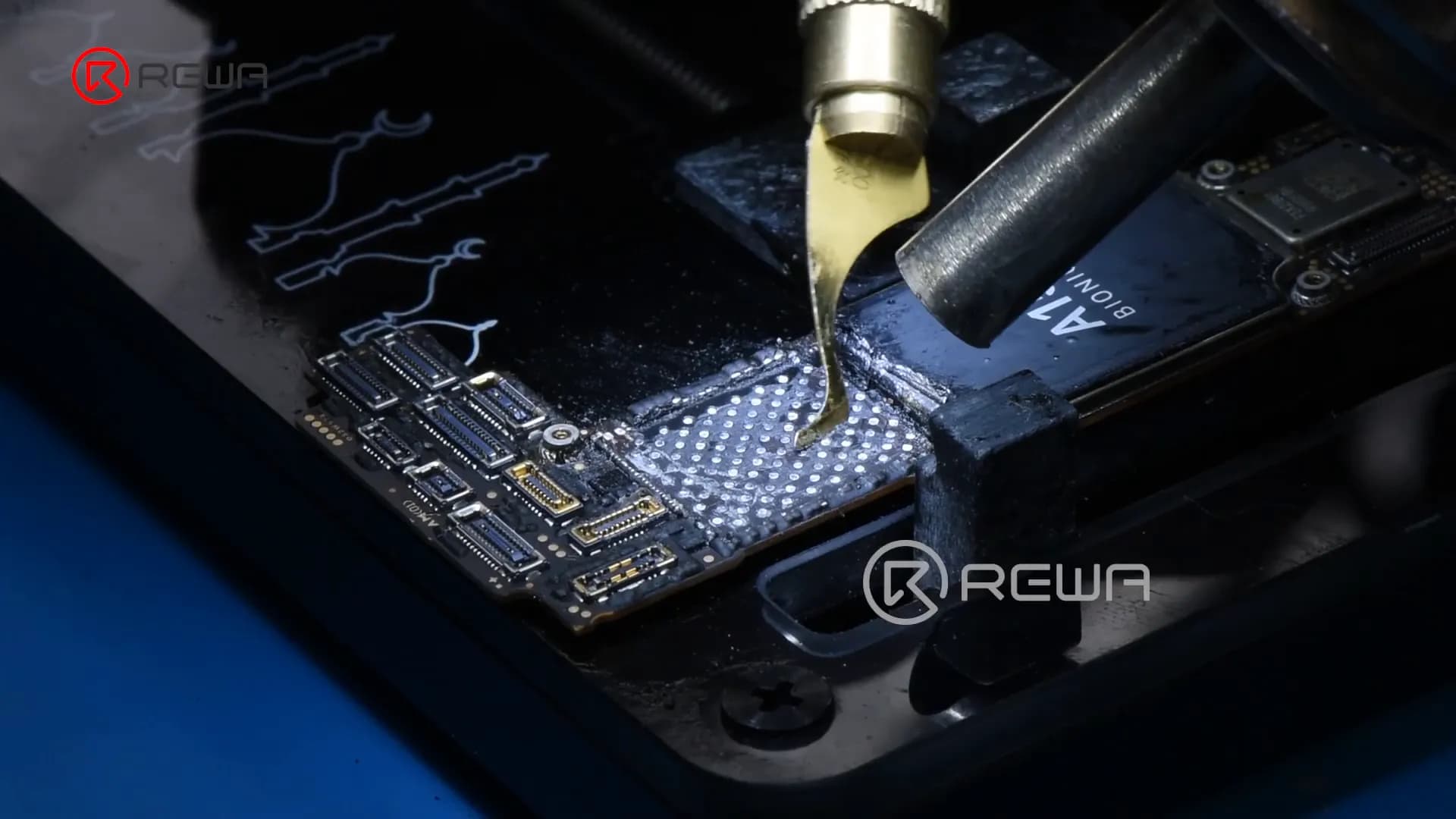

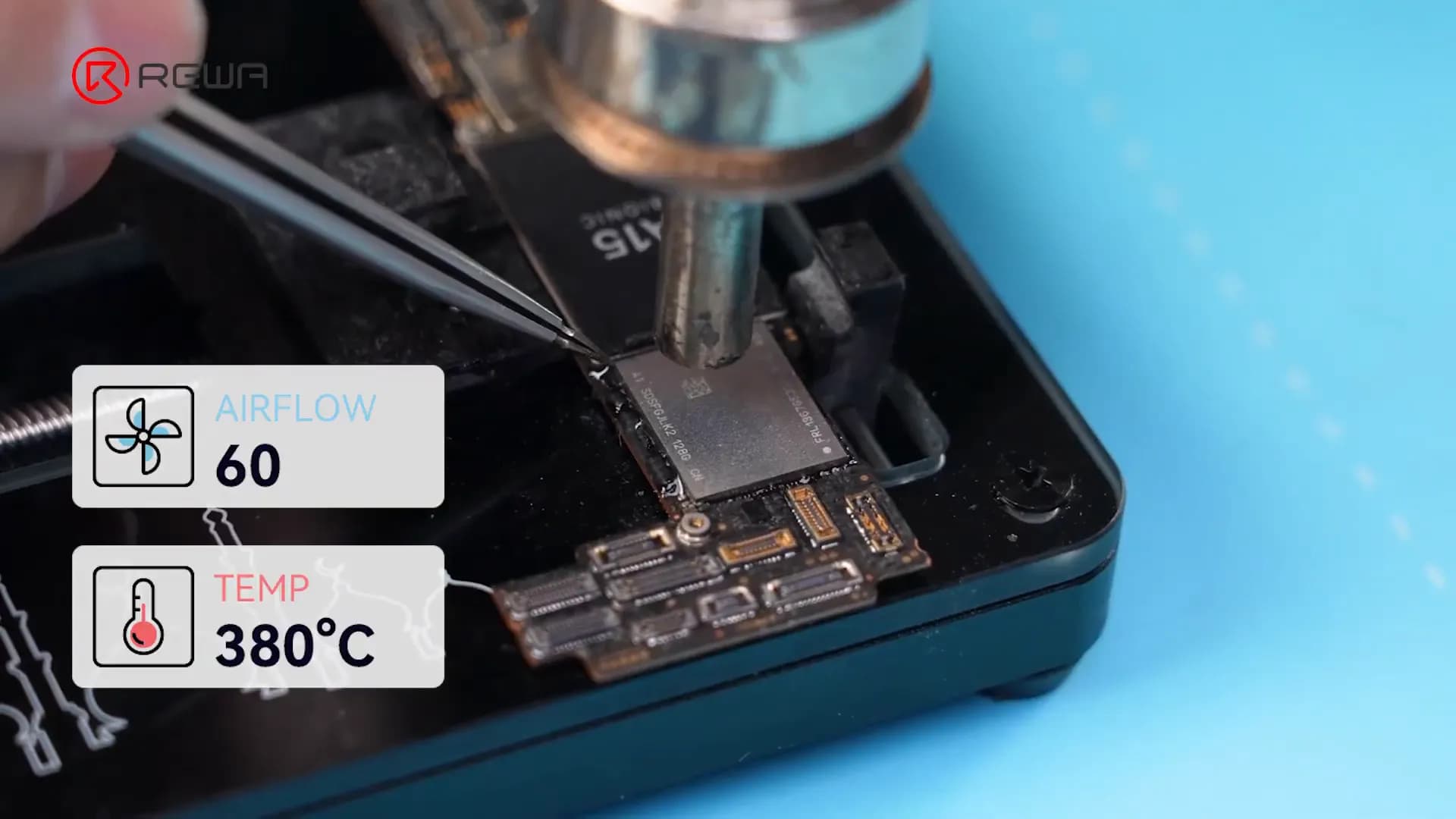

Step 8: Solder the New Wi-Fi Module

Now, we’ll solder the new Wi-Fi module onto the board:

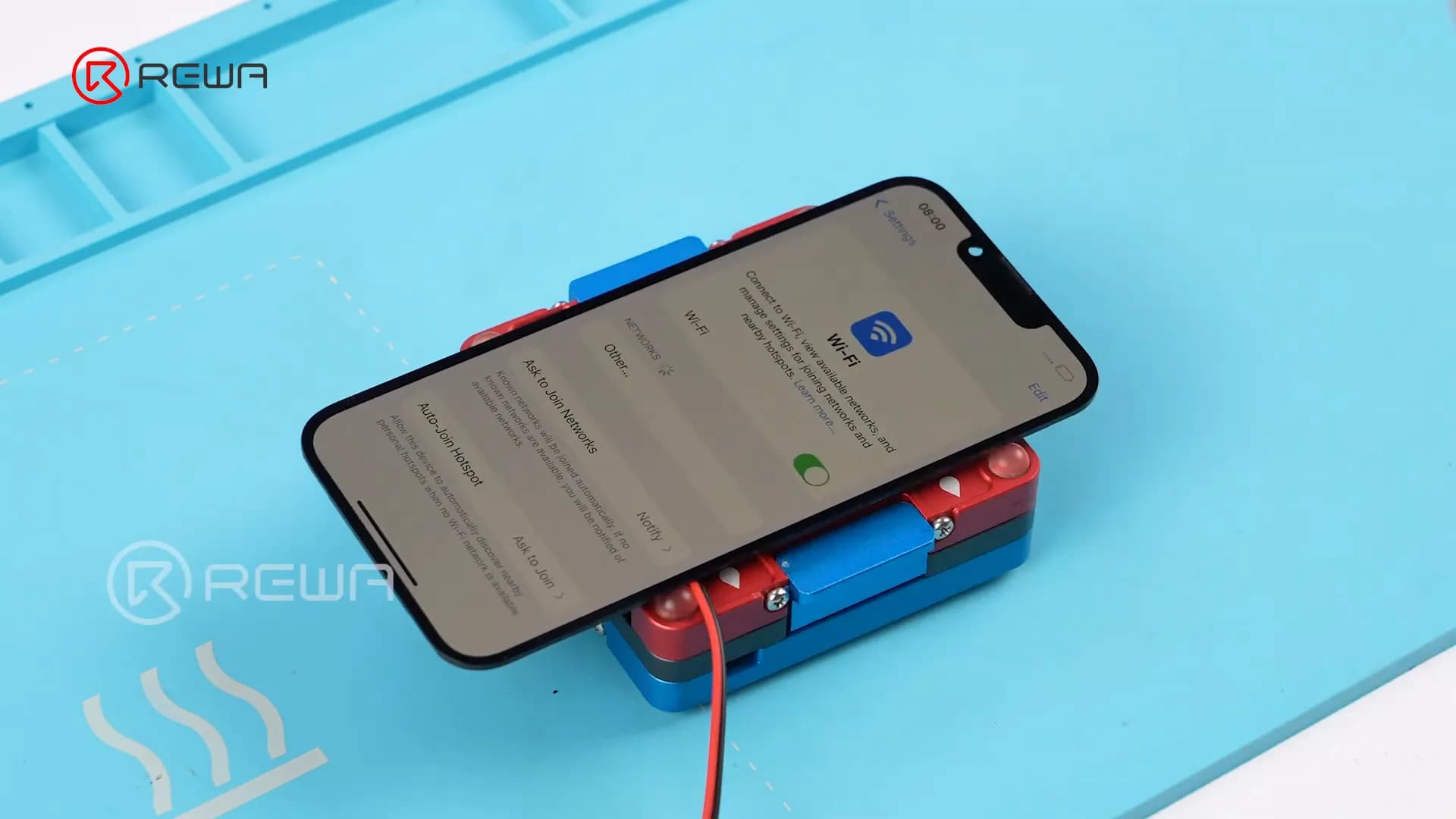

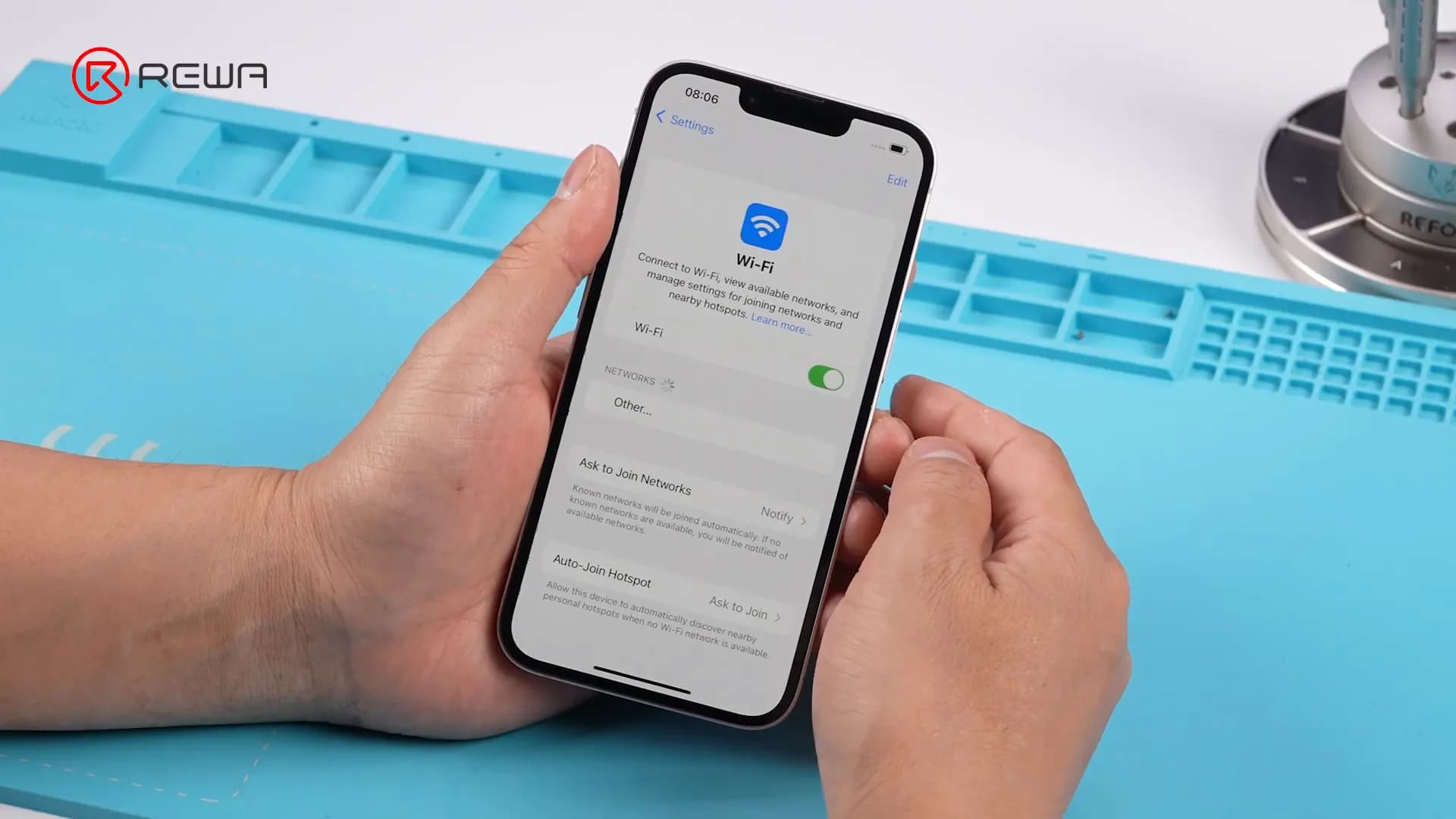

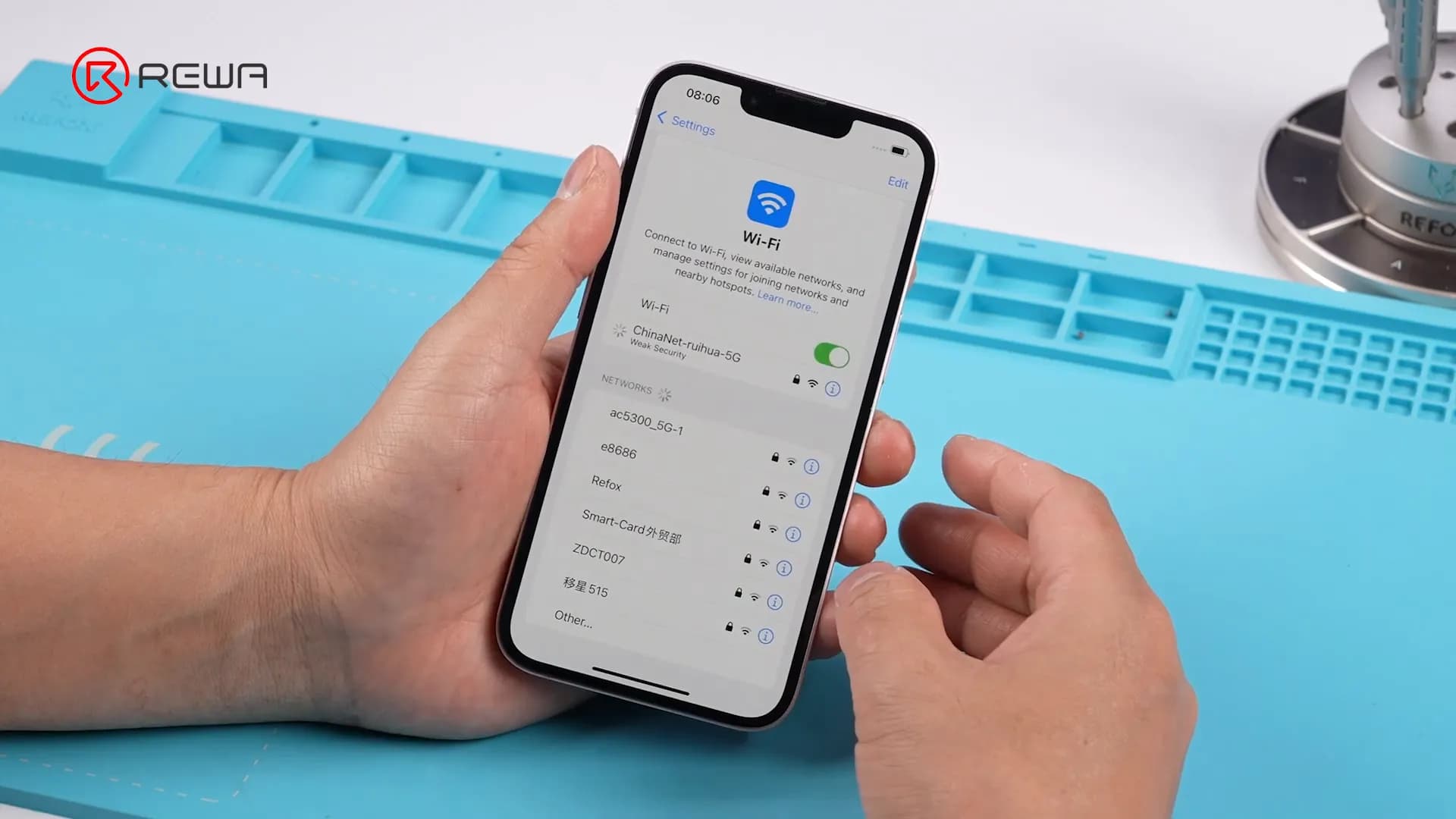

Step 9: Test the iPhone

After successfully soldering the new Wi-Fi module, it’s time to test the functionality:

Step 10: Final Assembly and Testing

Once the iPhone is powered on, it’s time to finalize the assembly:

Congratulations! You’ve successfully completed the iPhone WiFi chip repair. With the new module installed, your iPhone 13 should now have functioning Wi-Fi once again. Thank you for following this guide!
