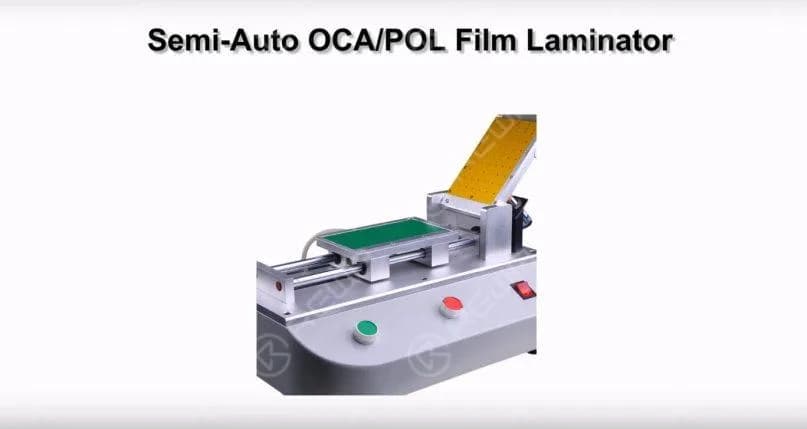

Let’s introduce a new type of Semi-Auto OCA/POL Film Laminator Machine. It is available now. This machine is suited for the lamination of OCA and POL. Automatic operation and precise position matching can effectively improve operation productivity and quality.
Here is the main specification: Voltage: 110/220V ScreenSize: suitable for screen size between 3.5″-6.0″N.W.: 12KGG.W.: 14KGDimension: 46x25x22cmPanel Size: 16x9cmWorking Environment: 20-30℃, Dust-free Room
As well as operation steps:
1. Connect to the air compressor and plugin
2. Place the LCD on the platform below
3. Place the right series OCA to the LCD and adjust the LCD outline
4. Click the button to suck, suck the OCA with putting the up platform down slowly
5. Put up the up platform and tear the OCA protector
6. Place the up platform to the LCD slowly(under draught slightly)
7. Click the start button, loading platform below would move itself
8. Put up the up platform.
Welcome to watch the operation steps through our YouTube Channel:
For more cell phone repair tools and LCD/Bezel separator machine, please go shop.rewa.tech to get.
Any questions and suggestions please contact us service@rewa.tech.
