ITIt is well known that Apple has added MagSafe to the iPhone 12 series. While trying to separate the back glass, we found that the magnets were glued to the back glass. Undoubtedly, the difficulty to refurbish the iPhone 12 series back glass has accordingly increased. Thanks to our rich experience and proper tools, we finally figured out the right way to fix the iPhone 12 back glass.

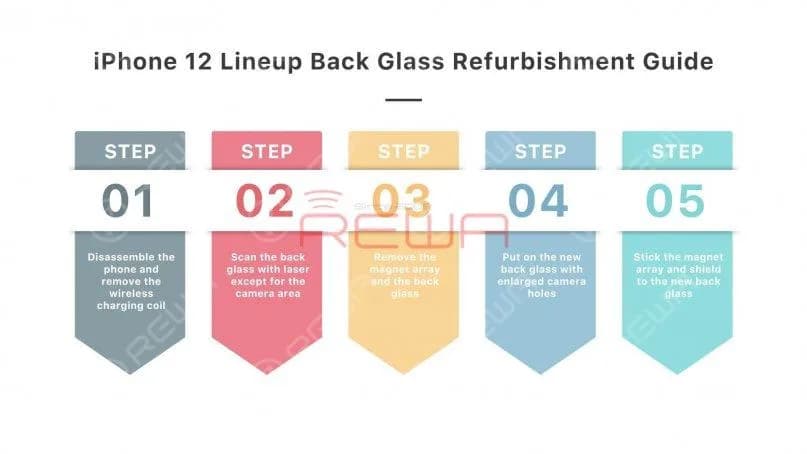

The picture above gives a clear guide about how to fix the iPhone 12 back glass.However, the journey to search the right way was not easy. We made the first attempt and almost failed. Scroll down and you will see what challenges we have come across.
Step 1: Laser marking

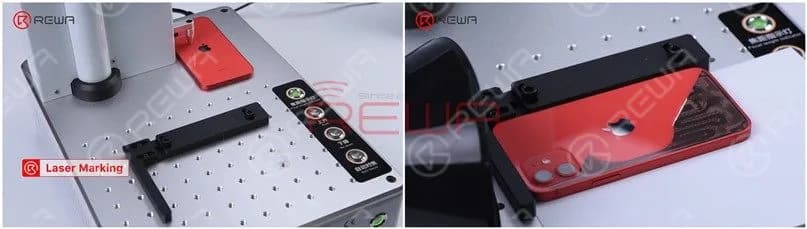

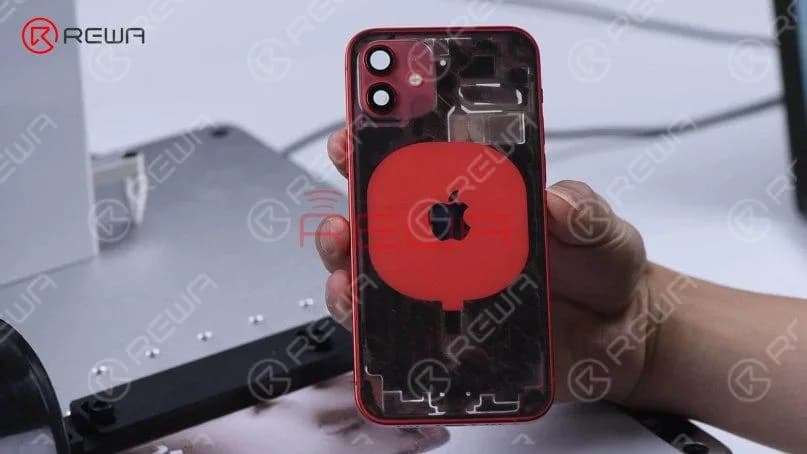

Put the back glass of iPhone 12 under the focus positioning probe of the laser marking machine. After positioning, mark the back glass area except for the camera and wireless charging area. We haven’t marked the wireless charging area to avoid damage.
Step 2: Back glass separation

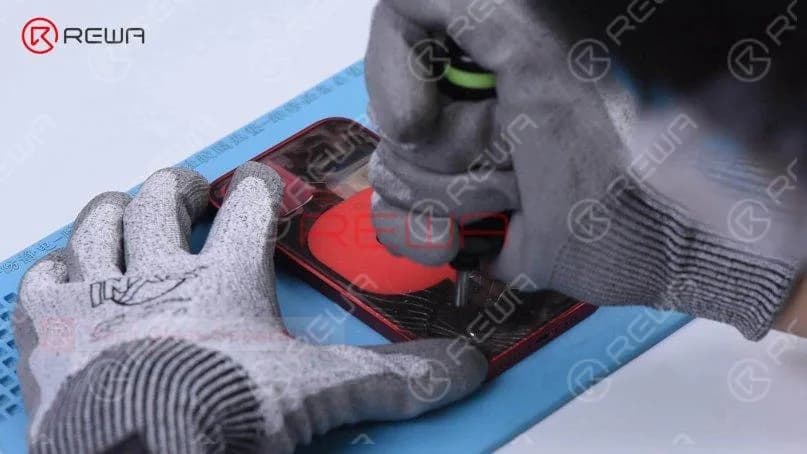

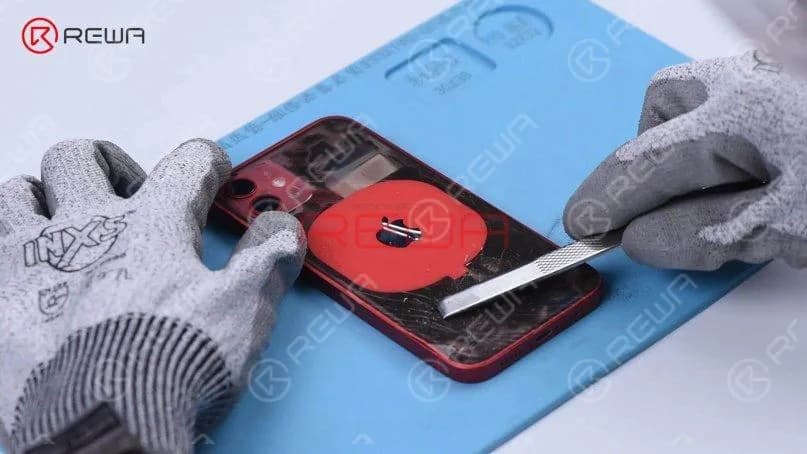

A new member, Glass Breaking Pen, is coming to our back glass refurbishing tools family. Break the back glass with Glass Breaking Pen and remove the shards with Pry Bar.

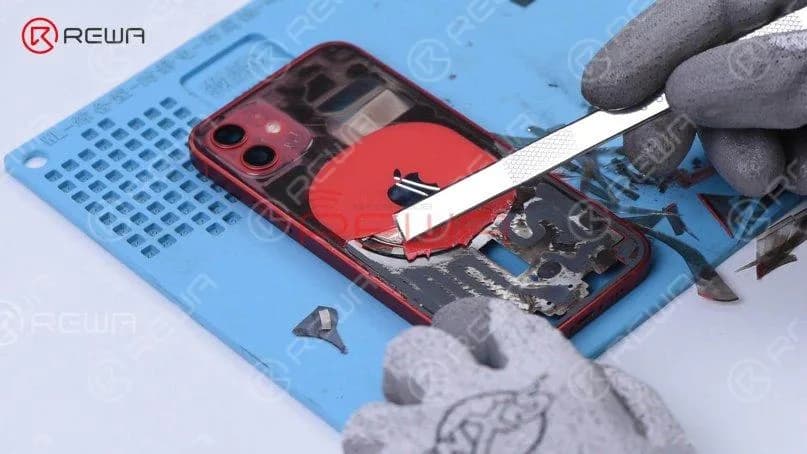

When breaking the wireless charging area, you can see that the magnets are glued to the glass. Hence the back glass fix solution of iPhone 11 is not suitable for iPhone 12.

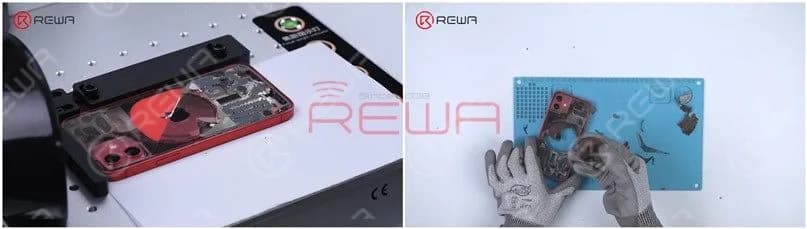

If we stick to our old method, all magnets will fall off and become separate. The subsequent recovering process will be harder. In addition, we can’t mark the wireless charging area directly with a laser to avoid damage. We should remove the wireless charging coil and then mark. The magnet array and shield can be easily removed after marking.

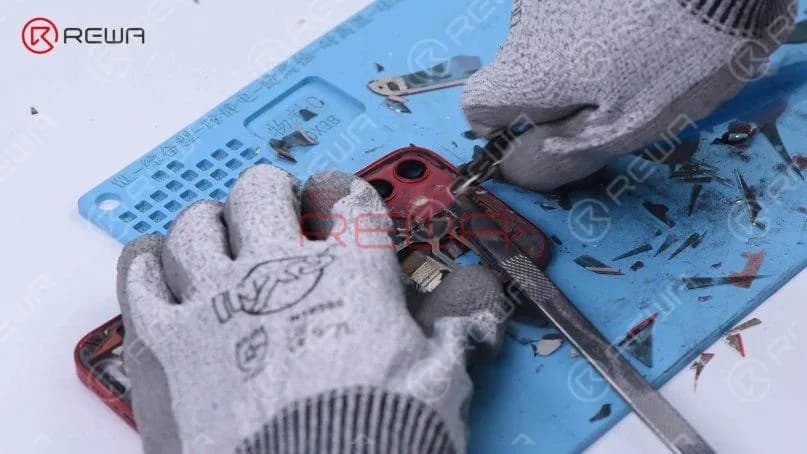

Then we remove the glass around the camera. Please do not touch the camera lens.

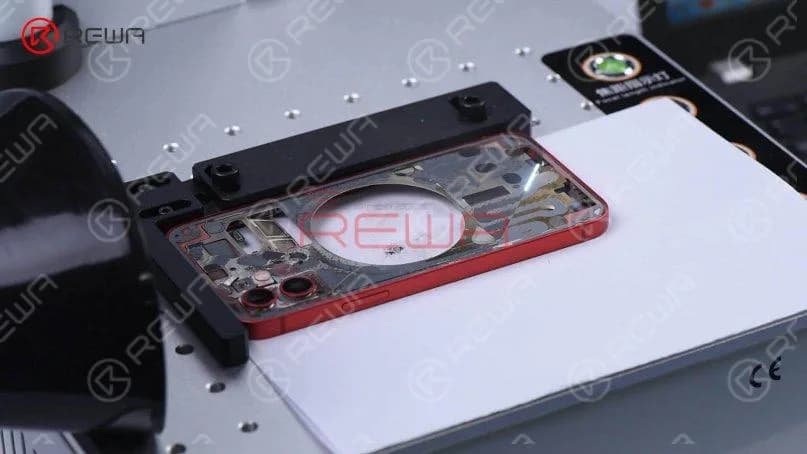

After the glass is completely removed, mark the back again to remove residual adhesive.
Step 3：Back glass gluing

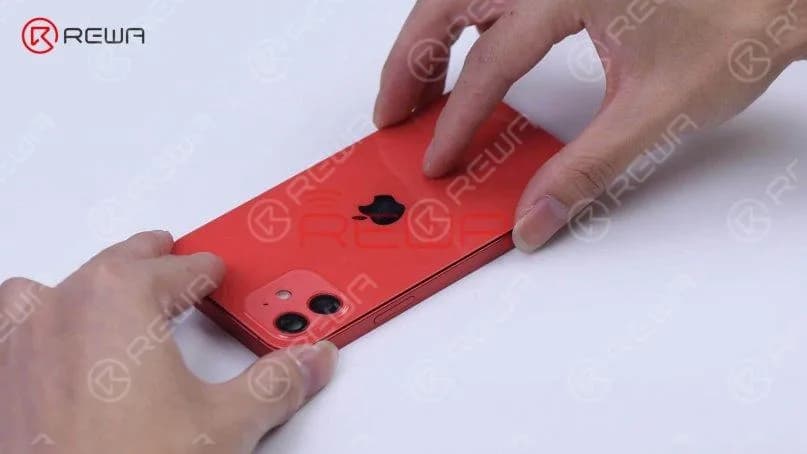

Clamp a new back glass with enlarged camera holes down to the middle frame first to see if it fits.

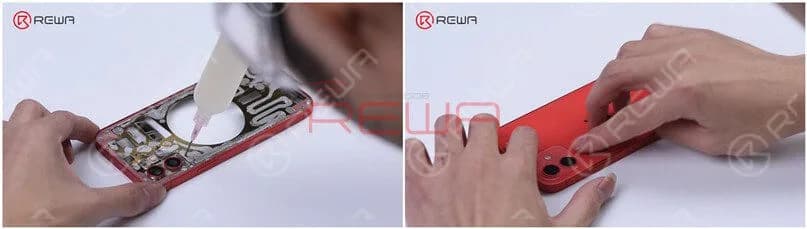

Apply some adhesive evenly on the middle frame. Put the back glass in position and press it gently against the middle frame.

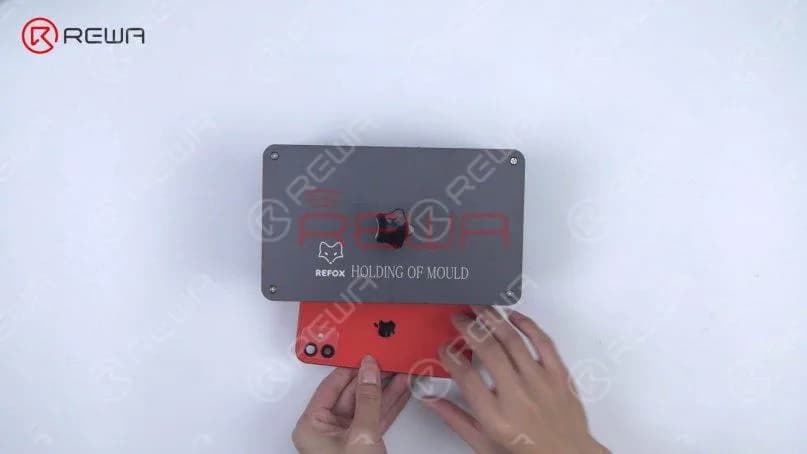

Press the back glass further against the middle frame with Press Clamp.

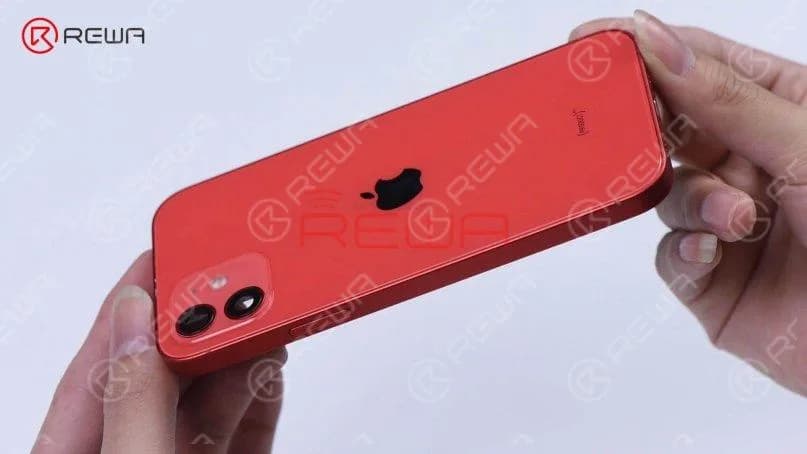

The adhesive has set after 10 minutes. Take the back cover out. Check if the gap is too large, if there is adhesive overflow, and if the fit is smooth.

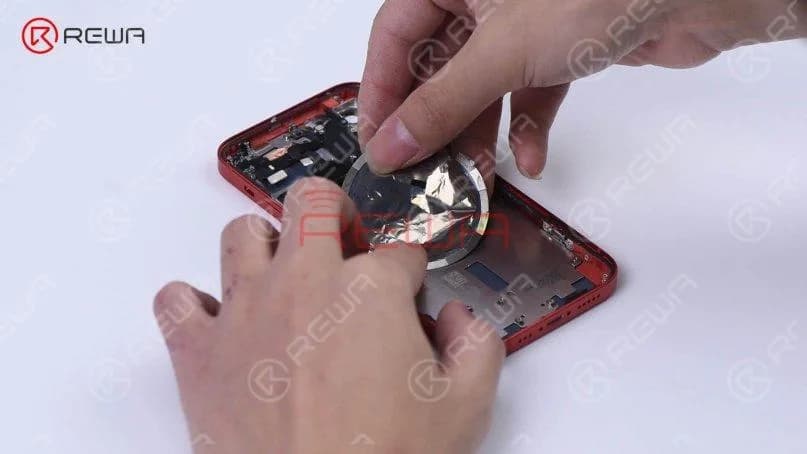

After the back glass gluing is finished, we install the magnet array and shield. Apply some B-7000 Adhesive on the magnet circle to adhere the magnet array to the back.

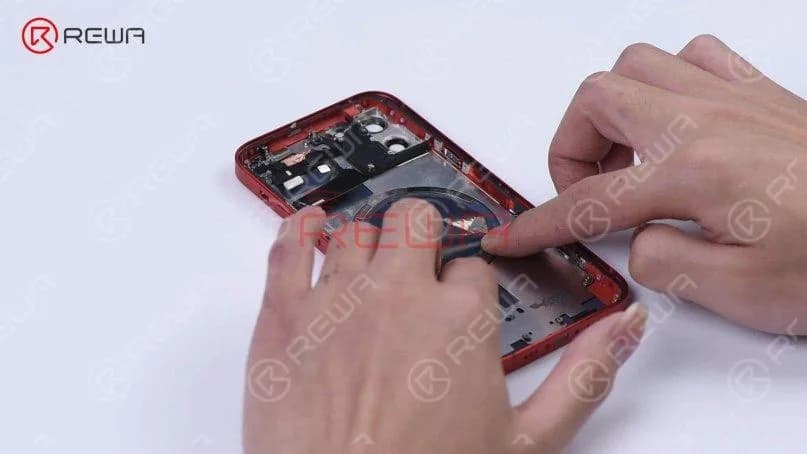

Please make sure that the opening of the magnet array is placed in the right position as in the picture.

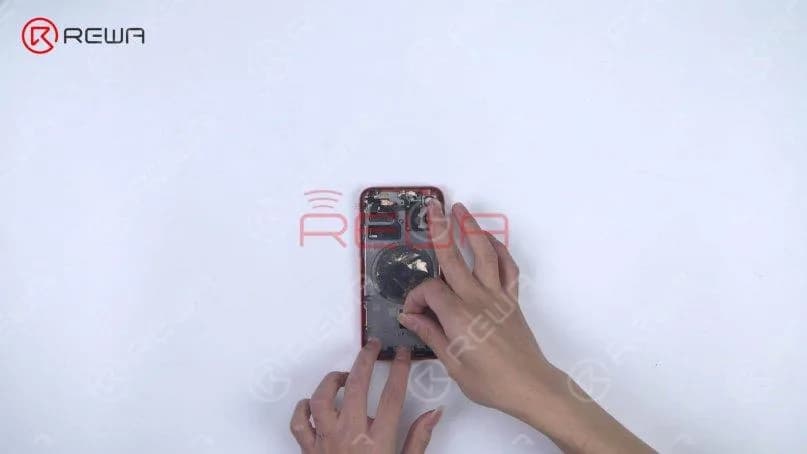

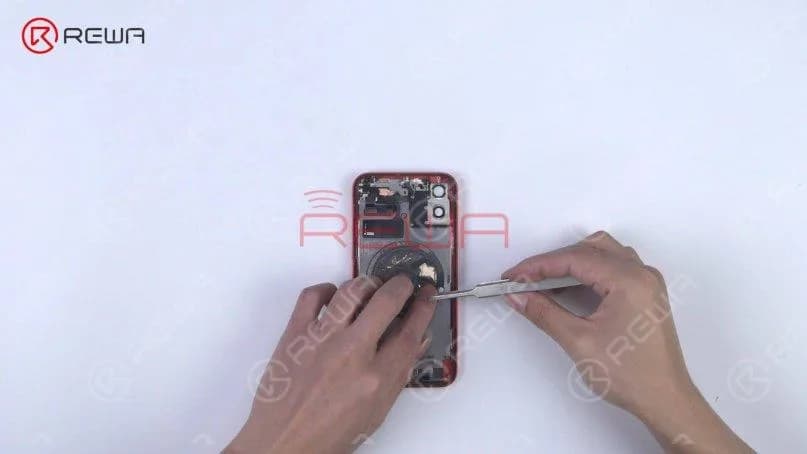

Stick the magnet that we accidentally cut out back on and glue the alignment magnet.
Last but not least, assemble the phone and test the MagSafe function. The MagSafe function is normal.
Conclusion
In conclusion, MagSafe is added to the iPhone 12 series, which makes it harder to refurbish the back glass. Since the magnets are glued to the back glass, we need to detach the magnets before removing the back glass. Therefore, the iPhone 12 series currently don’t support the back glass separating without disassembling.Follow the guidance below to make the iPhone 12 back glass fix right. Disassemble the phone and remove the wireless charging coil. After that, scan the back glass with laser except for the camera area. Then we remove the magnet array and the back glass. Put on the new back glass with enlarged camera holes. Stick the magnet array and shield to the new back glass. The success rate of the foregoing method is higher. But the method can be not only demanding but also has a high requirement for the technician. REWA LAB will continuously make a painstaking effort to seek the best iPhone 12 back glass refurbishing solution and even the back glass separating without disassembling. Please stay tuned.
Laser Marking Machine and Fume Extractor are mainly used to refurbish the iPhone 12 back glass. You can buy them on REWA online shop. Watch the full video below to get a detailed iPhone 12 back glass fix demonstration.
