iPhone 12 Pro Boot Failure After Drop – Data Recovery & Logic Board Repair Guide

Have you experienced boot failure after dropping the iPhone 12 Pro? Drop damage is one of the most common causes of boot failure in smartphones. In this repair guide, we’ll walk you through the complete process of reviving a severely damaged iPhone 12 Pro that won’t boot due to a fractured double-layer motherboard. Moreover, we’ll show you how to recover lost data by swapping encrypted chips onto a donor board, such as irreplaceable photos. Whether you’re a professional repair technician or a DIY enthusiast, this article provides a deep look into advanced logic board repair methods.

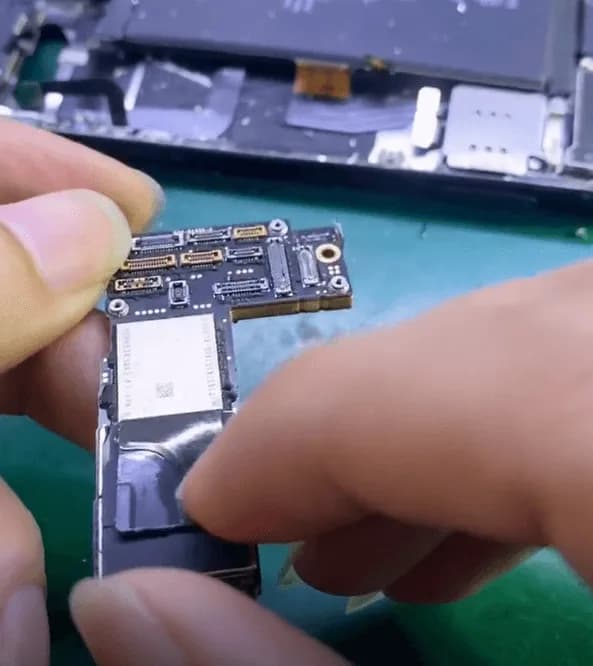

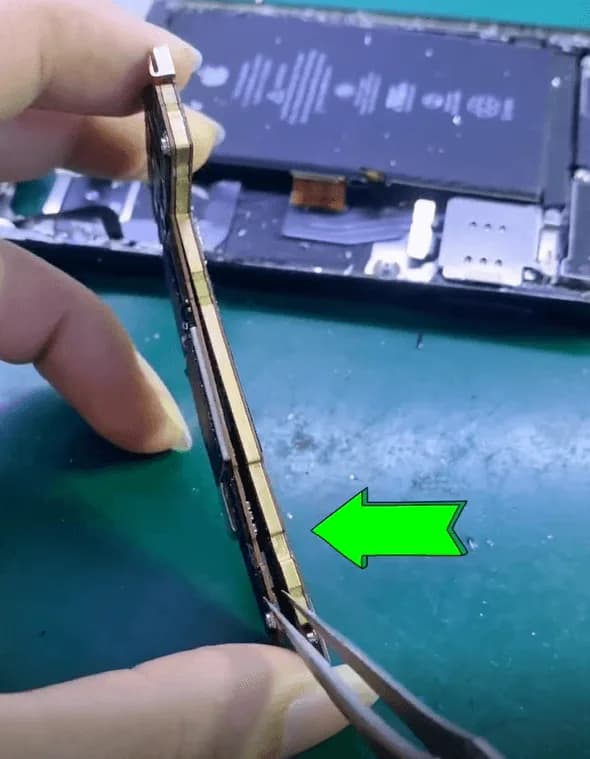

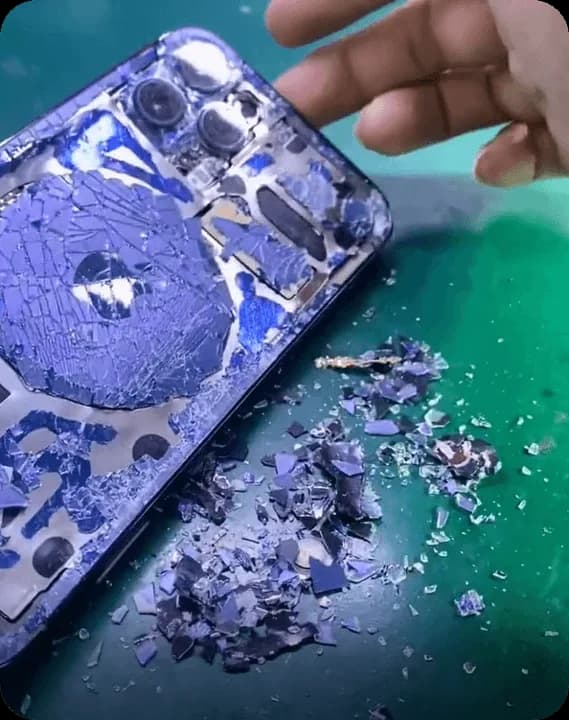

Damage Inspection:

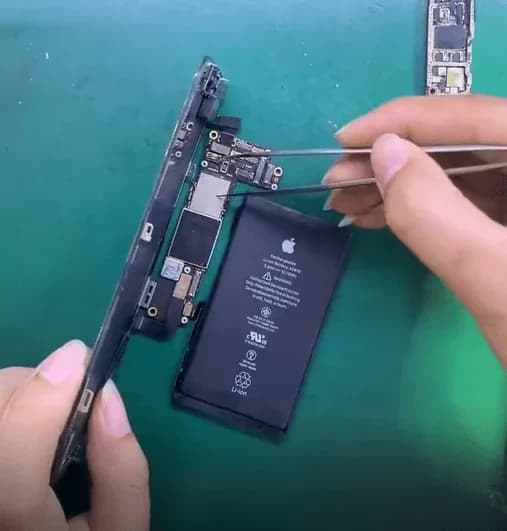

Initial Diagnosis:

Chip Condition Check:

Chip Swapping Process for Data Recovery:

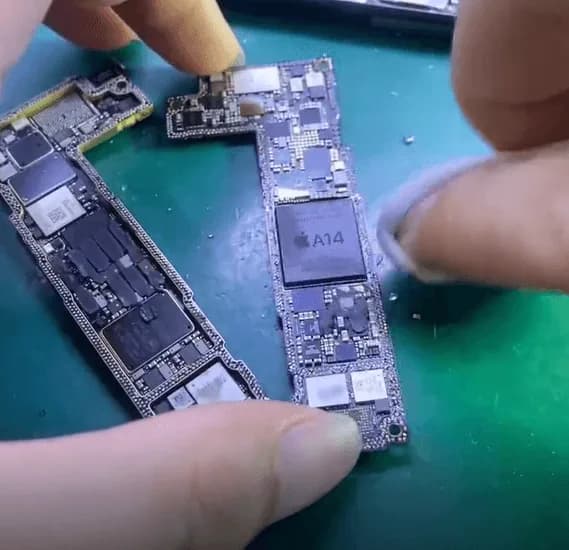

Considering that the board inside the rails is cracked and broken, the data recovery can be accomplished by swapping out the encrypted chip for a different one.

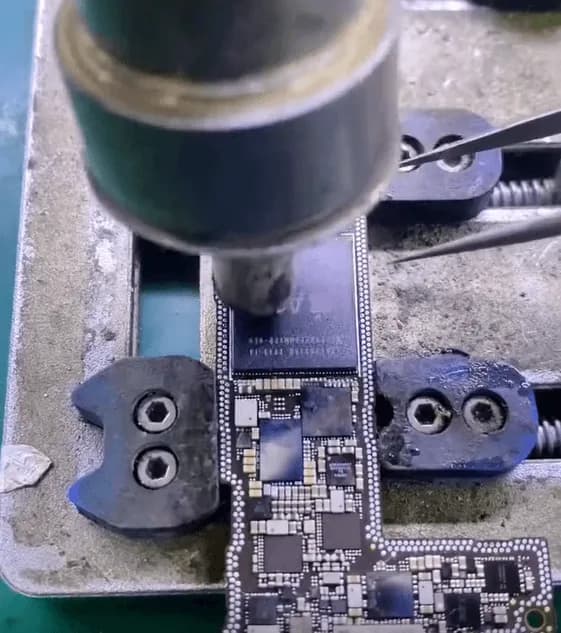

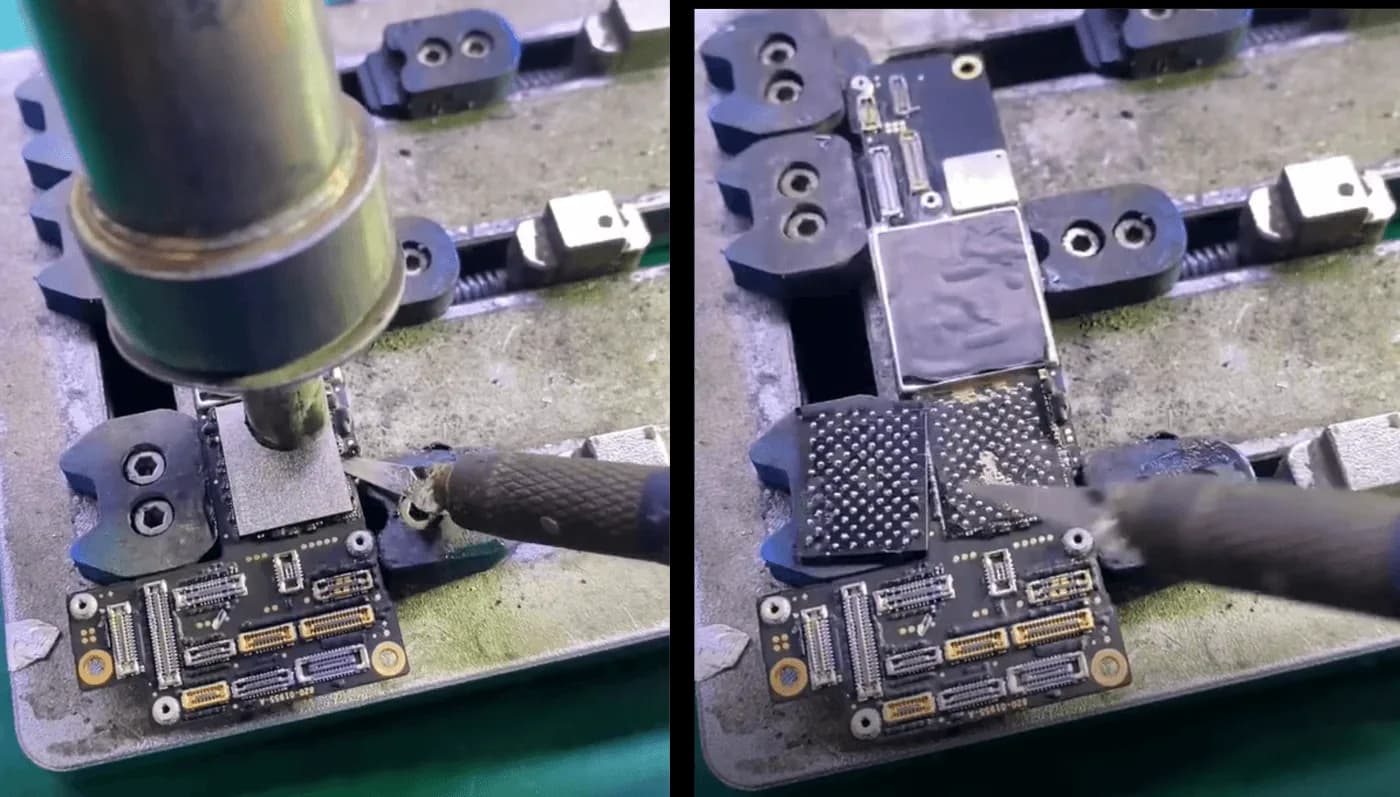

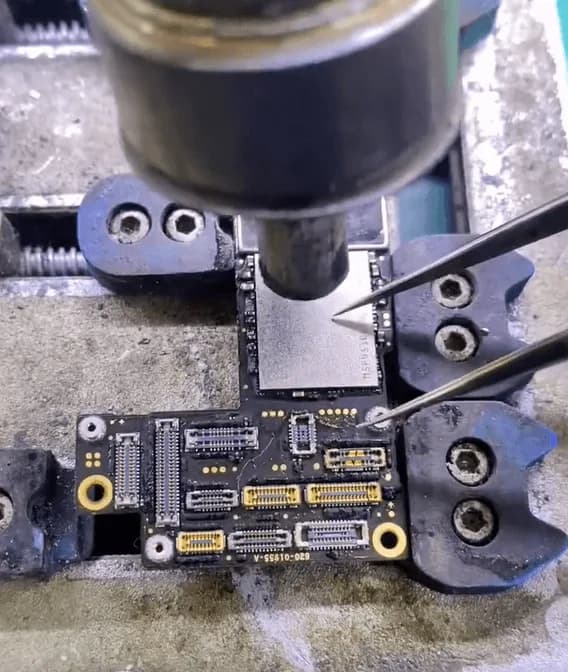

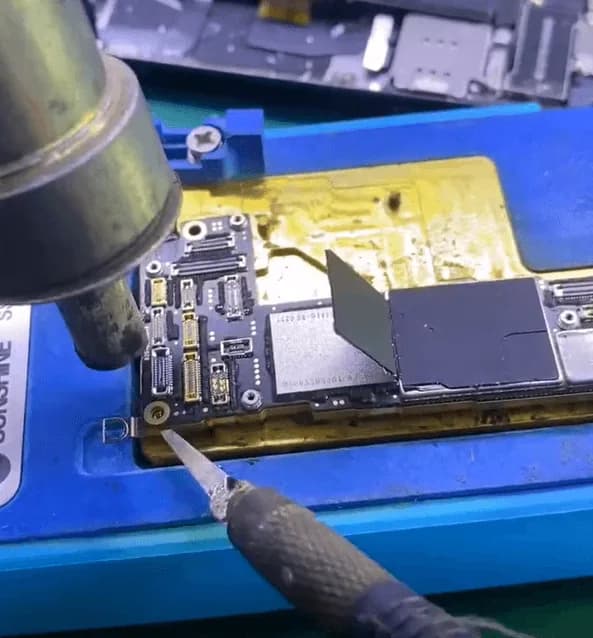

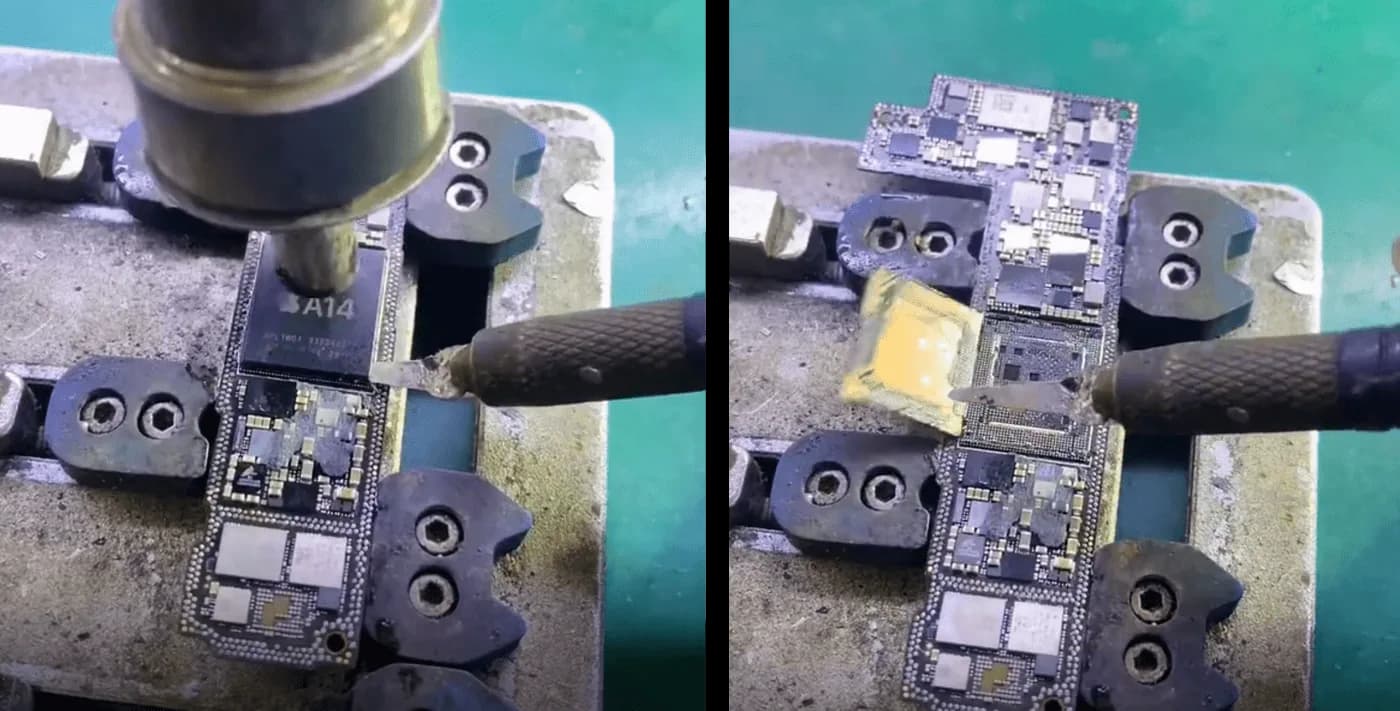

The first step is to carefully remove the NAND chip and CPU.

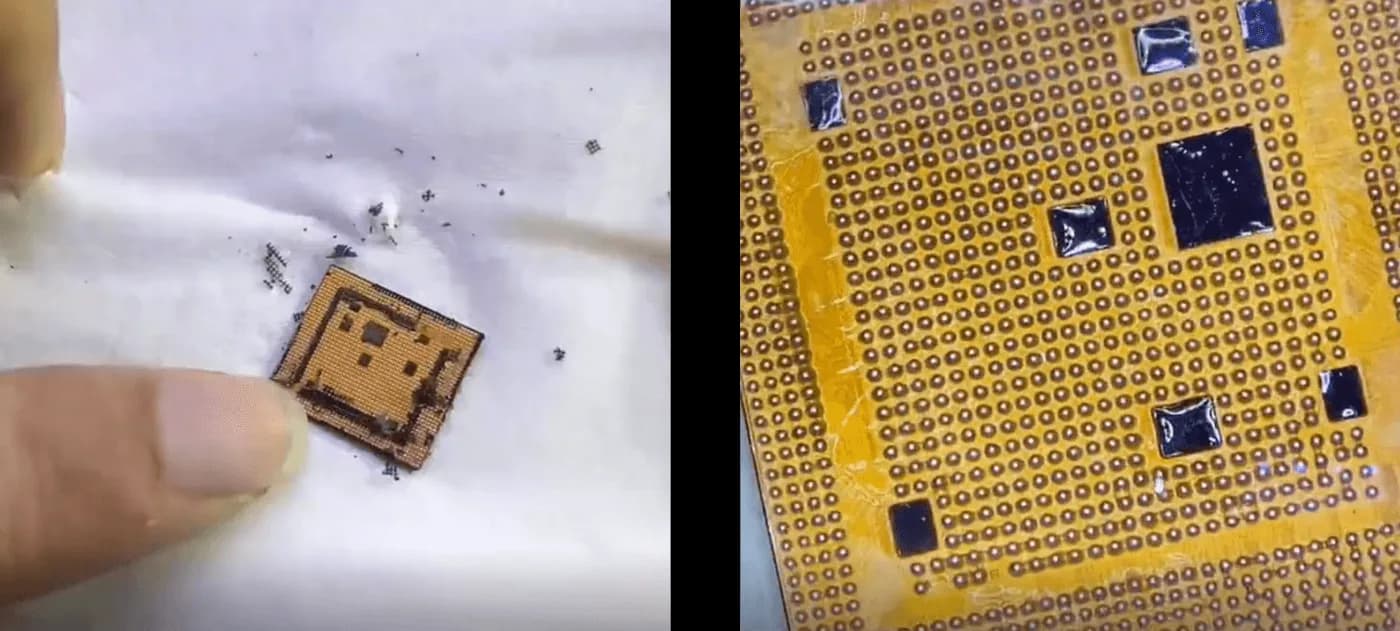

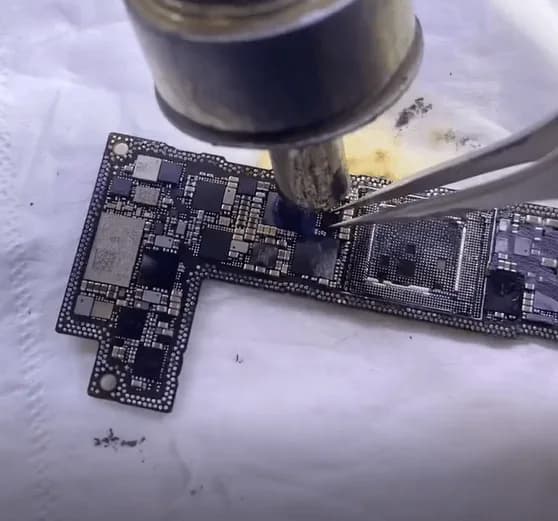

Remove the glue from the CPU pads, then clean them and reball them

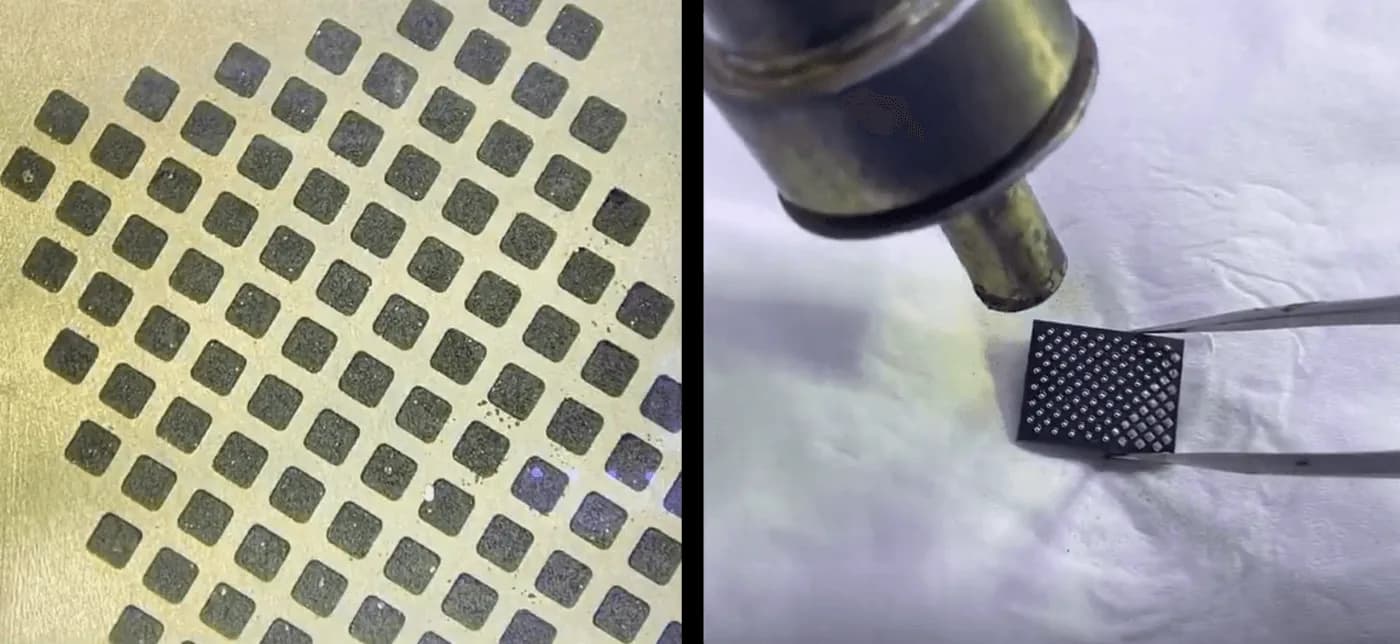

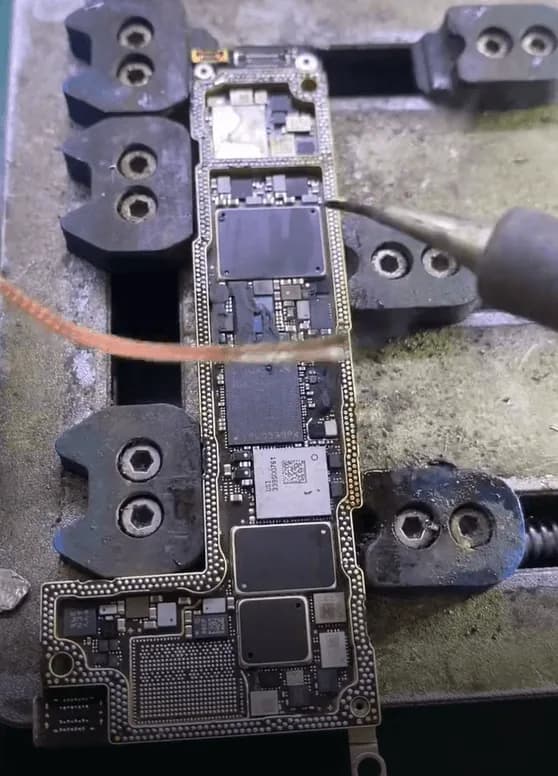

Also, clean the pads on the NAND chip and reball it using the stencil, solder paste, and hot air gun.

We have now prepared the two most important chips.

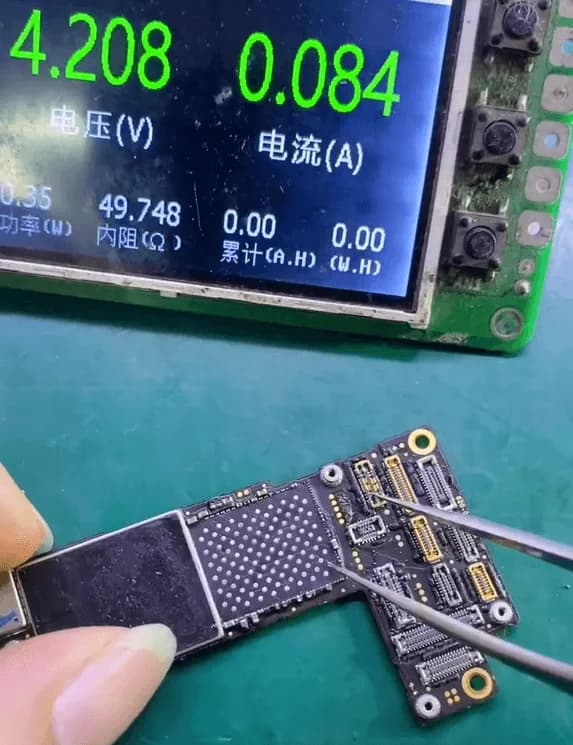

Trigger Current Test:

NAND Installation & Boot Test:

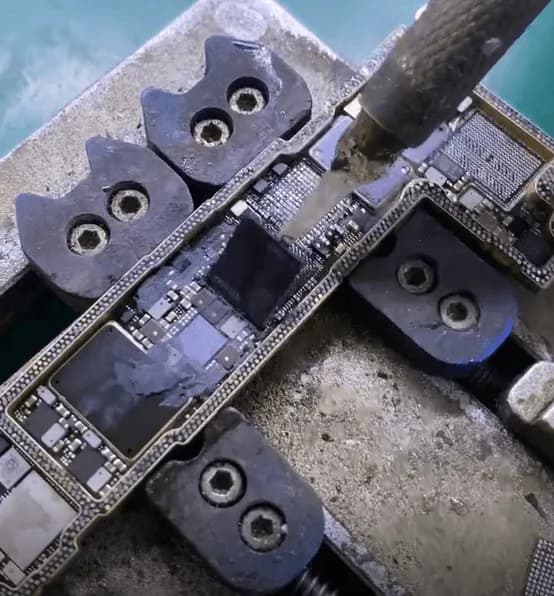

Signal Board Repairs:

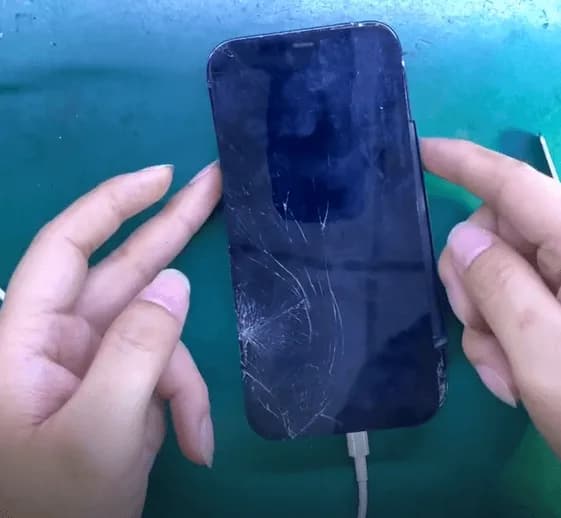

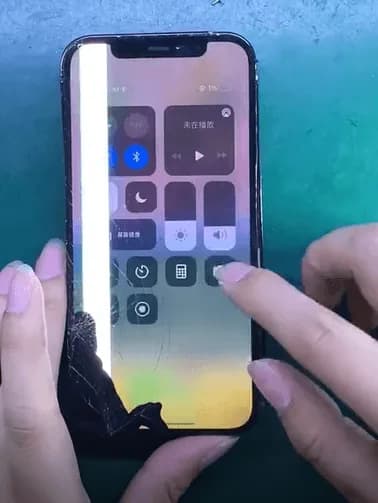

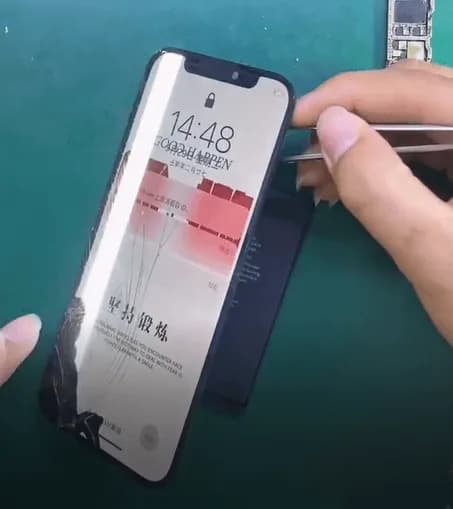

Final Testing:

After reassembling the iPhone 12 Pro:

Tools & Parts Used:

Tools:

• Hot air gun
• Heating platform
• Soldering iron
• Stencil for reballing
• Solder paste
• Tweezers
• Microscope
• Flux
• Logic board holder
• Cleaning solution (e.g., isopropyl alcohol)

Parts:

• iPhone 12 Pro motherboard
• Replacement screen
• Dock flex cable (if damaged)
• Thermal pads (if needed)

Technical Terms:

• Double-layer motherboard: The iPhone 12 Pro’s logic board consists of two layers soldered together, one handling signal processing (logic layer) and the other handling power and RF signals (baseband layer).
• NAND chip: The flash storage chip that contains user data such as photos and apps.
• CPU (Central Processing Unit): The phone’s main processing chip. In iPhones, it contains encrypted data tied to the NAND.
• Reballing: A process where you apply new solder balls to a chip to allow it to be soldered onto another board.
• DFU Mode (Device Firmware Update): A recovery mode that allows communication between the phone and a computer even when the phone isn’t booting normally.
• Baseband CPU: Controls cellular communication. It must be matched and reballed if swapped.

Conclusion:

Physical damage doesn’t always mean the end for your iPhone 12 Pro—especially if important data is at stake. With advanced microsoldering skills and the right tools, it’s possible to swap critical encrypted chips like the CPU and NAND onto a new motherboard, recovering full functionality and preserving user data. For professionals and skilled DIYers, this repair highlights the importance of precision, patience, and a strong understanding of iPhone logic board architecture.
