ITThe iPhone 13 Pro Max is renowned for its robust performance and advanced features. However, physical damage, such as a serious drop, can compromise its connectivity, leading to issues like no cellular signal and weak Wi-Fi reception. While official repair centers may suggest expensive motherboard replacements, a thorough troubleshooting and repair approach can often resolve these problems without breaking the bank. This guide is tailored for repair technicians, DIY enthusiasts, and anyone looking to restore their iPhone 13 Pro Max’s connectivity efficiently.
Device Details:

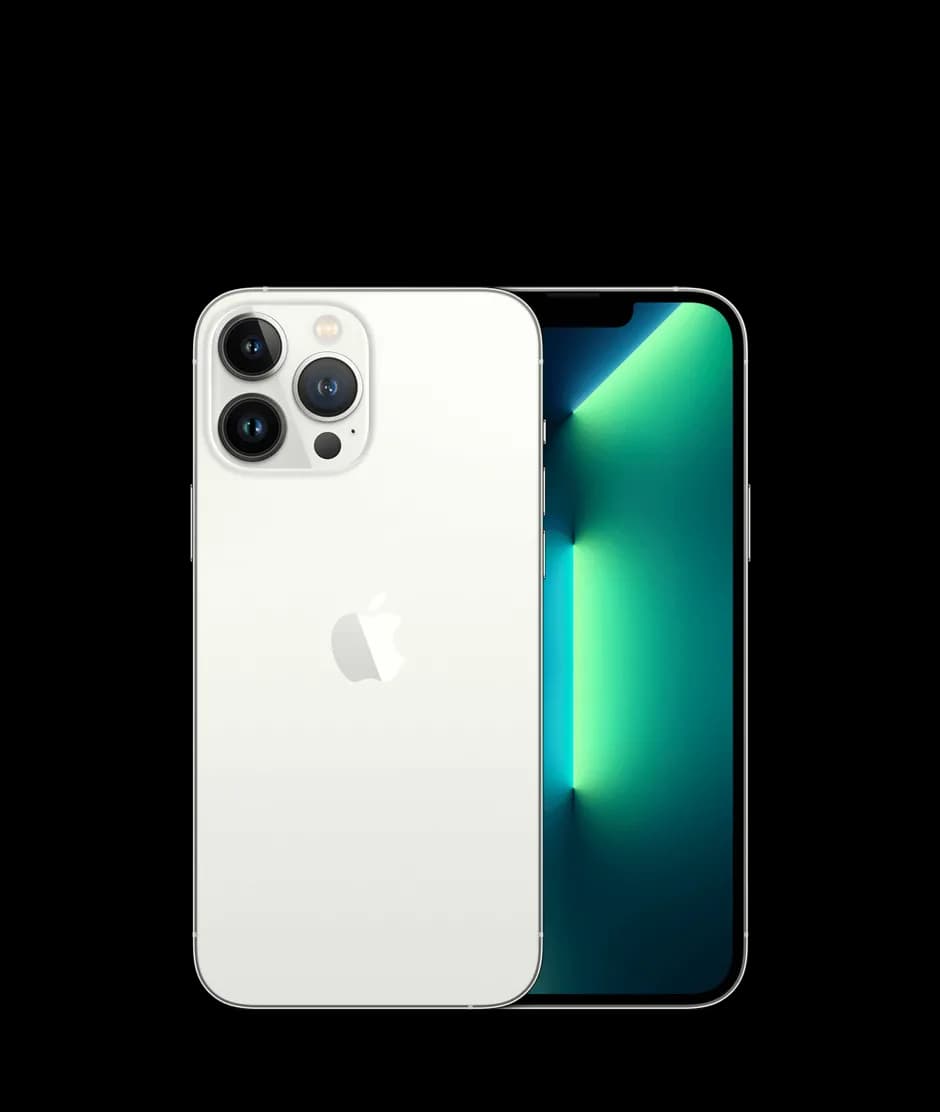

Model: iPhone 13 Pro Max
Announced: 2021, September 14
Defect Phenomenon
A client presented his iPhone 13 Pro Max, which had been severely drop-damaged. Post-drop, the device exhibited two primary issues:

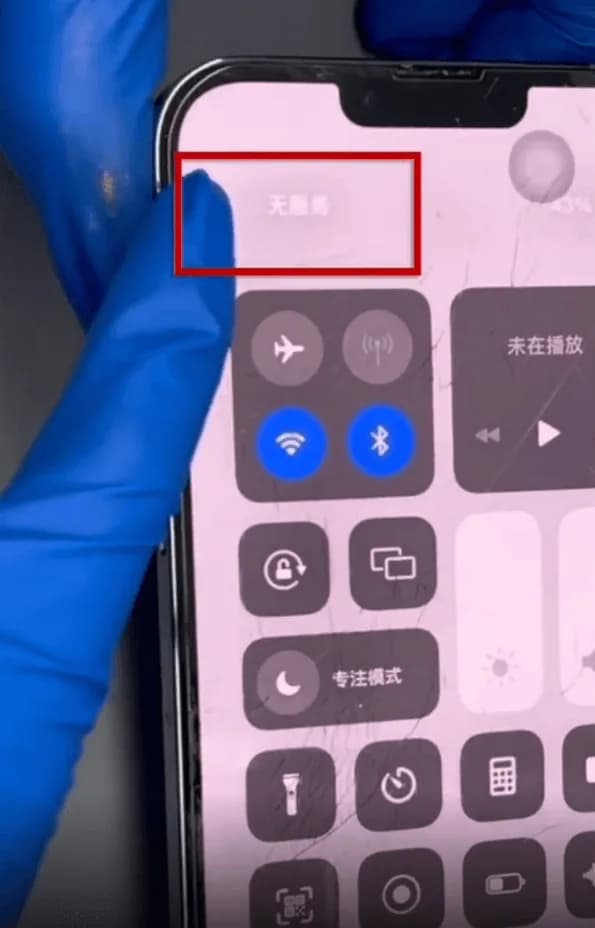

- No Cellular Signal: The carrier could not connect, displaying “No Service” in the top left corner.
- Weak Wi-Fi Signal: The Wi-Fi signal strength was minimal, only a few bars visible.
An official repair center diagnosed the motherboard as damaged, recommending a replacement costing around $600. However, a closer inspection revealed additional insights that could lead to a more affordable repair solution.
Troubleshooting the Connectivity Issues
1: Initial Cosmetic Inspection

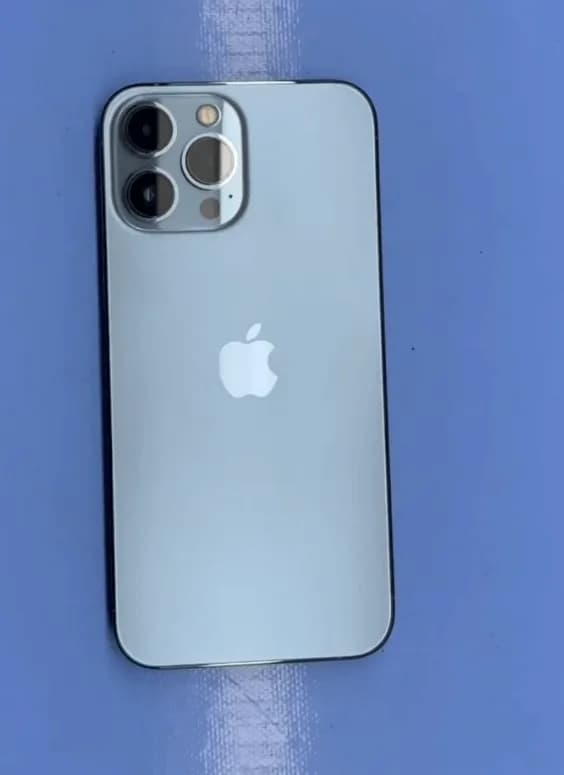

- Examine the exterior of the phone for visible damage.

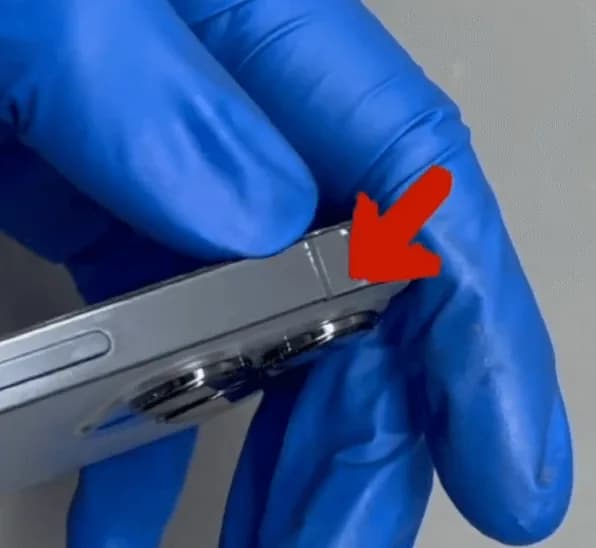

- Notice that the antenna on the housing is damaged, indicating severe drop impact.
2: Functionality Check
- Insert the SIM card and observe the “No Service” message.
- Check the Cellular option, which displays an “Error.”

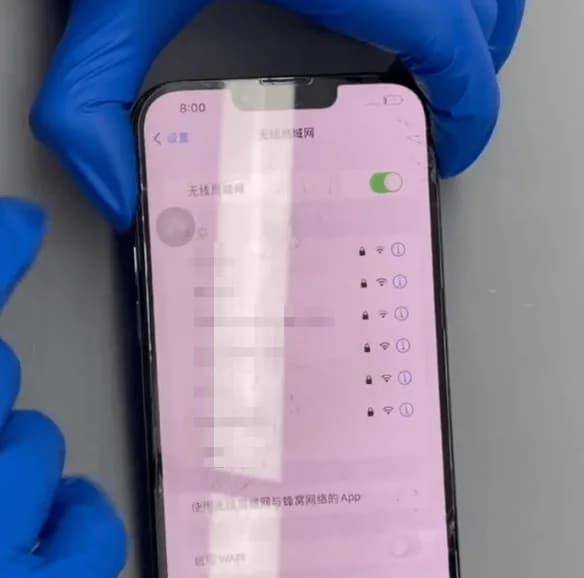

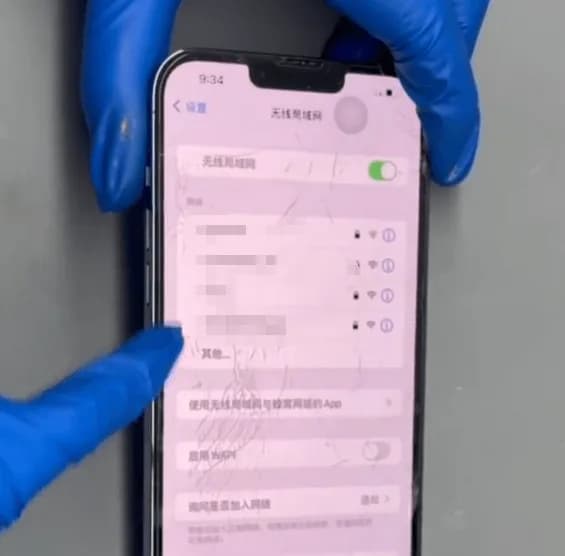

- Assess Wi-Fi connectivity, noting only four signal bars are received.
3: Disassembling the Phone
- Heating: Place the phone on a heating pad to soften adhesives.

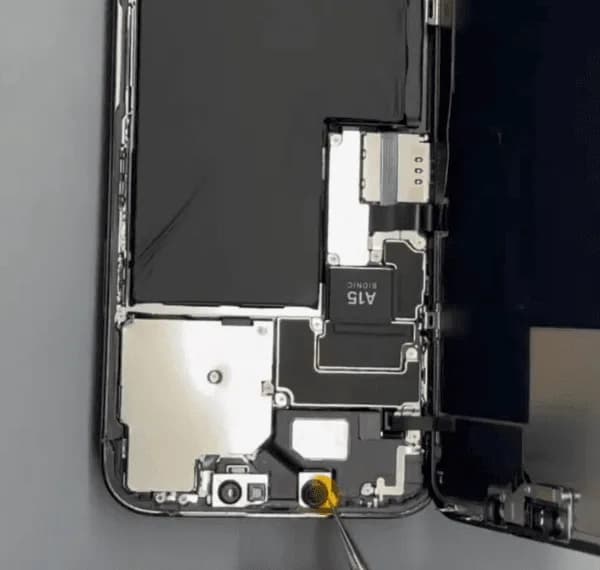

- Separation: Carefully separate the motherboard from the housing.
- Inspection: Discover that the inner components are clean, suggesting no prior repairs. However, the motherboard is slightly deformed, and the shielding cover is also damaged.
4: Detailed Motherboard Examination

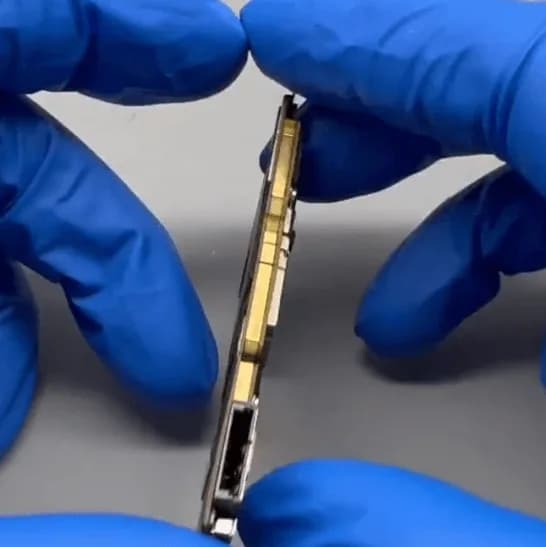

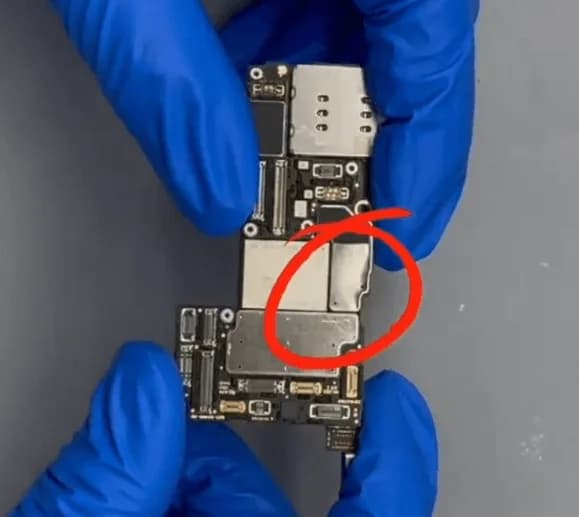

- Deformation: Identify deformation in the motherboard and shielding cover.
- Connector Cleaning: Remove foam around the connectors and stickers for a clear view.

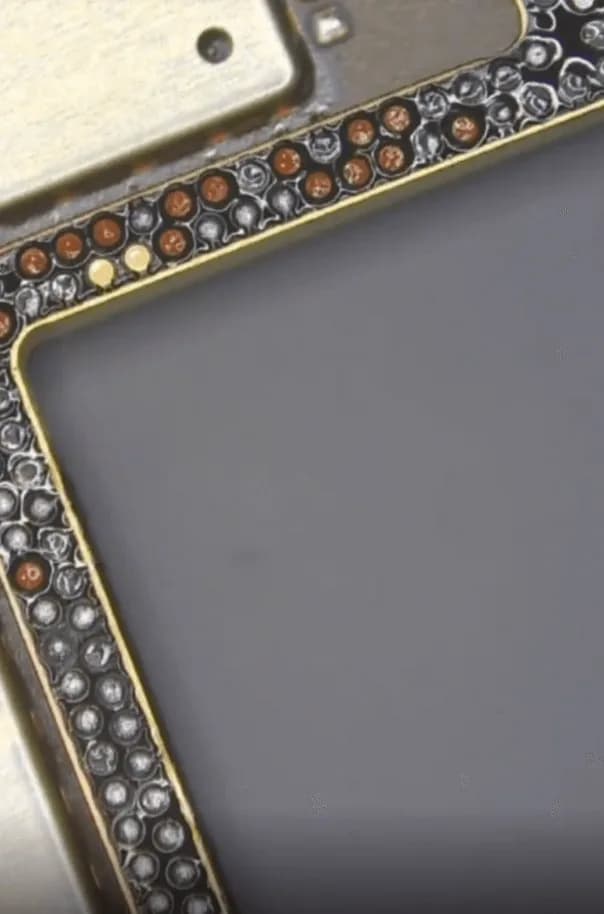

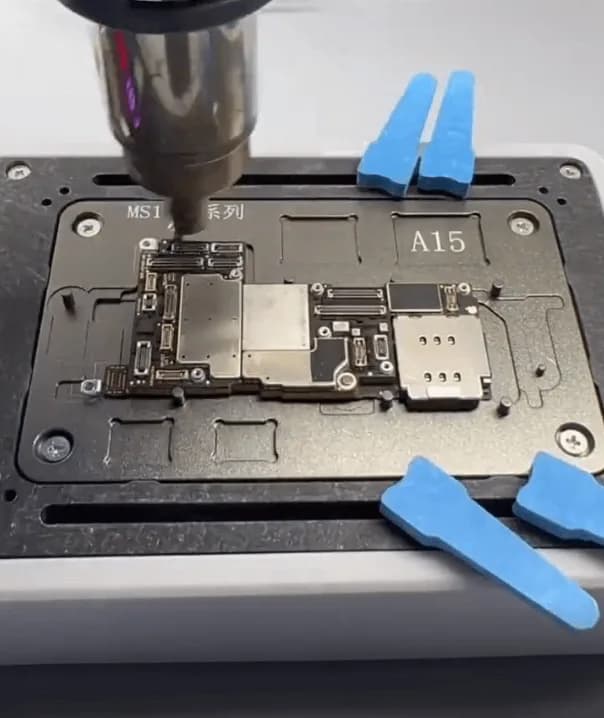

- Layer Separation: Use a heating platform and hot air gun to separate the motherboard layers swiftly, revealing missing pads in the middle layer.
5: Identifying the Root Cause
- The missing pads on the motherboard are the primary reasons for the no signal and weak Wi-Fi issues.
Repair Process
1: Preparing for Repair
- Protective Measures: Apply protective stickers over the cameras to prevent damage during repair.
- Cleaning: Use PCB cleaner to thoroughly clean the motherboard, removing any debris and residual flux.
2: Fixing the Missing Pads

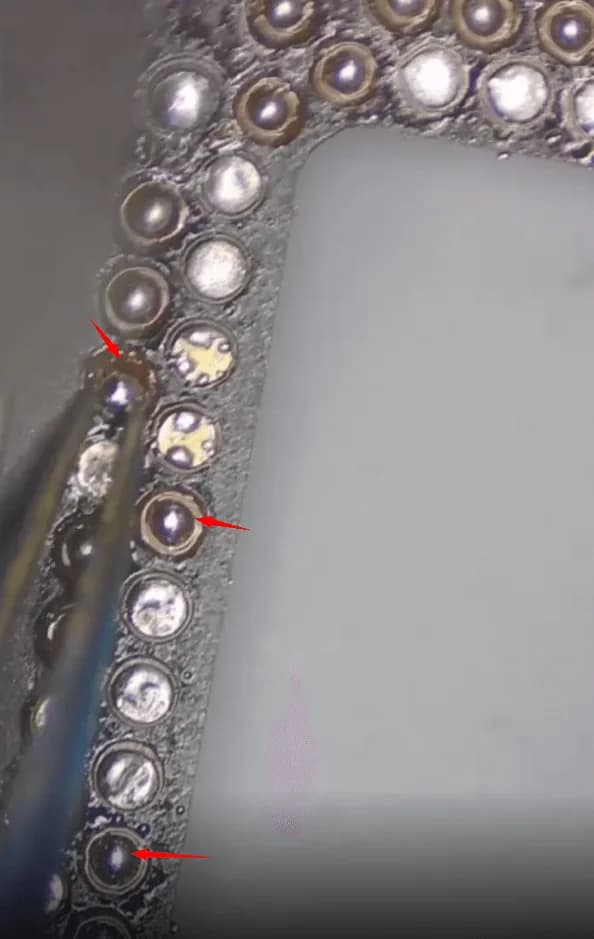

- Scratch Removal: Gently scratch out the roots of the missing pads on the PCB to prepare for new connections.
- Applying Solder Paste: Apply solder paste and tin paste to form new pads where needed.
- Soldering Lugs: Attach soldering lugs to complete the PCB pads, ensuring robust connections.
3: Resoldering the Pads

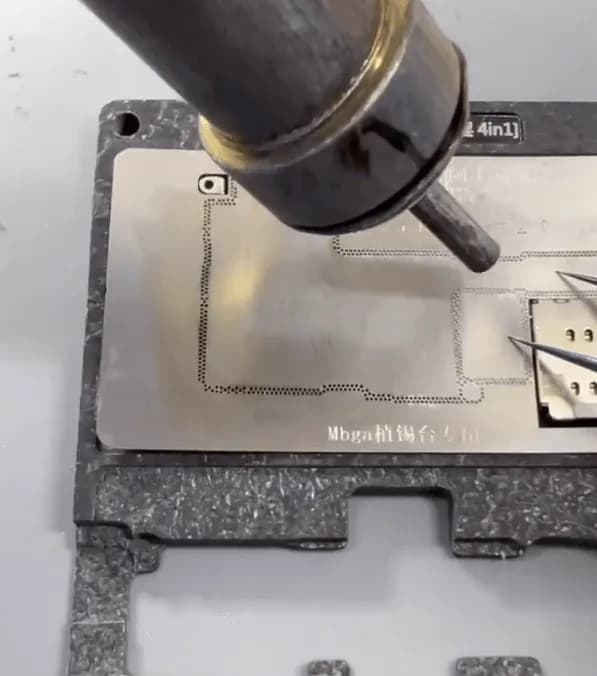

- Use a stencil and a hot air gun to resolder the newly formed pads, ensuring precise and secure solder joints.
4: Recombining the Motherboard Layers
- Place the separated layers back together on the heating platform.
- Apply controlled heat to ensure the layers fuse correctly without damaging the components.
5: Final Assembly and Testing
- Reassembly: Once the motherboard has cooled, reassemble the phone carefully.
- Boot-Up Test: Power on the device using a DC power supply.
- Initial Boot: The “No SIM card” message appears, indicating that the Baseband function is now operational.
- Wi-Fi Test: Activate Wi-Fi to check for improved signal strength, ensuring multiple bars are now visible.
Tips for Successful Repairs
- Maintain Cleanliness: Always keep the motherboard and internal components clean. Residual glue and solder paste can impede functionality and complicate repairs.
- Use Quality Materials: Employ high-quality solder paste, tin paste, and soldering tools to ensure durable and reliable connections.
- Protect Sensitive Components: Cover cameras and other sensitive parts with stickers during repair to prevent accidental damage.
- Precision is Key: When fixing missing pads, ensure meticulous application of solder paste and accurate placement of soldering lugs to avoid further issues.
- Reassemble Carefully: Ensure that all layers of the motherboard are correctly aligned and securely fastened to restore full functionality.
Conclusion
Repairing the iPhone 13 Pro Max no signal and weak Wi-Fi issues doesn’t always necessitate an expensive motherboard replacement. By meticulously inspecting the device, identifying missing pads, and performing precise soldering repairs, technicians and DIY enthusiasts can restore the phone’s connectivity effectively and affordably. This guide underscores the importance of attention to detail, quality materials, and proper repair techniques in achieving successful outcomes.
If you’re encountering similar connectivity problems with your iPhone 13 Pro Max or have questions about the repair process, feel free to reach out or leave a comment below!
