Tips For iPhone 7 No Service Issue Troubleshooting

Apple announced its iPhone 7 Repair Program for “No Service” Issues last year. And REWA repair technicians have confirmed that the No Service problem is caused by a PCB defect. The general repair thought is to find out the faulty component by ruling out possible causes one by one. However, an experienced repair technician confirms the version of the logic board at the very beginning. Therefore, the faulty component can be located quickly and the repair time saved.

iPhone 7 No Service is mainly caused by two reasons. The baseband PMU has been pseudo soldered. Or, the baseband CPU has shorted. For pseudo soldering problem, we can fix it by re-soldering the baseband PMU. As for the shorted problem, since the baseband CPU cannot be replaced alone, we need to replace CPU, baseband CPU, and baseband PMU at the same time or directly replace the logic board.

Follow our iPhone 7 No Service due to the shorted baseband CPU repair case today and learn how to locate the faulty component quickly by analyzing the fault at the very beginning to save your time.

Hold the power button to turn on the phone. We can see that the serial number displays normally on the screen while there is no IMEI number on the screen. The phone shows a No Service error in the upper-left corner. Judging by this, the baseband circuit has malfunctioned. Next, we will show you two different repair thoughts on this issue.

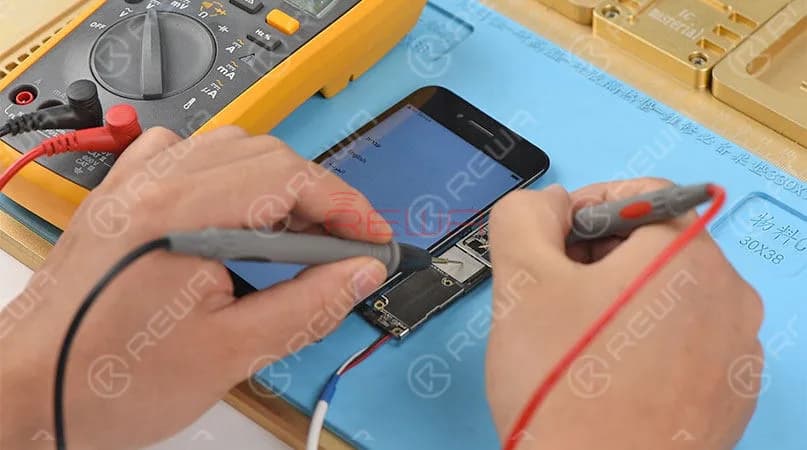

The traditional thought is to measure the power supply of baseband PMU first to locate the defect – faulty area. There is no voltage value measured on C5630 and C5730. Which indicates that the power supply of baseband PMU is abnormal. Continue to run diode mode measurement of C5630 and C5703. The result states that C5630 and C5703 have shorted to ground.

AS the circuit related to C5630 and C5703 consists of the baseband PMU, the baseband CPU and multiple filter capacitors. To find out the faulty component, we need to rule out one by one.

Remove the baseband PMU. Run diode mode measurement of C5630 again and we find that C5630 has shorted to ground. Which indicates that the baseband PMU is not the faulty component. Continue to remove filter capacitors on the circuit with Hot Air Gun and run diode mode measurement of C5630’s bonding pad. The measured value indicates a shorted condition. So these filter capacitors also have nothing to do with the fault. Remove the baseband CPU and run diode mode measurement of the detached chip. The baseband CPU has shorted. Since the baseband CPU cannot be replaced once damaged, there is no need to proceed with the repair.

Costing technicians 35 minutes or so, steps above end up with an unrepairable result. Which is unworthy for a technician. So next we will introduce you with a new way to locate the defect within 2 minutes according to our REWA experienced technician. So next, we will introduce a new way, which is presented by REWA experienced technicians, to locate the faulty component within 2 minutes.

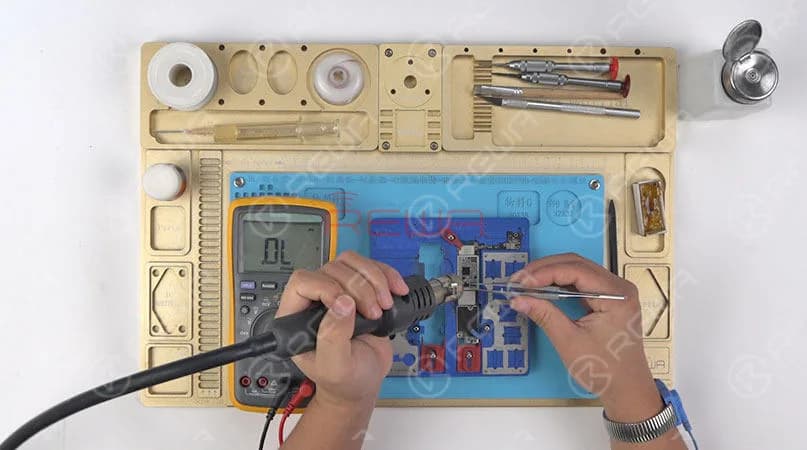

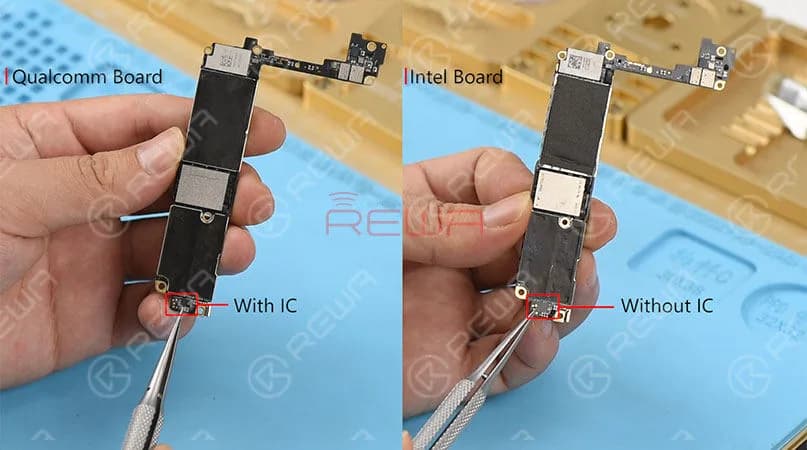

First, confirm the version of the logic board. This is a Qualcomm version logic board. Run diode mode measurement of C5630 or C5703, The measured value is 0, which indicates that the baseband CPU has shorted. In this case, there is no need to proceed with the repair.

Here is the question you may wonder about. “How do you know that the baseband CPU has shorted based on the measured value?” As we mentioned above, Apple announced its iPhone 7 repair program for “No Service” issue last year. And REWA repair technicians have confirmed that the No service problem is caused by a PCB defect. Due to the PCB design defect of iPhone 7 Qualcomm logic board, bonding pads of Pin 93 and Pin 98 of baseband PMU are easy to fall off. Which results in the abnormal voltage and large current folwing outputted from the baseband PMU to the baseband CPU. In this case, there is no need to proceed with the repair. You can just replace the logic board. For details, please visit:
